Summary of Contents for Motion Healthcare Elev8
- Page 1 U s e r M a n u a l...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Introduction Scope of use and notes Product Structure Technical Specifications Use instruction... -
Page 3: Introduction
Your safety is our utmost priority. Please read and follow all instructions in this owner’s manual carefully before operating your Elev8 portable mobility for the first time. For your own safety, it is crucial that you completely understand the instructions given in this owner’s manual. -
Page 4: Scope Of Use And Notes

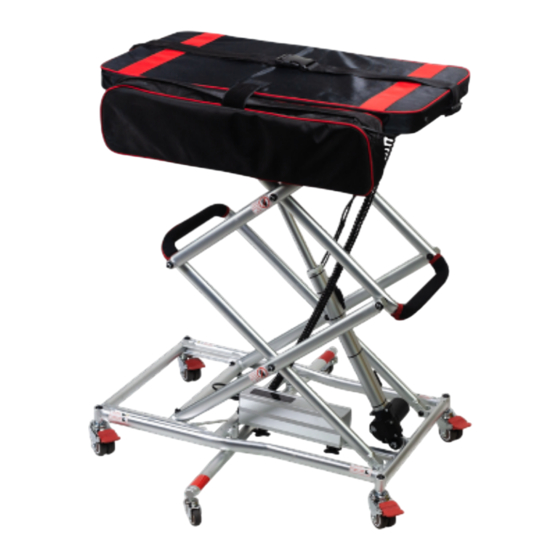

The Elev8 is an electric lifting platform with locking castor wheels. The platform can be moved up and down between 25cm to 90cm, lifting a maximum weight of 50kg. The Elev8 should be used on a flat surface with the a slope less than 3°. -
Page 5: Product Structure
Product Structure Tabletop Battery bag Protective Support Lift motor Brake Anti-tipping rod Lithium battery Castor Reference line Safety belt Fastening tape Power Plug Down Controller... -
Page 6: Technical Specifications
Technical Specifications SPECIFICATION MAXIMUM LIFTING CAPACITY 50 kg SIZE IFOLDED) 750mm x 480mm x 230mm SIZE (UNFOLDED) 750mm x 730mm x 910mm TOTAL WEIGHT (WITHOUT BATTERY) 10 kg TOTAL WEIGHT (WITH BATTERY) 11 kg MAXIMUM SLOPE 3° BATTERY SIZE MOTOR SIZE 29v 75w... -
Page 7: Use Instruction
Use Instruction 1. The following example is demonstrated using a Foldalite Powerchair. 1) Mounting Operation A1. Align yellow A2. Step on the A3.Untie the safety A4. The wheelchair is line on the tabletop brakes on four belt placed on the tabletope with the tyre, castors, and ensure in an inverted direction... - Page 8 Use Instruction A8. Move the A9. Step on the A10. Place the A11. Untie the safety belt platform to the brakes on four controller into side of the trunk, castors, and ensure the battery pack adjust the platform that the wheel cannot to prevent any height, as shown turn...
- Page 9 Use Instruction 1) Dismounting Operation B1. Take out the B4. Keep pressing B5. Adjust the B6. Step on the brakes controller and the Up button on position of the on four castors, and power plug from the controller, till the platform car, so ensure that the wheel the battery pack.
- Page 10 After the operation, the controller is placed into the battery pack, to avoid being broken or trampled. * If you have opted to purchase the dedicated Elev8 Battery and charger then please follow these instructions. External battery connection operation...
- Page 11 Use Instruction The lifting platform can also be powered by the battery of PL001 wheelchair. There is one changeover plug in the accessory, and proper plug can be chosen and inserted and then placed into the battery pack. Battery Installation Instructions of Boarding Device As shown in the figure.
- Page 12 Use Instruction Battery Installation Instructions of Boarding Device As shown in Figure B, connect one end of the charger to the battery and the other end to the charging plug. The red light on the charger indicates that it is charging and the green light indicates that it is fully charged.
