IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO
NOT ATTEMPT TO INSTALL OR OPERATE THIS PRODUCT
DESCRIPTION: The AF-4000HAT is a simple transmitter compatible with home automation systems to turn ON and OFF
a gas fire feature. The home automation system sends an ON command to close the dry contacts of the AF-4000HAT.
The transmitter receives the command then it sends a wireless RF signal to the gas fire feature to turn it ON. When the
home automation systems sends a command to turn OFF the AF-4000HAT transmitter sends a wireless RF signal to turn
OFF the gas fire feature.
Pool/Home
Automation
System
(Dry Contact Switch)
f i r e - p a r t s . c o m
Low Voltage
Wire

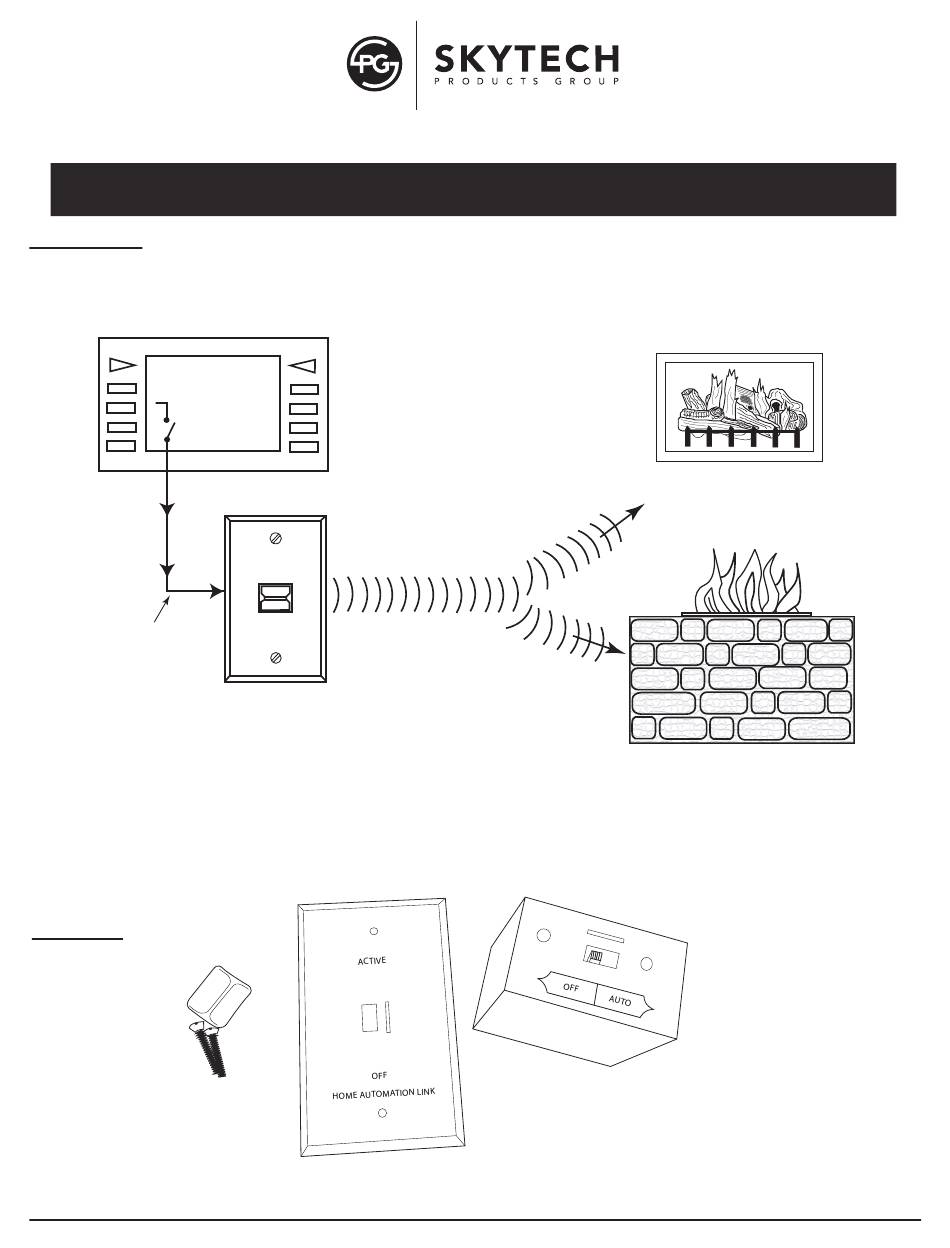

Fig. 1 Basic Operation of the AF-4000HAT System
This AF-4000HAT is designed to operate with the following Skytech Products Group control modules: AF-4000MOD-1,
AF-4000MOD## SERIES, VCS-4000MODTC, VCS-4000MODS01,VCS-4000S-1TC, AF-5000MOD-1, VCS-5000MODTC,
VCS-ECOMOD, VCS-ECOMODODS, VCS-ECOMODPVI.
Low voltage wire (not provided) from the Home Automation System must connect directly to the AF-4000HAT transmitter
and must be located within 20-feet of the control module.
CONTENTS
Skytech AF-4000HAT
Model: AF-4000HAT (Home Automation Transmitter)
ACTIVE
OFF
HOME AUTOMATION LINK
Wireless RF Signal
Fig. 2 Contents: (1) HAT transmitter, (1) Face plate (1) Bolt bag with screws
and slide button (4) AA Batteries (not shown)
Gas Logs / Gas Fireplace
Or
Outdoor Gas Fire Feature
REV. 3-8-16
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Skytech AF-4000HAT
Summary of Contents for Skytech AF-4000HAT
- Page 1 DESCRIPTION: The AF-4000HAT is a simple transmitter compatible with home automation systems to turn ON and OFF a gas fire feature. The home automation system sends an ON command to close the dry contacts of the AF-4000HAT. The transmitter receives the command then it sends a wireless RF signal to the gas fire feature to turn it ON. When the home automation systems sends a command to turn OFF the AF-4000HAT transmitter sends a wireless RF signal to turn OFF the gas fire feature.
- Page 2 Step 6: Install the transmitter into the junction box, attach slide button and installation is complete. See fig. 7. ACTIVE Transmitter Slide Button Transmitter Wall Cover Plate Plastic Switch Box Fig. 7. Installing transmitter into junction box. Skytech AF-4000HAT REV. 3-8-16 Page 2...
- Page 3 Fig. 10 Learn button on control module. IMPORTANT NOTE: The AF-4000HAT only controls ON/OFF of gas fire feature; not the Hi/Lo operation. The control modules can “learn” more than one transmitter, which may have Hi/Lo control allowing the use of a hand held transmitter in conjunction with the AF-40000HAT.
- Page 4 TROUBLESHOOTING If you encounter problems with your AF-4000HAT, the problem may be with either the fire feature or the home automation system. Review all installation manuals to ensure all connections are properly made. • Make sure the AA batteries are installed correctly and are fully charged.
