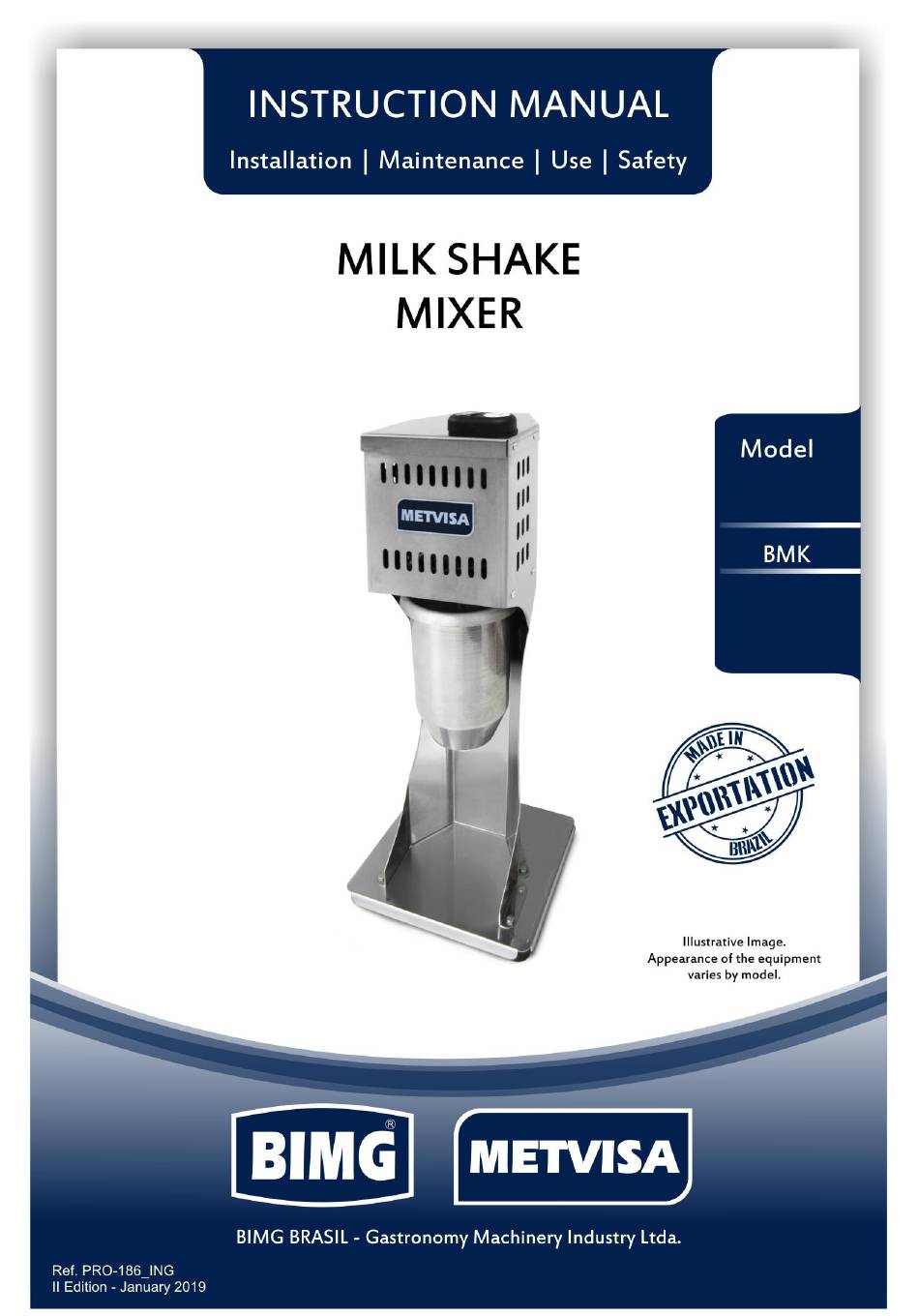

Summary of Contents for METVISA BMK Series
-
Page 2: Table Of Contents
INDEX Safety Information ....................3 General Instructions ......................3 Technical Specifications ..................4 Main Components ......................4 Technical Data ........................4 Installation ......................5 Device Layout ........................5 Device’s Use ......................6 Utility ..........................6 Commands ......................... 6 Operating Procedures ......................6 Cleaning and Maintenance .................. -
Page 3: Safety Information
1. Safety Information 1.1 General Instructions • There are care/precautions that should be observed when assembling, use, maintenance and discontinue using this device; • Before performing any operation (installation, use, maintenance and reuse after prolonged interruption in the use of the device), read the manual; •... -
Page 4: Technical Specifications
2. Technical Specifications 2.1 Main Components To the device described in this manual, safety in use, cleaning, maintenance and maximum hygiene are guaranteed by design and the special design of all parts, and also used stainless steel and other suitable materials for the contact with food. The device is designed with the following features: •... -
Page 5: Installation
WARNING! Features such as model, serial No. and electrical device voltage are indicated on the data label (figure below). Before installation check if device’s voltage is according to the electrical outlet . 3. Installation 3.1 Device Layout The connection to the Electrical Outlet and the arrangement for the operation must be performed by a qualified professional. -
Page 6: Device's Use
WARNING! The installation and the place where it will be set must comply with the rules of prevention of risk and safety at work (Regulatory Standard NR-12) . The manufacturer is not responsible for possible direct or indirect damages caused by the non-compliance of the said rules and other instructions in this manual . - Page 7 WARNING! Never turn on the device with the Cup out of position, it might cause accidents. • Operation: The device can be operated only after verify if the Cup is mounted on its support and if the device’s voltage is according to the power network. After verified this items, follow the device’s operating procedures: •...
-
Page 8: Procedures For Cleaning And Products To Be Used
WARNING! If the device cannot process the product or stops processing, reduce the quantity of food before insert it on the Cup and check if the ingredients sequence was attended: first liquid ingredients, then pastes and for last powdered food. Exceeding the necessary food processing time (average 1 minute), can prejudice the speed and performance of the motor and also the device’s life cycle. -
Page 9: Cleaning And Maintenance
Whenever you remove any safety item of the device (for example, during cleaning or maintenance), reset in place and confirm that is performing its function properly. To detect any malfunction or nonconformity, send your device to the nearest service. See list of technical assistancesee on our website: www.metvisa.com.br... -
Page 10: Annex
6. ANNEX Wiring Diagram... -
Page 11: Exploded Drawing
Exploded Drawing... -
Page 12: Spare Parts List
Spare Parts List Position Code Description Quantity CJT861 Structure Base CRC1122 Monobloc SUD060 Bottom Motor Support CRC1119 Sensor Drive Plate SBT429 Sensor Lever Support SBT430 Micro Switch Support CHE018 Micro Switch BCH029 Bottom Cushion MTE094 Electric Motor 110 V MTE095 Electric Motor 220 V BCH028 Top Cushion... - Page 13 Anotações...
- Page 14 Anotações...
