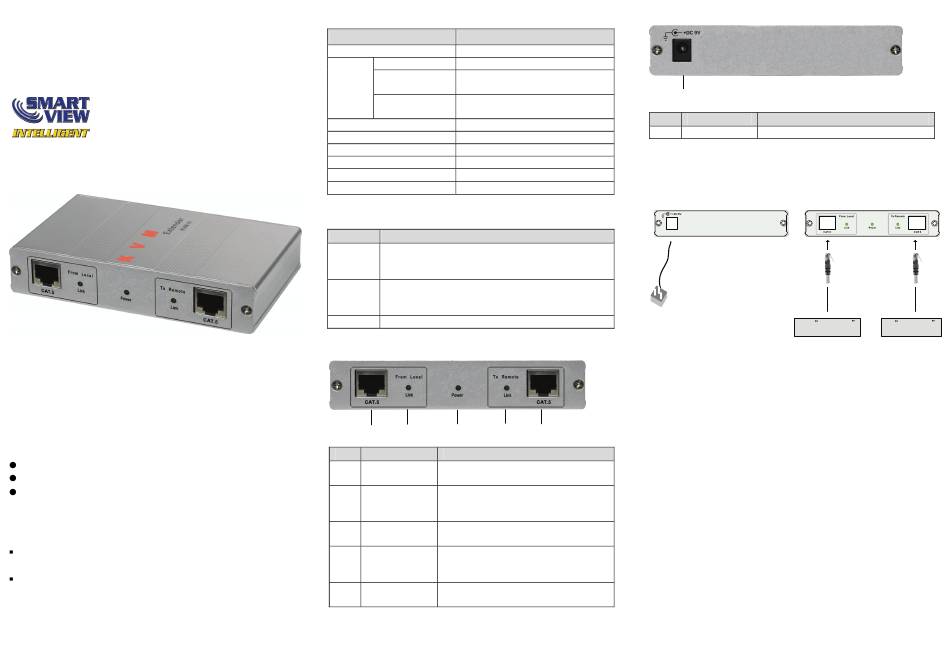

C&C TECHNIC Smart View Intelligent KVM-S1 User Manual

Kvm repeater

Advertisement

KVM
REPEATER
KVM-S1
USER MANUAL

Package Contents

KVM Repeater
User manual
Power adapter DC 9V/600mA
If any thing missed, please contact with your vendor.

Features

Provide KVM Extender extra transmission distance up
to 300 meter.
High VGA resolution up to 2048x1536.
-1-

Specifications

Function
RJ-45 Connector
LEDs
Video Resolution
Cable Distance
Power Adapter
Housing
Weight
Dimensions(LxWxH)

Hardware Requirements

1 x Highest resolution monitor.
Console
1 x PS/2 mouse.
1 x PS/2 keyboard.
1 x VGA, SVGA or Multisync card.
PC
1 x 6-pin mini-DIN (PS/2) mouse port.
1 x 6-pin mini-DIN (PS/2) keyboard port.
Cable
1 x 3-in-1 KVM cable or equivalent.
FRONT VIEW
V1.1
1
No
Component
x 1
CAT.5
1
x 1
Connector
x 1
2
Link LED
3
Power LED
4
Link LED
CAT.5
5
Connector
KVM-S1
2
Power
1
Link
1
(From Local)
Link
1
(To Remote)
2048×1536@60HZ
300 m (Max.)
DC 9V 600mA
Aluminum
235 g
130x83.5x29.5 mm
Required specifications
2
3
4
5
Description
Plugs the CAT5 cable into this
connector from Local.
On: Local and KVM-S1 links ok.
Off: Local and KVM-S1 links fail.
Flash: when local user is using.
On: power on.
Off: power off.
On: Remote and KVM-S1 links ok.
Off: Remote and KVM-S1 links fail.
Flash: when remote user is using.
Plugs the CAT5 cable into this
connector to Remote.
-2-
REAR VIEW
1
No
Component
Description
1
Power Jack
The power adaptor plugs here.

Installation

KVM-S1
Rear View
DC 9V
600mA
Adaptor
from
KVM-L-PRO
(Local)
1. Power on KVM-S1.
2. Connect CAT5 cable to Local.
3. Check the LED status of "From Local", on is link ok, off
is link fail.
4. Connect CAT5 cable to Remote.
5. Check the LED status of "To Remote", on is link ok, off
is link fail.
-3-
Front View
to
KVM-R-PRO
(Remote)
