Power Sentry Field Install

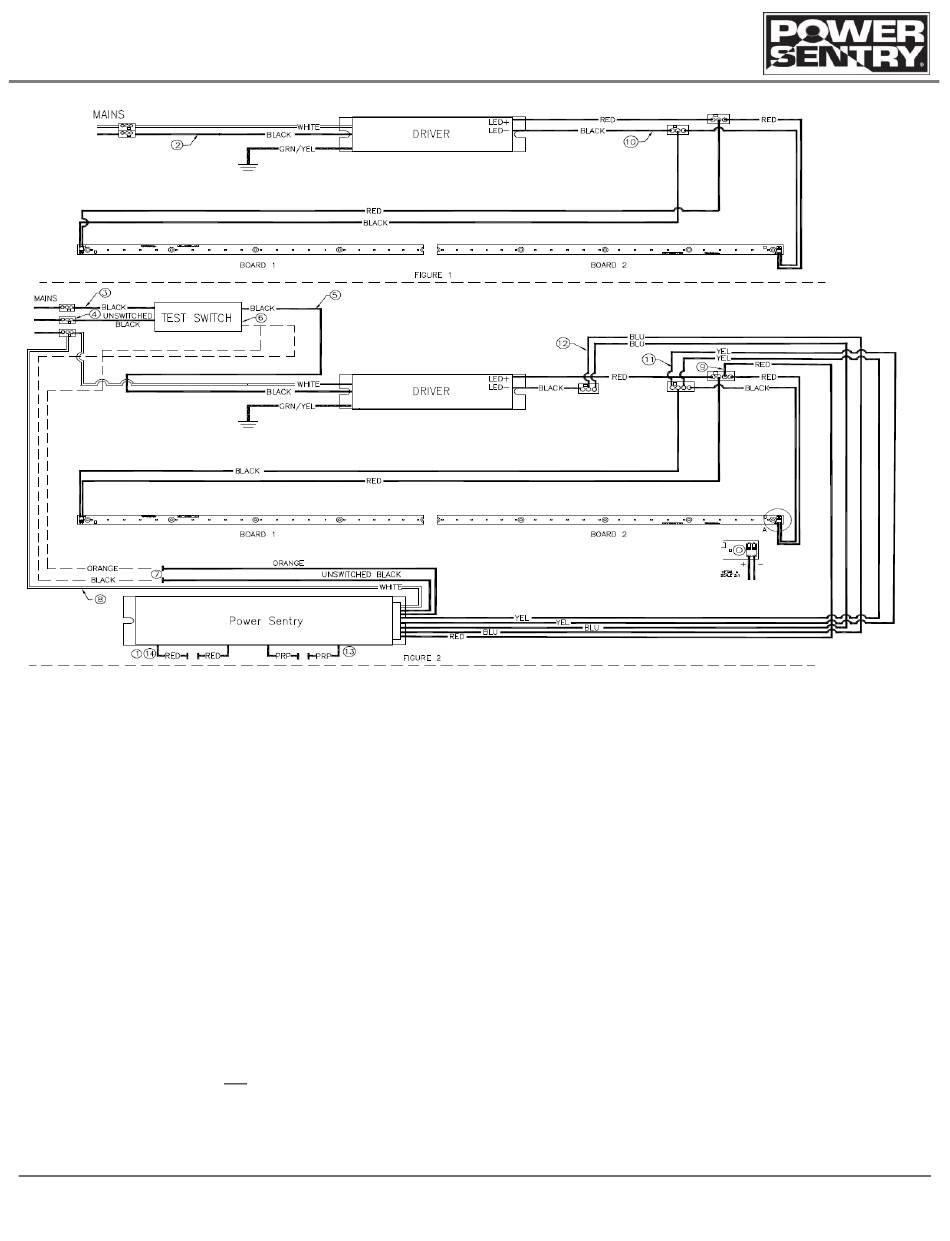

Wiring Diagram & Instructions - PS30250 Two Boards in Parallel

Field Install Instructions *

1. Disconnect Battery Enable connector (RED wires with mating connectors)

2. Disconnect Driver Line input from Mains

3. Connect Mains Line to Test Switch

4. Connect Un-switched Line to Test Switch (Line input to Power Sentry must be un-switched)

5. Connect Test Switch output (Mains Line) to Driver

6. Connect Test Switch output (Un-switched Line) to Power Sentry (BLACK for 120V, ORANGE for 277V)

7. Cap unused Power Sentry Un-switched Line input wire

8. Connect Mains Neutral to Power Sentry WHITE

9. Connect Power Sentry RED wire to wire nut with Driver LED (+) (in this example RED)

(An additional or larger wire nut may be required)

10. Remove Driver LED (-) wire from wire nut (in this example BLACK)

11. Connect Power Sentry YEL wires to wire nut with LED Board (-)

(An additional or larger wire nut may be required)

12. Connect Power Sentry BLU wires to wire nut with Driver LED (-) (in this example BLACK)

(An additional or larger wire nut may be required)

13. Ensure PURPLE wires are not connected

14. Connect Battery Enable connector (RED wires with mating connectors)

*SEE LAST PAGE FOR MOUNTING OPTIONS AND PLACEMENT

See appropriate Power Sentry Installation Instructions for applicable warnings and precautions
