Summary of Contents for CME Smart Charger Series

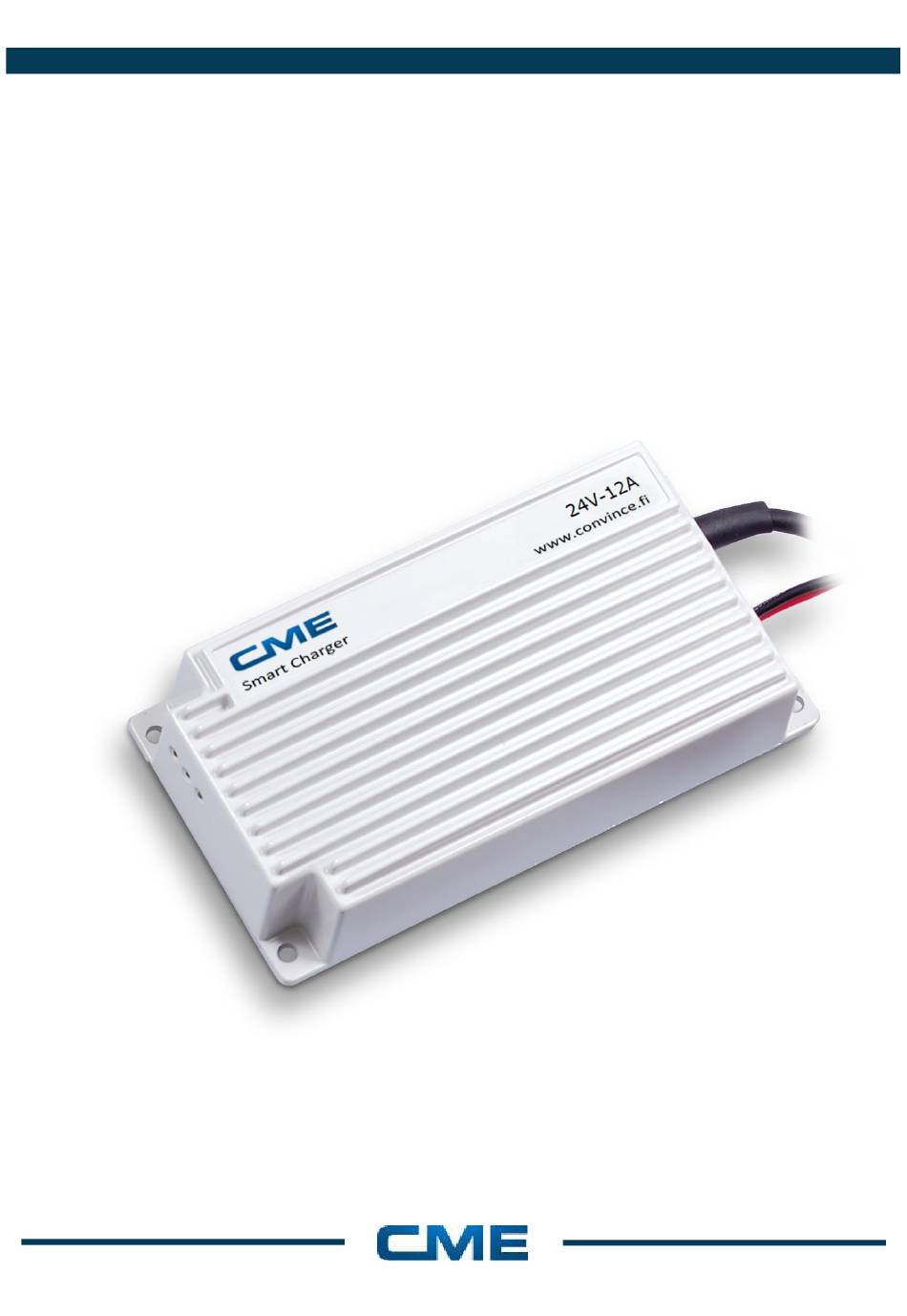

- Page 1 Smart Charger series 12V/17A – 24V/12A – 24V/8A 12V/30A – 24V/20A...
-
Page 2: Svensk Manual
SMART CHARGER SERIES 12/17 - 24/12 – 24/8 - 12/30 -24/20 MANUAL SVENSK MANUAL VIKTIG INFORMATION De tekniska uppgifter, information och illustrationer har noggrant sammanställts och motsvarar produktens status vid tidpunkten för tryckning. Tillverkaren förbehåller sig rätten att förbättra eller ändra i produkten, specifikationer och dokumentation när som helst utan ett föregående meddelande, förutsatt att det inte anses nödvändigt av... -
Page 3: Table Of Contents
SMART CHARGER SERIES 12/17 - 24/12 – 24/8 - 12/30 -24/20 MANUAL INNEHÅLL SVENSK MANUAL ................................1 VIKTIG INFORMATION ............................... 1 ANVÄNDARANVISNING ..............................3 Generellt ..................................3 Installation ..................................3 Funktion ..................................3 FELSÖKNING OCH SERVICE ............................... 4 LADDNINGSINDIKERING ..............................4 BATTERITYPER, CELLER &... -
Page 4: Användaranvisning
SMART CHARGER SERIES 12/17 - 24/12 – 24/8 - 12/30 -24/20 MANUAL ANVÄNDARANVISNING • Läs denna anvisning innan laddaren tas i bruk • Batteriladdning skall ske i ventilerat utrymme • Vid laddning, anslut först pluskablaget till batteriet, sen minuskablaget till chassit. Därefter ansluts laddaren till 230VAC •... -
Page 5: Felsökning Och Service
SMART CHARGER SERIES 12/17 - 24/12 – 24/8 - 12/30 -24/20 MANUAL FELSÖKNING OCH SERVICE Röd/Grön Förklaring Låg spänning i batteriet eller inget batteri tillkopplat Batteritemperatur överstiger 50 Tidsfel (timeout), batteriet är antagligen för stort för laddaren Kablarna är felaktigt anslutna till batteriet... -
Page 6: Batterityper, Celler & Rekommenderad Kapacitet
SMART CHARGER SERIES 12/17 - 24/12 – 24/8 - 12/30 -24/20 MANUAL BATTERITYPER, CELLER & REKOMMENDERAD KAPACITET LADDARE BATTERITYP CELLER REKOMENERAD KAPACITET Smart Charger 12/17 Bly-syra batterier 50-220Ah Smart Charger 24/12 Bly-syra batterier 40-200Ah Smart Charger 24/8 Bly-syra batterier 30-180Ah... - Page 7 SMART CHARGER SERIES 12/17 - 24/12 – 24/8 - 12/30 -24/20 MANUAL GEL/AGM BATTERIER TRAKTIONÄRA BATTERIER www.cmelux.fi CME-Lux Oy, Finlanaysoninkuja 9, FIN 33210 Tampere...
-
Page 8: Teknisk Specifikation
SMART CHARGER SERIES 12/17 - 24/12 – 24/8 - 12/30 -24/20 MANUAL TEKNISK SPECIFIKATION Dimensioner (L x W x H) 198 x 98 x 47 mm Vikt 1,7Kg Användningstemperatur – 25 C > +40 Ingående växelspänning 90-230VAC – 0-100Hz (begränsad effekt <200V) Volt/Ström alternativ... -
Page 9: Manual, English
Keep this manual near the product so that it can be referred to later. OBS! If nothing is mentioned, CME will always deliver the charger programmed for standard batteries. See charging curves at page. 10-11. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 10: User Manual
SMART CHARGER SERIES 12/17 - 24/12 – 24/8 - 12/30 -24/20 MANUAL USER MANUAL • Read this instruction before the charger is taken into use • Keep this manual within easy reach for the user of this battery charger •... -
Page 11: Trouble Shooting And Service
SMART CHARGER SERIES 12/17 - 24/12 – 24/8 - 12/30 -24/20 MANUAL TROUBLE SHOOTING AND SERVICE Röd/Grön Förklaring Low battery voltage or no battery connected Battery temperature > 50 Time error (timeout), the battery is probably to big for the charger... -
Page 12: Types, Cells & Rated Capacity
80-300Ah CHARGING CURVES The Smart Charger Charger is designed for charging open- and valve-regulated batteries of different sizes. If CME AB is informed of the battery capacity and type the charger is delivered correctly programmed. The charger is always delivered programmed for standard batteries if nothing else is mentioned to CME! STANDARD BATTERIES (STD) www.cmelux.fi... - Page 13 SMART CHARGER SERIES 12/17 - 24/12 – 24/8 - 12/30 -24/20 MANUAL GEL/AGM BATTERIES TRACTIONARY BATTERIES www.cmelux.fi CME-Lux Oy, Finlanaysoninkuja 9, FIN 33210 Tampere...
-
Page 14: Technical Specification
SMART CHARGER SERIES 12/17 - 24/12 – 24/8 - 12/30 -24/20 MANUAL TECHNICAL SPECIFICATION Dimensions (L x W x H) 198 x 98 x 47 mm Weight 1,7Kg Ambient temperature – 25 C > +40 Mains voltage 90-230VAC – 0-100Hz (<200V limited effect) -
Page 15: Warranty
CME warranty applies only to original purchaser within a period of 24 months from the date from delivery. CME guarantees that the product is in excellent condition upon delivery, unless comes full refund.
