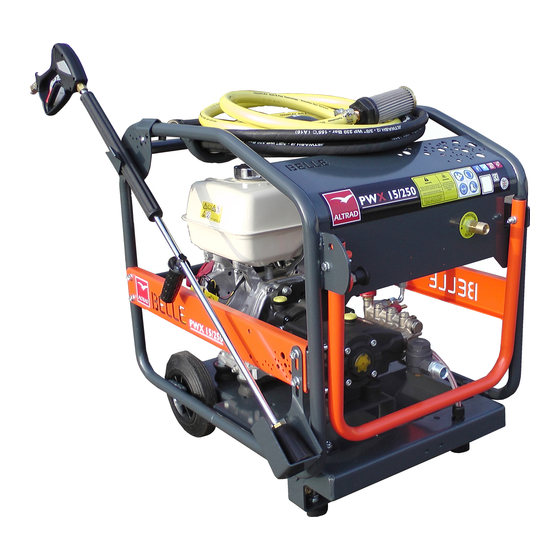

Altrad BELLE PWX Series Operator's Manual
  1. Manuals
  2. Brands
  3. Altrad Manuals
  4. Pressure Washer
  5. BELLE PWX Series
  6. Operator's manual

Altrad BELLE PWX Series Operator's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
BELLE
870/60000/1
09/18
PWX
RANGE
Operators Manual
4
GB
• Spare Parts Book
14
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BELLE PWX Series and is the answer not in the manual?

Questions and answers

Related Manuals for Altrad BELLE PWX Series

Summary of Contents for Altrad BELLE PWX Series

  • Page 1 BELLE 870/60000/1 09/18 RANGE Operators Manual • Spare Parts Book...
  • Page 2 EC DECLARATION OF CONFORMITY / DECLARATION CE DE CONFORMITE / DECLARACIÓN DE CONFORMIDAD CE / DECLARAÇÃO CE DE CONFORMIDADE / EG-VERKLARING VAN OVEREENSTEMMING / EF OVERENSSTEMMELSESERKLÆRING We, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, hereby certify that if the product described within this certificate is bought from an authorised Belle Group dealer within the EEC, it conforms to the following EEC directives: 2006/42/CE (This directive replaces directive 98/37/EC), Electromagnetic Compatibility Directive 2004/108/CE (as amended by 89/336/EEC, 92/31/EEC &...
  • Page 3 EGKONFORMITÄTSERKLÄRUNG / DICHIARAZIONE CE DI CONFORMITÁ / EG-VERKLARING VAN OVEREENSTEMMING / EC SAMSVARSERKLÆRING / EY-YHDENMUKAISUUSILMOITUS / DEKLARACJA ZGODNOSCI Z PRZEPISAMI UE Wir, Belle Group Sheen UK, Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB, bestätige hiermit, dass, wenn das Produkt innerhalb dieser Bescheinigung ist von einem gekauft zugelassen Belle Group-Händler innerhalb der EWG, so entspricht sie den folgenden EG-Richtlinien: 2006/42/CE (Diese Richtlinie ersetzt die Richtlinie 98/37/EG), elektromagnetische Kompatibilität Richtlinie 2004/108/EG (geändert durch 89/336/EWG, 92/31/EWG und 93/68 EWG).
  • Page 4 KNOW how to safely use the unit’s controls and what you must do for safe maintenance. (NB Be sure that you know how to switch the ALWAYS wear or use the proper safety items required for your personal protection. If you have ANY QUESTIONS about the safe use or maintenance of this unit, ASK YOUR SUPERVISOR OR CONTACT: Altrad Belle (UK): Contents How to use this manual .....................................4...
  • Page 5 Machine Description Engine ON / OFF Switch. Air Filter Housing. Exhaust.
  • Page 6 Technical Data 1462 1155 1087 Model PWX 08/180 PWX 13/230 PWX 15/250 PWX 15/250D Weight (Kg) Engine Electric Start Engine Power (Hp-kW) Engine RPM 3400 3400 3400 3400 Electric Start Water Flow (lpm) Max. Water Pressure (bar - psi) Fuel Tank Capacity (Ltrs) Gearbox Driven Pump Sound Power Level (dB(A)) Environment...
  • Page 7 Decals A. Altrad Logo Decals. C. Information Decal. D. Safety Decal. E. High Pressure Outlet Decal Lifting Point Decal A. Altrad Logo Decal. C. Information Decal Please Read Wear Protective Wear Ear Wear Eye Operators Manual Footwear Protection Protection D. Safety Decal E.
  • Page 8 It is the responsibility of the operator to ensure that he/she fully understands how to operate this equipment safely. If you are unsure about the safe and correct use of the Pressure Washer, consult your supervisor or Altrad Belle.
  • Page 9 Start and Stop Procedure STOPPING - HONDA GX200, GX240 & GX390 • Switch OFF the loads. • Switch OFF the engine. • Turn the fuel tap to the CLOSED position. Throttle Lever STARTING - HONDA GX200, GX240 & GX390 • Remove all objects placed on, or within one metre of the Pressure Washer.
  • Page 10 Check the fuel level. appropriate ear defenders. • Your Altrad Belle Pressure Washer comes preset and NO adjustment is necessary. • Be aware of how to stop the Pressure Washer by use of the On/Off switch or throttle lever. HOSE CONNECTION - HIGH PRESSURE OUTLET (MACHINE MUST BE TURNED OFF) •...
  • Page 11 Service and Maintenance The following schedule details the attentions considered necessary to ensure satisfactory operation of the Pressure Washer. NOTE:- The attentions and periods summarised in the schedule are the initial recommendations and should be revised to suit the Power Unit working conditions. Only authorised dealers should repair the Pressure Washer, and within the requirements of 6 Months / Yearly / Item...
  • Page 12 The following are not covered under the Altrad Belle warranty: operation or user maintenance instructions. 3. Transportation or shipment costs to and from Altrad Belle or their recognised agents, for repair or assessment against a warranty claim, on any machine.
  • Page 14 1-01 Chassis Assembly - PWX 08/180 02500 ....Chassis ..............1 00525-B ....Foot ................. 2 4/1003 ....Washer ........M10 ......2 8/10003 ....Nut .........M10 ......2 02515 ....Boss ................ 4 02512 ....Guard ..............1 7/8037 ....Screw ........M8 x 20 ....4 4/8006 ....
  • Page 15 1-02 Chassis Assembly - PWX 13/230 02369 ....Chassis ..............1 00525-B ....Foot ................. 2 4/1003 ....Washer ........M10 ......2 8/10003 ....Nut .........M10 ......2 00013 ....Bung ............... 2 60/0285 ....Wheel ..............2 995/99931 ... Boss ................ 2 995/99930 ...
  • Page 16 1-03 Chassis Assembly - PWX 15/250 Honda 995/01500 ... Chassis ..............1 60/0285 ....Wheel ..............2 00525-B ....Foot ................. 2 8/10003 ....Nut .........M10 ......2 4/1003 ....Washer ........M10 ......2 995/99926 ... Support Bracket ............1 7/8037 ....
  • Page 17 1-04 Chassis Assembly - PWX 15/250 Yanmar 995/01500 ... Chassis ..............1 60/0285 ....Wheel ..............2 00525-B ....Foot ................. 2 8/10003 ....Nut .........M10 ......2 4/1003 ....Washer ........M10 ......2 7/8100 ....Screw ........M8 x 130 ....2 995/99928 ...
  • Page 18 2-01 Frame Assembly - PWX 08/180 995/03000 ... Frame ..............1 995/99912S ..Side Plate - Orange ..........2 995/99912R1 ..Side Plate - Red ............2 995/99912Y2 ..Side Plate - Yellow ..........2 995/99912B1 ..Side Plate - Blue ............. 2 995/99912G ..
  • Page 19 2-02 Frame Assembly - PWX 13/230 995/03100 ... Frame ..............1 7/8053 ....Screw ........M8 x 25 ....6 7/8037 ....Screw ........M8 x 20 ....6 4/8006 ....Washer ........M8 ......12 8/8008 ....Nut .........M8 ......10 02364 ....Insert ............... 2 3/4035 ....
  • Page 20 2-03 25 26 Frame Assembly - PWX 15/250 996/01100 ... Frame ..............1 7/8037 ....Screw ........M8 x 20 ....10 4/8006 ....Washer ........M8 ......10 8/8008 ....Nut .........M8 ......8 7/8053 ....Screw ........M8 x 25 ....4 7/8101 ....
  • Page 21 3-01 Engine, Gearbox & Pump Assembly - PWX 08/180 20/0135 ....Engine ........GX200 ..... 1 21/0438 ....Anti Vibration Mount ..........2 21.0.216 ....Anti Vibration Mount ..........2 4/8023 ....Washer ........M8 x 40 x 6 ....2 4/8024 ....Washer ........M8 x 40 x 10 .... 2 7/8009 ....
  • Page 22 3-02 Engine, Gearbox & Pump Assembly - PWX 13/230 21.0.292 ....Anti Vibration Mount ..........2 20/0076 ....Engine ........GX240 ..... 1 4/8023 ....Washer ........M8 ......2 21/0438 ....Anti Vibration Mount ..........2 7/10003 ....Screw ........M10 x 35 ....2 8/10006 ....
  • Page 23 3-03 Engine, Gearbox & Pump Assembly - PWX 15/250 Honda 6/1157 ....Pump ..............1 21.0.292 ....Anti Vibration Mount ..........4 4/1005 ....Washer ........M10 ......12 7/10003 ....Screw ........M10 x 35 ....4 20/0077 ....Engine ........GX240 ..... 1 6/5023 ....
  • Page 24 3-04 Engine, Gearbox & Pump Assembly - PWX 15/250 Yanmar 20/0111 ....Engine ........Yanmar L100 ... 1 21.0.292 ....Anti Vibration Mount ..........4 4/1005 ....Washer ........M10 ......8 7/10003 ....Screw ........M10 x 35 ....4 6/1157 ....Pump ..............1 6/5023 ....
  • Page 25 4-01 Lance & Hoses 34/0051 ....Hose ............... 1 6/5024 ....Water Suction Filter ..........1 3/7066 ....Jubilee Clip ............. 2 6/0287 ....Hose Barb ............... 1 995/02201 ... Lance Trigger ............1 995/02202 ... Lance Barrel ............1 5/0007 ....
  • Page 26 4-02 Lance Assembly - Handle End 30.1207.24 ..Handle Case Kit ............1 16.3077.00 ..Screw ..............13 10.4018.00 ..Back-Up Ring ............1 10.3165.00 ..O-Ring ..............1 14.3511.00 ..Washer ..............1 30.0704.51 ..Piston ..............1 30.1708.20 ..Seal & O-Ring Kit ............ 1 14.7448.00 ..
  • Page 27 4-03 Lance Assembly - Nozzle End 40.5008.31 ..Fitting ..............1 40.0315.56 ..Tube ................ 1 40.0308.24 ..Upper Barrel Casing Kit .......... 1 40.0304.84 ..Tube Fastener ............1 16.2230.00 ..Screw ........M10 x 8 ....1 40.0303.84 ..Plug ................. 1 16.3077.00 ..
  • Page 28 5-01 14Nm Loctite 542 Loctite 542 Lubricate with Grease Loctite 542 Pump Assembly - PXW 08/180 & PWX 13/230 58.1205.41 ....Pump Head .............1 36.7115.01 ....Suction Valve Assembly .........1 E2B1713 KIT 270 ..Seals & Plugs Kit ............1 99.1690.00 ....Screw ........M5 x 55 ....3 96.6905.00 ....
  • Page 29 5-02 Loctite 542 Lubricate with Grease Pump Assembly - PXW 15/250 59.1208.41 ....Pump Head..............1 36.7115.01 ....Suction Valve Assembly ..........3 E3B2515 KIT 292 ..Seals & Plugs Kit ............1 99.1690.00 ....Screw........M5 x 55 ...... 3 96.6905.00 ....Washer ........M5 ......3 59.0400.09 ....Piston.................
  • Page 30 6-01 10Nm 20Nm 40Nm Loctite 542 12Nm 20Nm 40Nm Gearbox Assembly - PXW 08/180 & PWX 13/230 90.1674.00 ..Ring ........Ø 35 x 65 x 10 ..1 90.0850.00 ..Ring ........Ø 62 UNI 7437 ..1 90.0695.00 ..Ring ........Ø 35 UNI 7435 ..1 91.8464.00 ..
  • Page 31 6-02 14Nm Loctite 542 Gearbox Assembly - PXW 15/250 97.5968.00 ..Gasket ..............74.5 x 104 x 0.3 .......1 10.0756.22 ..Gearbox Casting .......................1 96.7020.00 ..Washer ..............8.4 x 15 x 1.5 ......4 96.7014.00 ..Washer ..............8.4 ..........4 96.7104.00 ..
  • Page 32 7-01 Hose Reel 39/1349 ....Hose Reel ............... 1 2/0010 ....Split Ring ..............1 7/6046 ....Screw ........M6 x 16 ....3 4/6007 ....Washer ........M6 ......3 995/02400 ... Bracket ..............1 995/99932 ... Handle ..............1 7/8024 ....Screw ........M8 x 60 ....1 8/8008 ....
  • Page 33 8-01 Decals 800/99318 ... Decal ............... 2 800/99335 ... Decal ........PWX 08/180 .... 2 800/99336 ... Decal ........PWX 13/230 .... 2 800/99337 ... Decal ........PWX 15/250 .... 2 800/99349 ... Decal ........PWX 08/180 .... 1 800/99350 ... Decal ........PWX 13/230 .... 1 800/99351 ...
  • Page 34 ALTRAD BELLE Sheen, Nr. Buxton, Derbyshire, SK17 0EU, GB Tel. +44 (0)1298 84606 - Fax +44 (0)1298 84722 - Email: sales@altrad-belle.com www.Altrad-Belle.com...
