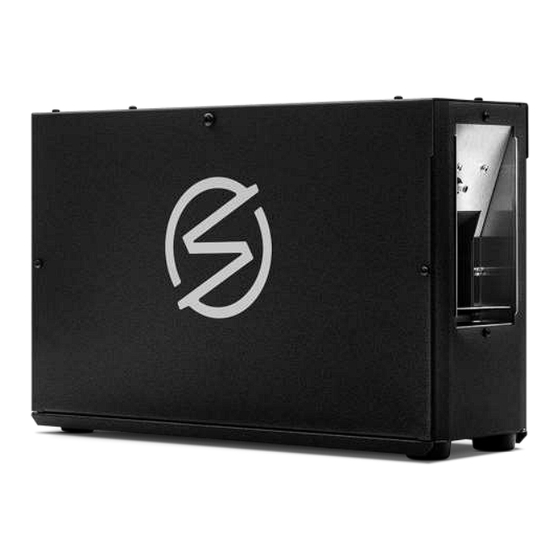

K1 HAZER
40510-230 K1 Hazer - EU version
Rev. 1 2019-10-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K1 HAZER and is the answer not in the manual?

Questions and answers

Related Manuals for Swefog K1 HAZER

Summary of Contents for Swefog K1 HAZER

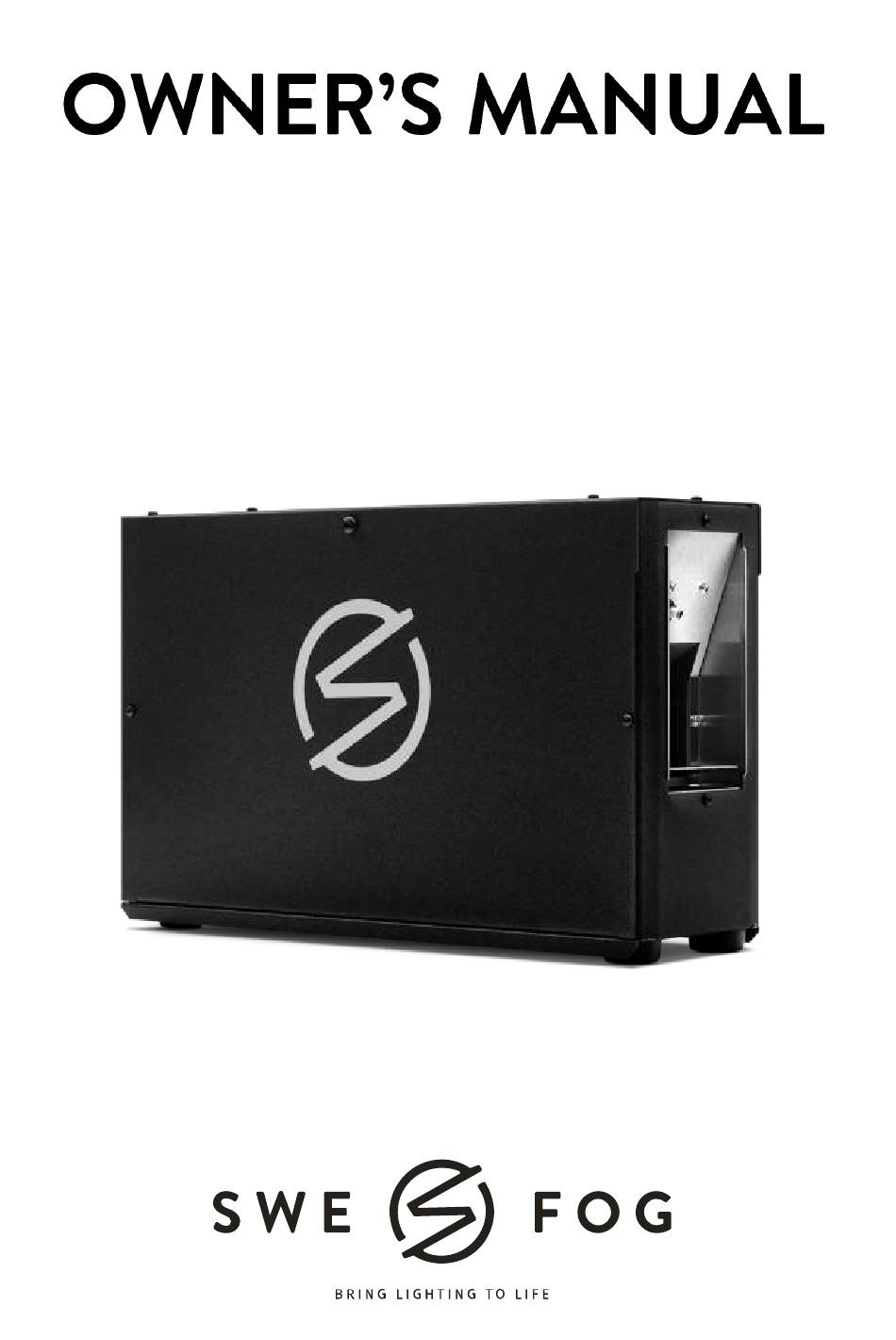

  • Page 1 K1 HAZER 40510-230 K1 Hazer - EU version Rev. 1 2019-10-03...
  • Page 2 IMPORTANT! Read all cautions and warnings prior to assembly, mounting and operating this equipment. IMPORTANT ! Prière de lire toutes les pr le montage et de faire fonctionner cet équipement. WICHTIG ! Lesen Sie alle Warnungen sorgfältig bevor Sie das Gerät zusammenbauen, installieren und benutzen.

  • Page 3: Table Of Contents

    Manufactured by: S W E F O G T E C H N O L O G Y G R O U P AB INDUSTRIVÄGEN 15 SE-682 33 FILIPSTAD, SWEDEN. Tel: +46 590 122 50, +46-70-403 33 00 e-mail: info@swefog.com www.swefog.com...

  • Page 4: How To Use This Guide

    HOW TO USE THIS GUIDE: For your safety, it is important that you read this manual thoroughly before you operate the K1 hazer. This manual describes how to unpack, plan for, set up and operate the machine. It also lists important safety precautions. For service & maintenance, refer to separate service manuals &...

  • Page 5: Introduction

    NOTE: Use original K1 molecular haze fluid only. This machine is NOT compatible with other Swefog liquids, and no OEM fluids. The use of any other fluid will void the warranty, and most likely quickly damage internal components. K1 is developed for K1 fluid, and other fluids will change performance and may interfere with the machine s internal sensors.

  • Page 6: Unpacking

    Make sure that persons subjected to haze and fluids are not allergic to the substance. The original Swefog fluid is made with food-grade chemicals only and is non-toxic. But always ensure the haze will not cause inconvenience.

  • Page 7: Installation And Precautions

    Service internal parts ONLY if you have the know-how and experience to perform the service correctly. If not, please contact a Swefog service center or the manufacturer. NOTE: Incorrect service and/or use of non-original spare parts will void the warranty.

  • Page 8: Operation

    6.0 OPERATION: Explore the K1 hazer: Haze outlet Fan air outlet Wave guide Air inlet Control panel & display Ergonomic AluGrip handle Fluid container compartment Latch Illuminated fluid level indicator 10. USB connector (type B) XLR connectors, for DMX PowerCon 230V...
  • Page 9 6.1 Control panel & display: Control panel: Power LED OLED display Cancel key Navigation keys OK / confirm key 6.2 Normal operation & preparation: • Place the machine on a level surface. • Connect to 230V mains outlet with earth lead, machine consumes 6,5 amps max. The machine will automatically start up when connected to mains.
  • Page 10 • Open & prepare a 3L K1 molecular fluid container by following instructions printed on container. NOTE: K1 hazer uses fluid box knock-out opening A . • Grasp container & spout as the picture shows below.
  • Page 11 • The spout flange shall be positioned in the rail, between the black & stainless metal plates. Push in spout to center position. • Check container slips behind the edge of the fluid container assembly.
  • Page 12 • Connect fluid line to bag spout by pulling the ring on machine s female (black) connector backward about 3 mm, push black tube connector assembly towards container spout until it to correct, fully connected position. Release locking ring. Test proper connection by pulling the tube connector. NOTE: Incorrect connection will cause leaks.
  • Page 13 • Close BiB container assembly, close top lid. Lock with latch. • Prime pump by producing fog at full output for about 1-1½ minute. • Choose how to control the machine; by DMX, with or without RDM, stand-alone manual or timer. K1 is also able to control with compatible remote control. The remote control will be automatically recognized when connected.

  • Page 14: Operation - Menu System & User Interface

    6.3 MENU SYSTEM / USER INTERFACE : K1 hazer uses Swefog s Merlin 5, a PLC-based electronic control module, where all functions are controlled with firmware. Product improvement is performed on a continuous basis, and your machine s software is upgradeable using Swefog s PC-link and a USB cable.
  • Page 15 MAIN MENU: (example, may differ from actual appearance). The current choice is highlighted. To enter, press OK . Go back / cancel, press X SWITCH OFF: • Press OK and confirm again to switch off the machine. A one-minute purging process starts, once completed, the machine is off.
  • Page 16 0x0031 SUPPORTED_PARAMETERS 0x0050 DEVICE_INFO 0x0060 PRODUCT_DETAIL_ID LIST 0x0070 PRODUCT_DETAIL_FOGGER_GLYCOL DEVICE_MODEL_DESCRIPTION 0x0080 K1EU MANUFACTURER_LABEL 0x0081 Swefog DEVICE_LABEL 0x0082 SOFTWARE_VERSION_LABEL 0x00C0 BOOT_SOFTWARE_VERSION_ID 0x00C1 Software ver ID, higher number = newer ver. BOOT_SOFTWARE_VERSION_LABEL 0x00C2 Human readable software version. Higher number=newer ver. DMX_PERSONALITY 0x00E0 select personality &...
  • Page 17 TIMER MODE: • Timer mode has 5 tabs: Fog, fan, Tfog, Tdel, I/O. • Set fog output & fan speed using ▲ / ▼. Confirm with OK . • Set fog operate time in the TFOG tab. Time is displayed as H:MM: SS. Use ▲ / ▼ to make settings.
  • Page 18 • To insert and/or enter a new label name, press OK . Select character with ◄ / ►. Press OK to set. • When settings are done, press X . • Press OK to save & exit. • Press X to exit & discard. No changes will be made. SHUTDOWN OVER DMX: By using this function, the machine can be switched off &...
  • Page 19 • Select Muted to keep the LED switched off. • Press OK to confirm. Press X to exit. MUTE BAG LED: Same function as above, switches bag level LED indicator on/off. • Select Unmuted for normal operation. • Select Muted to keep the bag LED switched off. •...

  • Page 20: Operation - Fluids

    Reset of component service time can only be done when replaced. 6.5 Fluids: Swefog K1 is developed and designed to work with Swefog K1 molecular fluids. No other fluid is compatible with this machine! If the original fluid is used and regular maintenance is performed, the machine will work well for many years.

  • Page 21: Specifications

    Do not use the machine if sufficient airflow cannot be guaranteed Filters: K1 hazer contains two (2) important filters that shall be replaced regularly: Air inlet housing filter mat & air pump inlet filter. The integrated electronic service reminder is set to remind user to replace filters & wear- out components.

  • Page 22: Error & Service Messages

    8.2 Error & service messages: If a problem is detected, an error message appears in the status bar: Error detected: Mains AC failure : The power supply is not stable. The machine s PLC detects problems or disturbances at the AC power supply line.
  • Page 23 Overheat is an indication of unstable electronics or problems with temp sensor connection. Correct temperature at all times is the most important function in your fog machine. Send machine to Swefog dealer for qualified service, do not use the machine if the problem has not been solved completely! Refer to service manuals for service work.
  • Page 24 8.3 Service messages & reset of component lifetime: The machine uses parameter control of wear-out parts air filter, air pump & fluid pump. This to help avoid unwanted interrupts for service, and remind the user to replace a component when it reaches the end of life. The above internal components are calculated to last an estimated no.
  • Page 25 Replace component. Do not reset without replacing first. Select the correct component, press + hold OK for two seconds. This will bring up a reset dialog: Press OK to reset, X to cancel reset of service time. Now, the accumulated time for the concerned component is set to 0 in the service menu. The procedure is the same for the other components;...

  • Page 26: Warranty & Returns

    Returning an item for repair covered by warranty: First of all, consult your Swefog retailer to check if the problem is able to solve without sending the machine back. See FAQ & service bulletins published on swefog.com. Also, always check for firmware updates and make sure to update to the latest version before claiming repair.

  • Page 27: Ce Conformity

    Declaration of conformity Konformitätserklärung Declaration de Conformité Swefog Technology Group AB Nous Address Industrivägen 15 Anschrift SE - 682 33 FILIPSTAD Adresse Sweden / Schweden / Suède Declare under our sole responsibility that the product Erklären in alleiniger Verantwortung, dass das Produkt Declarons sous notre seule responsi- bilité, que le produit...
