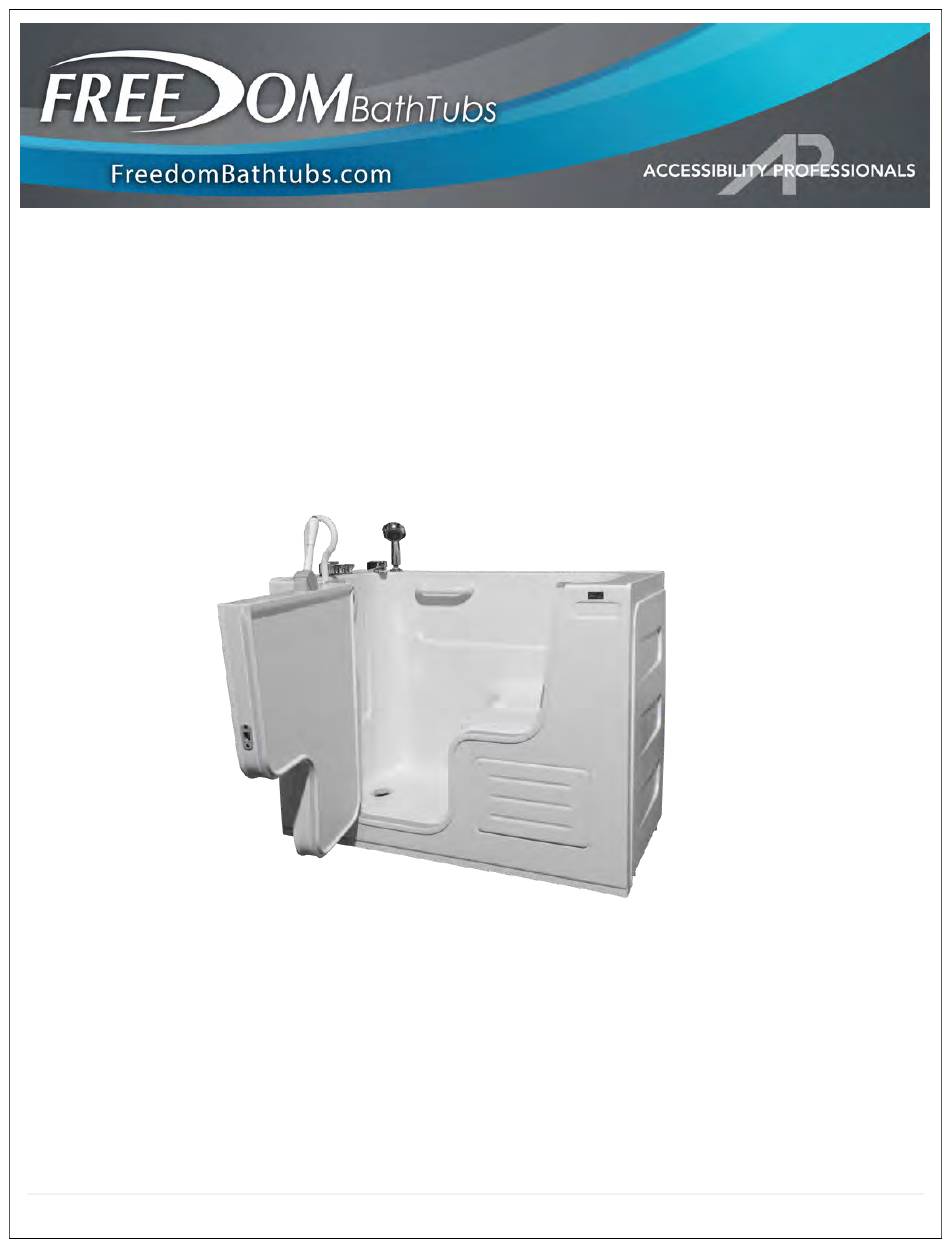

- Page 1 Windsor Walk in Tub Installation and Operation Note: You must read all installation & operation instructions prior to assembly and use of this unit. P a g e Rev 05/201 5...
-
Page 2: Table Of Contents
Table of Contents Warnings …………………………………………………. HY Series Dimensions …………………………………………………. Product Features …………………………………………………. Usage …………………………………………………. Maintenance …………………………………………………. Trouble Shooting Guide …………………………………………………. Component List …………………………………………………. MODELS APWHY1341X (L & R) - Soaker APWHY1341XP (L & R - Soaker Heated shell APWHY1241XA (L & R ) - WITH Air Jets APWHY1141XW (L &... -
Page 3: Hy Series Dimensions
IMPORTANT SAFETY INSTRUCTIONS These instructions are designed to reduce the risk of injury to the user. WARNING When using this unit, basic precautions should always be followed, including the following: Read and follow all instruc tions Danger: to reduce the risk of injury, do not permit children to use this unit unless they are closely supervised at all times. Use this tub only for its intended purpose as described in this manual;... -
Page 4: Product Features
PRODUCT FEATURES Model Requirements HY11XX 110V / 20 amp dedicated line HY12XX 110V / 20 amp dedicated line HY13XX No electrical requirements Normal working water pressure: 0.2 – 0.5Mpa Normal working water ow: 15.4L/min (4.07 gpm) Connection: Hot/Cold water supply line ½” Drainage pipe is Φ... -
Page 5: Usage
USAGE Door system MAKE SURE ALL THE WATER IS DRAINED FROM THE TUB BEFORE OPENING THE DOOR !!! If your tub door has the locking system like gure 2, please follow the instructions below to open and close it. ... - Page 6 Hand-held shower use guide It has two patterns, full shower spray and massage spray ( gure 8) Tu rn the face of the hand held shower spray clockwise or counterclockwise for the desired shower pattern The tub has three systems options: water massage, bubble massage and soaking bath Warning : do not operate water massage pump unless tub is full of...
-
Page 7: Maintenance
MAINTENANCE Please make sure that the power is disconnected before doing any maintenance. (1). Keep the bathtub clean and neat (2). DO NOT use strong acids or alkali liquids to clean the bathtub or xtures (3). DO NOT allow the tub to run for more than 3 hours continuously (4). -
Page 8: Component List
COMPONENT LIST Model HY-1X01 HY-1X04 HY-1X05 HY-1X07 Accessories 1101 1201 1301 1104 1204 1304 1105 1205 1305 1107 1207 1307 Door Safe lock Towel bar Safety grab bar Door handle Handle Tub ll spout Massage jets Hand -held shower head Shower head mount Pillow Water intake... - Page 9 COMPONENT LIST Model HY-1X23 HY-1X41 Accessories 1123 1223 1323 1141 1241 1341 1105 1205 1305 Door Safe lock Towel bar Safety grab bar Door handle Handle Tub ll spout Massage jets Hand -held shower head Shower head mount Pillow Water intake Air pneumatic switch Drain Air massage...
