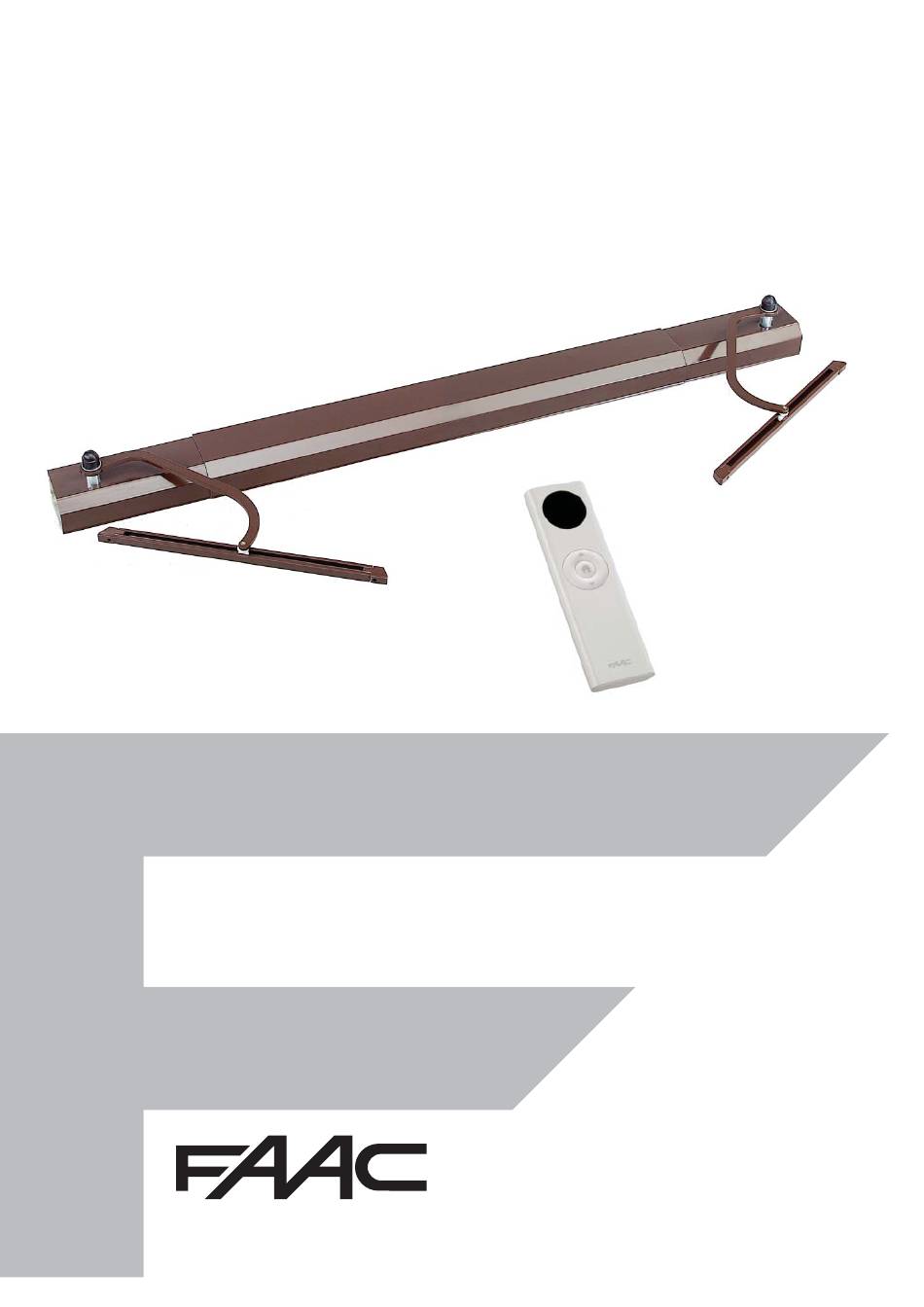

  • Page 1 N1D KIT N1D AUTO KIT N1D SENSO KIT...

  • Page 2: Ec Declaration Of Conformity

    Manufacturer: FAAC S.p.A. Address: Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALIA Declares that: The operator mod. N1D Kit, N1D auto Kit, N1D senso kit • conforms to the essential safety requirements of the following EEC directives: 2006/95/EC...

  • Page 3: Tools Required

    23. 4 guide caps 13. 2 screws (6x50) 5. 1 cable gland 14. 2 lock washers 6. Wired control (for N1D kit and N1D AUTO kit) 15. 4 screws for guides (5x35) 7. Single channel remote control TM XT1 16. 2 drive rings 433 (N1D SENSO Kit) 17.
  • Page 4 In the case of a double leaf application, the opening angles of the two leaves must be identical. Diff erent models require diff erent modes of operation: 1) N1D KIT : controlled by distinct opening / closing buttons, with dead man logic. The N1D model kit does not require automatic limit switches.
  • Page 5 Reference mark Close the shutters, trace a line from the inside 3 mm from the closed shutter, on the architrave or on the windowsill according to the chosen installation. This line will delimit the position of the frames. (Fig. 3.2) Fig.

  • Page 6: Selecting Configuration

    SELECTING CONFIGURATION The shutter closing delay is always seen from the inside. Architrave assembly Architrave assembly Architrave assembly Architrave assembly Left delay Left delay Right delay Right delay Right cable outlet. Left cable outlet Right cable outlet Left cable outlet Assembly on the windowsill Assembly on the windowsill Assembly on the windowsill...
  • Page 7 Architrave assembly Architrave assembly Architrave assembly Architrave assembly Right shutter Right shutter Left shutter Left shutter Right cable outlet Left cable outlet Right cable outlet Left cable outlet Assembly on the windowsill Assembly on the windowsill Assembly on the windowsill Assembly on the windowsill Right shutter Right shutter...
  • Page 8 CONFIGURATION N° 1, 2 and 3, 4 Arrange the pieces as in fi g. 5. 1. Right shutter 4. Transmission frame 6. Engine chassis 2. Left shutter 5. Transmission axis 7. Slow transmission (yellow) 3. Fast transmission (grey) External Installation in SUPPORT from TOP view Internal Installation on ARCHITRAVE from BOT-...
  • Page 9 Cable outlet Only for settings 2 and 3: pass the cable through the specifi c PVC tube (see image Fig. 7). ATTENTION: the electric cable must not be in contact with any movable part. ATTENTION: It is essential to keep the cable fully stretched. Fig.
  • Page 10 Fixing holes Assemble the pieces and place them under the architrave or on the windowsill (installation on the architrave in fi gure 9). Mark the position of the holes on the frames and drill with the appropriate bit. Place the dowels adequate for the material on which the N1D will be installed. ATTENTION: The quality of the fastening is essential for the device to work properly.
  • Page 11 CONFIGURATION N° 5, 6 and 7, 8 Arrange the pieces as in fi g. 11. Right shutter Transmission frame Fast transmission (grey) Left shutter Transmission axis Slow transmission (yellow) Engine chassis Installation on the windowsill from External the TOP view Internal External Installation on ARCHITRAVE from BOT-...
  • Page 12 Cable outlet Only for settings 6 and 7: • pass the cable through the specifi c PVC tube (see image Fig. 13). ATTENTION: the electric cable must not be in contact with any movable part. ATTENTION: It is essential to keep the cable fully stretched. Fig.
  • Page 13 Fixing holes Assemble the pieces and place them under the architrave or on the windowsill (installation on the architrave in the fi gure). Mark the position of the holes on the frames and drill with the appropriate bit. Place the dowels in the holes. ATTENTION: The quality of the fastening is essential for the device to work properly.
  • Page 14 CONFIGURATION N° 9, 10 and 11, 12 Arrange the pieces as in fi g. 17. Right shutter External Fast transmission (grey) Engine chassis Installation on the windowsill from the TOP view Internal Installation on ARCHITRAVE from BOT- TOM view External Fig.
  • Page 15 Cable outlet Only for settings 10 and 11: • pass the cable through the specifi c PVC tube (see image Fig. 19). ATTENTION: the electric cable must not be in contact with any movable part. ATTENTION: It is essential to keep the cable fully stretched. Fig.
  • Page 16 Fixing holes Assemble the pieces and place them under the architrave or on the windowsill (installation on the architrave in the fi gure). Mark the position of the holes on the frame and drill with the appropriate bit. Place the dowels in the holes. ATTENTION: The quality of the fastening is essential for the device to work properly.
  • Page 17 CONFIGURATION N° 13, 14 and 15, 16 Arrange the pieces as in fi g. 23. External Left shutter Slow transmission (yellow) Installation on the windowsill from Engine chassis the TOP view Internal Installation on ARCHITRAVE from BOTTOM view External Fig. 23 Prearrangement of frame For windows between 600 and 672 mm wide (N1D), and between 660 and 760mm wide (N1D SENSO/AUTO), cut the frame as in fi g.
  • Page 18 Cable outlet Only for settings 14 and 15: pass the cable through the specifi c PVC tube (see image Fig. 25). ATTENTION: the electric cable must not be in contact with any movable part. ATTENTION: It is essential to keep the cable fully stretched. Fig.
  • Page 19 Fixing holes Assemble the pieces and place them under the architrave or on the windowsill (installation on the architrave in the fi gure). Mark the position of the holes on the frames and drill with the appropriate bit. Place the dowels in the holes. ATTENTION: The quality of the fastening is essential for the device to work properly.

  • Page 20: Positioning The Cabinet

    POSITIONING THE CABINET Passage of the cable Pass the cable through the cable gland. Insert the cable gland in the specifi c slot in the frame at the cable outlet. Cable gland Cable gland slot Fig. 29 Installing the cabinet 1) Position the cabinet and the side covers on the frame.
  • Page 21 POSITIONING THE ARMS 10.1 Installation of the arms Open both leaves (the leaves must open to the same degree). Insert the spring washer (Fig. 31 ref. F) into the screw (fi g. 31 ref. G), while paying attention to the direction of insertion described in the fi gure.
  • Page 22 10.2 Determination of arm stroke Mark the position on the shutter of the arm spacer: Open shutter Closed shutter Open shutter Closed shutter Fig. 32 10.3 Installing the guide Insert the bush in the guide and position it on the open shutter. Centre the guide on the shutter and level it.
  • Page 23 Connect the cables to the mains power supply as shown in the fi gure. Do not connect N1D KIT or N1D AUTO KIT in parallel. Check that the button is wired correctly based on the installation made. Pressing the opening key should open the shut- ters.

  • Page 24: Push Button

    11.3 Electric wiring mod. N1D SENSO KIT The N1D SENSO can be either remote controlled or controlled by a step logic button and automatically inverts the motion as soon as it encounters an obstacle. PUSHBUTTON Connect the yellow green cable to earth. Connect the brown and blue (or grey) cables to 230V.
  • Page 25 NOTE: If this procedure is performed, the automation is set to shutter 1 mode. For further details, refer to the instructions that can be downloaded from the FAAC website. KEPT PRESSED UNTIL CONFIRMATION IS GIVEN BY THE ENGINE Fig.
  • Page 26 NOTE: If this procedure is performed, the automation is set to shutter 3 mode. For further details, refer to the instructions that can be downloaded from the FAAC website. PRESS THE OPENING OR CLOSING BUTTON AND BRING THE SHUTTER TO THE OPEN POSITION Fig.
  • Page 27 PRESS THE OPENING OR CLOSING BUTTON AND BRING THE SHUTTER TO THE CLOSED POSITION Fig. 42 KEEP THE STOP BUTTON PRESSED UNTIL THE ENGINE PERFORMS THE INDICATED MOVEMENTS Fig. 43 RESETTING THE STORED LIMIT SWITCH POINTS mod. N1D SENSO KIT With the following procedure the previously set limit switch points are deleted from the memory.
  • Page 28 STORING ADDITIONAL REMOTE CONTROLS mod. N1D SENSO KIT Power the engine. Using an already stored remote control, press the PROGRAMMING key for 2 seconds and, within 5 seconds, press the STOP key for 2 seconds. Within 5 seconds, press STOP on the remote control to be stored. To confi rm that the remote control has been stored, the engine must perform two short movements in both directions.
  • Page 29 DELETING ALL THE RADIO ACCESSORIES IN THE RECEIVER mod.ND1 SENSO KIT With the following procedure, the previously stored RADIO accessories are deleted from the memory. The set limit switch points are not reset. Disconnect the power and connect the red wire (or black) and the brown wire (if there is the step button, press it and keep it pressed). Power the engine and wait for it to move in both directions, meaning that the memory has been completely deleted.
  • Page 30 RANGE OF ARMS The KIT is supplied with arms (type ND1 or ND4 depending on the country). Other types of arms are available for particular installation requirements. The following tables allow the most suitable model to be identifi ed according to the dimensions of the application in question.
  • Page 31 ND7 arm. Min. depth 110 mm. ND2 arm. Min. depth 110 mm. ND6 arm. Min. depth 110 mm. For depth P > 110mm Measure B Measure A This table is not always suitable. It is valid for shutters 28 mm thick, 500 mm wide. Measure A Measure B Open shutter...
  • Page 32 ND4 arm. Min. depth 100 mm. ND3 arm (use without guide). Min. depth 110 mm. ND8 arm (use without guide). Min. depth 110 mm. For depth P > 100/110mm Measure B Measure A This table is not always suitable. It is valid for shutters 28 mm thick, 500 mm Measure A Measure B...
  • Page 33 MANUAL OPERATION OF THE AUTOMATION With the shutters closed due to a power failure or automation malfunction, you can release the leaves as follows: 1) Pull the arm of the fi rst leaf that opens downwards to remove the pin from the guide. 2) Open the leaf.
  • Page 34 FAAC S.p.A. Soc. Unipersonale Via Calari, 10 - 40069 Zola Predosa BOLOGNA - ITALY Tel. +39 051 61724 - Fax +39 051 758518 www.faac.it - www.faacgroup.com 732558 - Rev. D...
