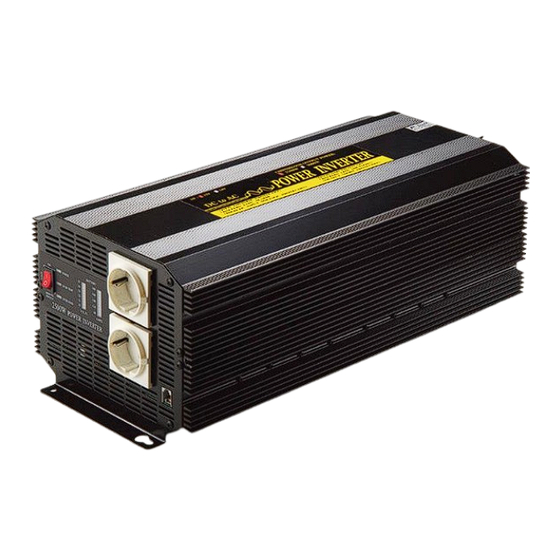

- Page 1 HQ-INV2500/12 HQ-INV2500/12F HQ-INV2500/24 HQ-INV2500/24F 12V DC to 230V AC Soft Start Power Inverter 24V DC to 230V AC Soft Start Power Inverter 2500 WATT CONTINUOUS OUTPUT POWER MANUAL ENGLISH 021895...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS: To reduce risk of electric shock, this product should ONLY be opened by an authorized technician if service is required. Disconnect the product from mains and other equipment if a problem should ocure. Do not expose the product to water of moisture. WARRANTY: No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product. -
Page 3: Installation
2.INSTALLATION Mount the inverter horizontally or vertically on a flat surface. CAUTION! Make sure to following these rules when installing the inverter: Make sure the inverter stays dry The inverter should be installed in a cool place, ambient temperature between 0-25°C. -
Page 4: Audible Alarm
2.1.1. ON/OFF switch For turning the inverter on/off. 2.1.2. Remote ON/OFF jack Allows you to mount the inverter out of sight and turn ON or OFF with the included remote control 2.1.3. Battery voltage (VOLTS) indicator The battery voltage indicator displays the voltage at the input terminal of the inverter. 2.1.4. -
Page 5: Terminal Connector
2.2 INPUT PANEL AND INSTRUCTION 2.2.1 FAN For cooling the inverter during operation 2.2.2 TERMINAL CONNECTOR Use red battery cable to connect (+) of the battery to the (+) terminal of the inverter. Then use the black battery cable to connect the (-) of the battery to the (-) terminal of the inverter. Tighten the screws of the DC input cables regularly. -
Page 6: Chassis Ground Lug
2.2.3. CHASSIS GROUND LUG The inverter has a lug which is to connect the chassis of the inverter. The ground wire in the AC junction box on the output panel of the inverter is connected to the chassis . The chassis ground lug must be connected to a grounding point, which will very depending on where the inverter is installed. - Page 7 6. Low battery alarm on all a. poor DC wiring Use proper cable and the time and VOLTS make solid connections indicator below 10.5V ( 21V b.Poor battery condition Change battery or use for 2500W/24V inverter ) new battery 7. No voltage output , OVER Thermal shutdown Allow inverter cool down TEMP indicator light and...
-
Page 8: Declaration Of Confirmity
DECLARATION OF CONFIRMITY Nedis B.V. Declare under our responsibility that the product; Brandname: HQ Model: HQ-INV2500/12, HQ-INV2500/12F, HQ-INV2500/24, HQ-INV2500/24F Description: 2500W DC to AC Power Inverter Is in confirmity with the following standards; -Mark (72/245/EEC, 95/54/EC):e13*72/245*95/94*1895*00 EMC (98/336/EEC): EN 61000-6-3/2001: EN 55014-1, EN 61000-3-2/-3,... - Page 9 www.hqproducts.info...
