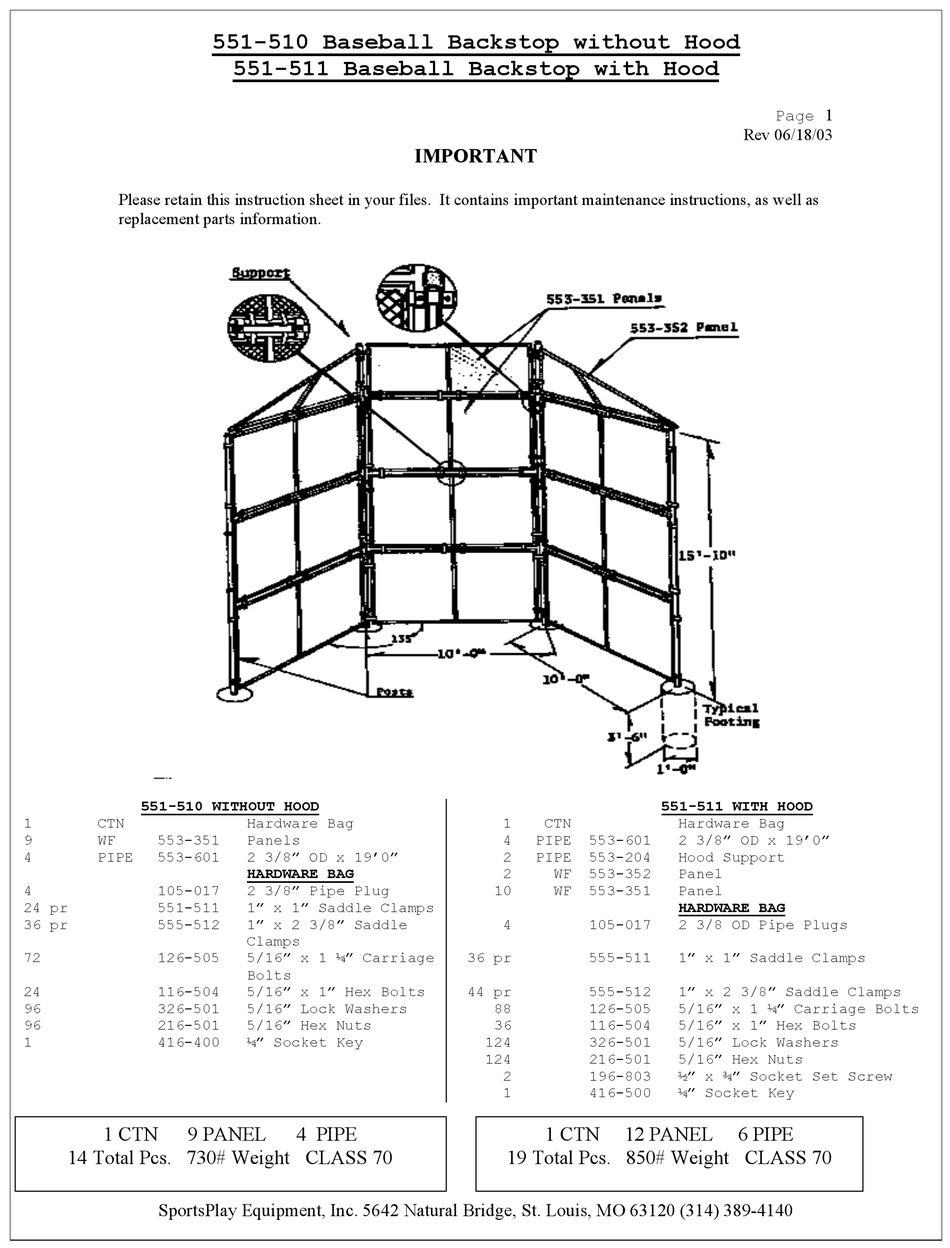

Bluegrass Playgrounds 551-510 Instruction Sheet

Please retain this instruction sheet in your files. It contains important maintenance instructions, as well as
replacement parts information.
551-510 WITHOUT HOOD
1 CTN
9 WF 553-351
4 PIPE 553-601
4 105-017
24 pr 551-511
36 pr 555-512
72 126-505
24 116-504
96 326-501
96 216-501
1 416-400
1 CTN 9 PANEL
14 Total Pcs. 730# Weight CLASS 70
SportsPlay Equipment, Inc. 5642 Natural Bridge, St. Louis, MO 63120 (314) 389-4140
551-510 Baseball Backstop without Hood
551-511 Baseball Backstop with Hood
Hardware Bag
Panels
2 3/8" OD x 19'0"
HARDWARE BAG
2 3/8" Pipe Plug
1" x 1" Saddle Clamps
1" x 2 3/8" Saddle
Clamps
5/16" x 1 ¼" Carriage
Bolts
5/16" x 1" Hex Bolts
5/16" Lock Washers
5/16" Hex Nuts
¼" Socket Key
4 PIPE

IMPORTANT

1 CTN
4 PIPE 553-601
2 PIPE 553-204
2 WF 553-352
10 WF 553-351
4 105-017
36 pr 555-511
44 pr 555-512
88 126-505
36 116-504
124 326-501
124 216-501
2 196-803
1 416-500
1 CTN
19 Total Pcs. 850# Weight CLASS 70
Page 1
Rev 06/18/03
551-511 WITH HOOD
Hardware Bag
2 3/8" OD x 19'0"
Hood Support
Panel
Panel
HARDWARE BAG
2 3/8 OD Pipe Plugs
1" x 1" Saddle Clamps
1" x 2 3/8" Saddle Clamps
5/16" x 1 ¼" Carriage Bolts
5/16" x 1" Hex Bolts
5/16" Lock Washers
5/16" Hex Nuts
½" x ¾" Socket Set Screw
¼" Socket Key
12 PANEL 6 PIPE
