Summary of Contents for Arden EH500K

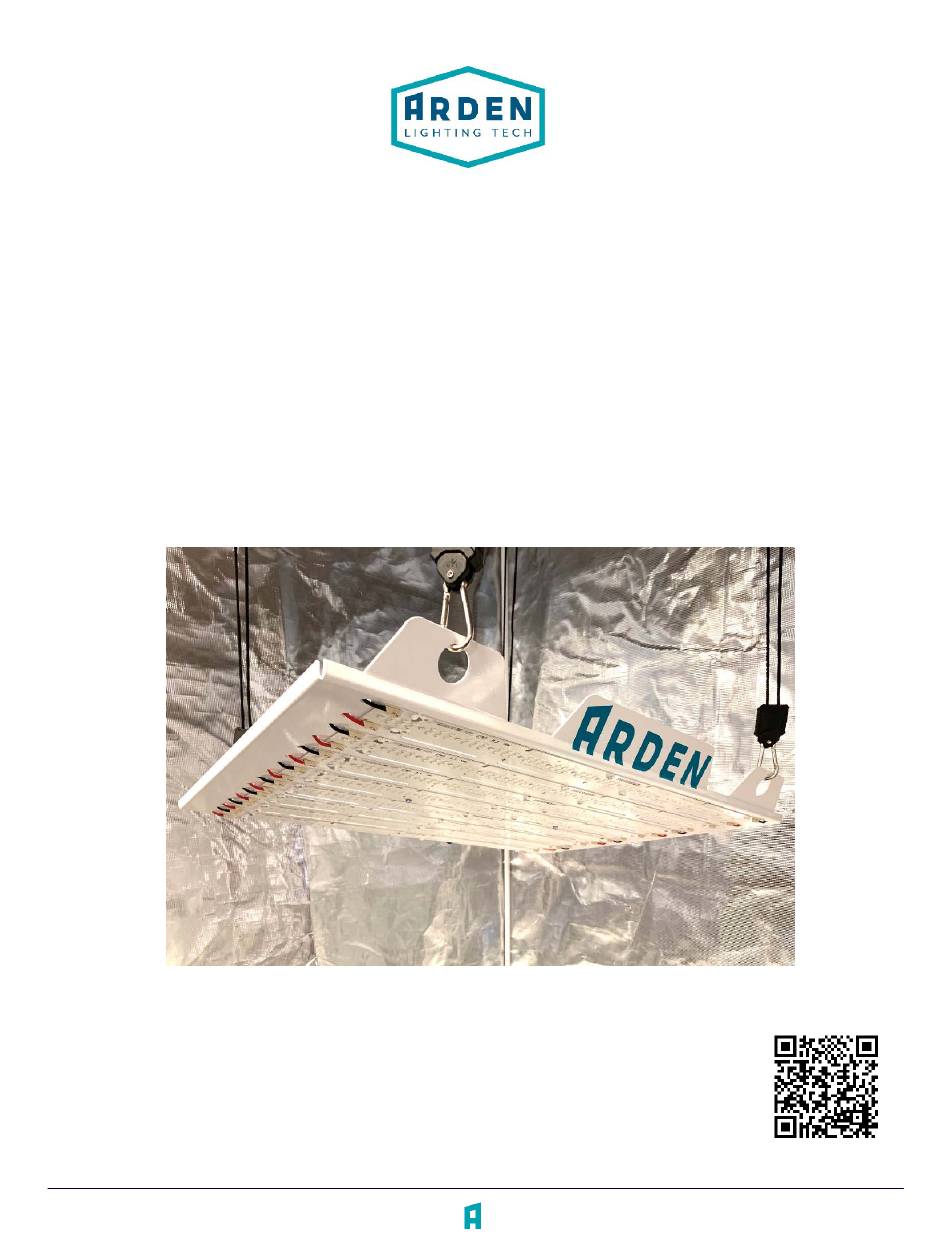

- Page 1 Drawing: 762334XX Rev: A Eng: ZOP Date Drawn: 10/17/2019 Model: EH500K EMERALD HAMMER LED GROW LIGHT KIT Assembly Instructions & User Guide Check out the assembly video on YouTube using the QR code: Sheet: 1 of 8 https://Grow.Arden.Lighting...
-
Page 2: Table Of Contents
Per your local codes, an inspector may need to sign-off on fixture installation before it can be energized • When using extension cords with this product, do not overload or run them through water or snow • Instructions may not cover all details. For additional information, please contact Arden Lighting Tech Sheet: 2 of 8 https://Grow.Arden.Lighting... -
Page 3: Parts Enclosed
Drawing: 762334XX Rev: A Eng: ZOP Date Drawn: 10/17/2019 Model: EH500K Parts Enclosed I - Short Wires (8) A - Baseplate (1) J - Long Wires (8) B - Driver (1) L - Zip-Ties (4) M - Wire Nuts (5) -
Page 4: Instructions For Use
To power up, connect to any grounded 120V outlet If dimming option is selected - use dimming knob to dim fixture to desired output For questions reguarding assembly or use please contact Arden Lighting Tech Product Specs Input 120V Power Driver 25.8in... -
Page 5: Assembly Instructions
Attach (B) driver to standoffs/baseplate using two (E) screws with Phillips-head screwdriver. Ensure OUTPUT wires face towards the side of the baseplate with less wire holes, or towards the N of the black Arden logo. Sheet: 5 of 8 https://Grow.Arden.Lighting... - Page 6 Rev: A Eng: ZOP Date Drawn: 10/17/2019 Model: EH500K Step 4 - Attach LED Boards Attach 8 (F)LED Boards using 48 (G)LED clips. Start by lining-up the LED Boards with the holes on the baseplate, and push in clips until you hear a "click." Ensure all LED boards are lined up with the logos facing the same way (important for the polarities to line up when wiring).
- Page 7 Rev: A Eng: ZOP Date Drawn: 10/17/2019 Model: EH500K Step 7 - Jumper Wires Use (I)short wires to jump boards together. Each board is paired to another with two wires. Use black wires for (-) and red for (+). Insert wires into LED board connectors & pull wires tight to top of baseplate.
- Page 8 Rev: A Eng: ZOP Date Drawn: 10/17/2019 Model: EH500K Step 9 - Make Power connections Using (K)5-connector Wagos, connnect RED output wire from dirver to the 4 RED wires to the LEDs & the BLUE driver output to the 4 black LED wires. Use included (L)zip ties and small rectangular holes in baseplate to manage wires.
