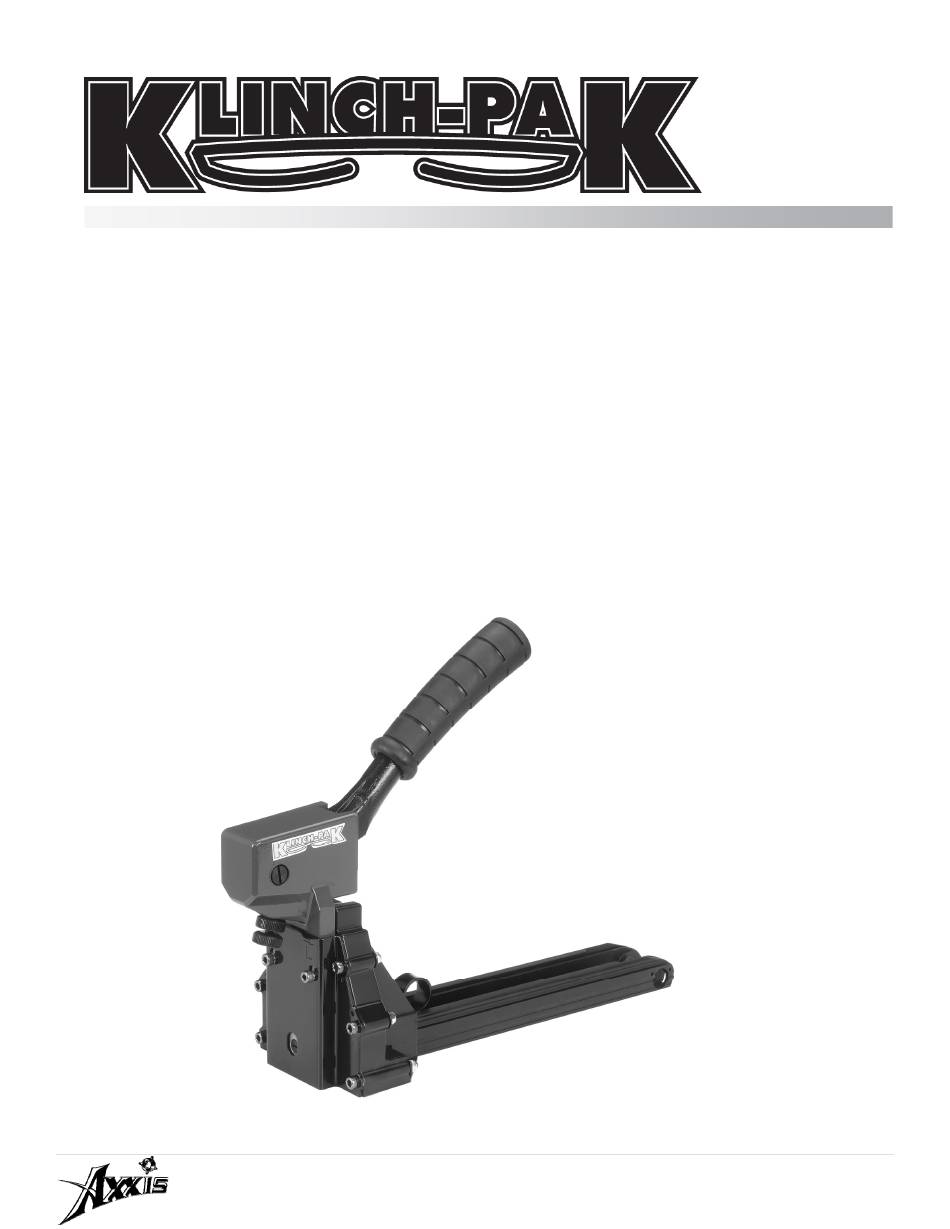

KP-SWM
Manual Carton Stapler
MANUAL/WARNING:
IMPORTANT PLEASE READ BEFORE USING TOOL
Please read the following operating instructions manual.
Refer to this manual for safety, adjustment and trouble
shooting instructions. If you have any further questions
please contact your distributor.
1320 Tower Road Schaumburg, IL 60173
Phone:
888-392-9947
Fax:
877-393-2948
Advertisement
Table of Contents
Related Manuals for KLINCH-PAK KP-SWM
Summary of Contents for KLINCH-PAK KP-SWM
- Page 1 KP-SWM Manual Carton Stapler MANUAL/WARNING: IMPORTANT PLEASE READ BEFORE USING TOOL Please read the following operating instructions manual. Refer to this manual for safety, adjustment and trouble shooting instructions. If you have any further questions please contact your distributor. 1320 Tower Road Schaumburg, IL 60173...
- Page 2 NOTES 1320 Tower Road Schaumburg, IL 60173 Phone: 888-392-9947 Fax: 877-393-2948...
-
Page 3: Table Of Contents
TABLE OF CONTENTS PAGE TOOL SPECIFICATIONS ........................4 SAFETY INSTRUCTIONS ........................5 LUBRICATION AND MAINTENANCE ....................6 ADJUSTING FOR STAPLE LEG LENGTH .................... 6 CLINCH ADJUSTMENT .......................... 7 DEPTH ADJUSTMENT ........................... 7 EXPLODED VIEW OF TOOL ........................8 PARTS LIST ............................9 TROUBLE SHOOTING ......................... -
Page 4: Tool Specifications
TOOL SPECIFICATIONS MODEL OF TOOL ………………………………………………..…………….KP-SWM DIMENSIONS （LENGTH x HEIGHT x WIDTH） ..........15" x 4.5" x 11.5" WEIGHT （WITHOUT FASTENERS） ............... 3.75 lbs COMPRESSED AIR： MAXIMUM PERMISSIBLE OPERATING PRESSURE ......N/A RECOMMENDED OPERATING PRESSURE ..........N/A AIR CONSUMPTION .................. N/A STAPLE SPECIFICATION ................. -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Warning: Read this manual and understand all safety instructions before operation of • the tool. If you have any questions, please contact our Authorized Representatives. Always wear safety goggles when operating tool. • Always handle with care. • Do not place your hand or any other body part near or around the staple clinching area. -
Page 6: Lubrication And Maintenance
ADJUSTING FOR STAPLE LEG LENGHT Loosen the set screw (526 on Schematic) with a 3 mm Hex Key • Turn adjusting rod (018 on Schematic) 180 degrees with a flat head screw drive to • the desired setting. See diagram A, for positioning explanation. Tighten Set Screw (526) when positioned to desired setting. -
Page 7: Clinch Adjustment
CLINCH ADJUSTMENT Use 3mm Rod or 2.5mm Hex Key to turn the collar (006 on Schematic) found in • the front window of the tool. Rotate clockwise for tighter clinch. Counterclockwise for the loose setting. See diagram B. DEPTH ADJUSTMENT Loosen the Front Screw (527 on the Schematic) with a 6 mm Hex Key. -
Page 10: Trouble Shooting
TROUBLE SHOOTING PROBLEM CAUSE REMEDY EXCESSIVE JAMS: ANVIL SCREWS (510) LOOSE. TIGHTEN SCREWS (510) STAPLE SIZE IS WRONG. USE THE PROPER SIZE STAPLE. UNEVEN CLINCH WRONG STAPLE SIZE CHECK FOR PROPER CHLINCH & LEG LENGTH ADJUSTMENT UNCLINCHED STAPLE ANVIL (015,016) LOOSE TIGHTEN ANVIL (015,016) ANVIL (015,016) ARE BROKEN REPLACE ANVIL (015,016) - Page 11 Products offered by Call today for more details 1320 Tower Road Schaumburg, IL 60173 Phone: 888-392-9947 Fax: 877-393-2948...
- Page 12 Visit our web site www.axxisus.com Email us @ reception.inc@axxisus.com 1320 Tower Road Schaumburg, IL 60173 Phone: 888-392-9947 Fax: 877-393-2948...
