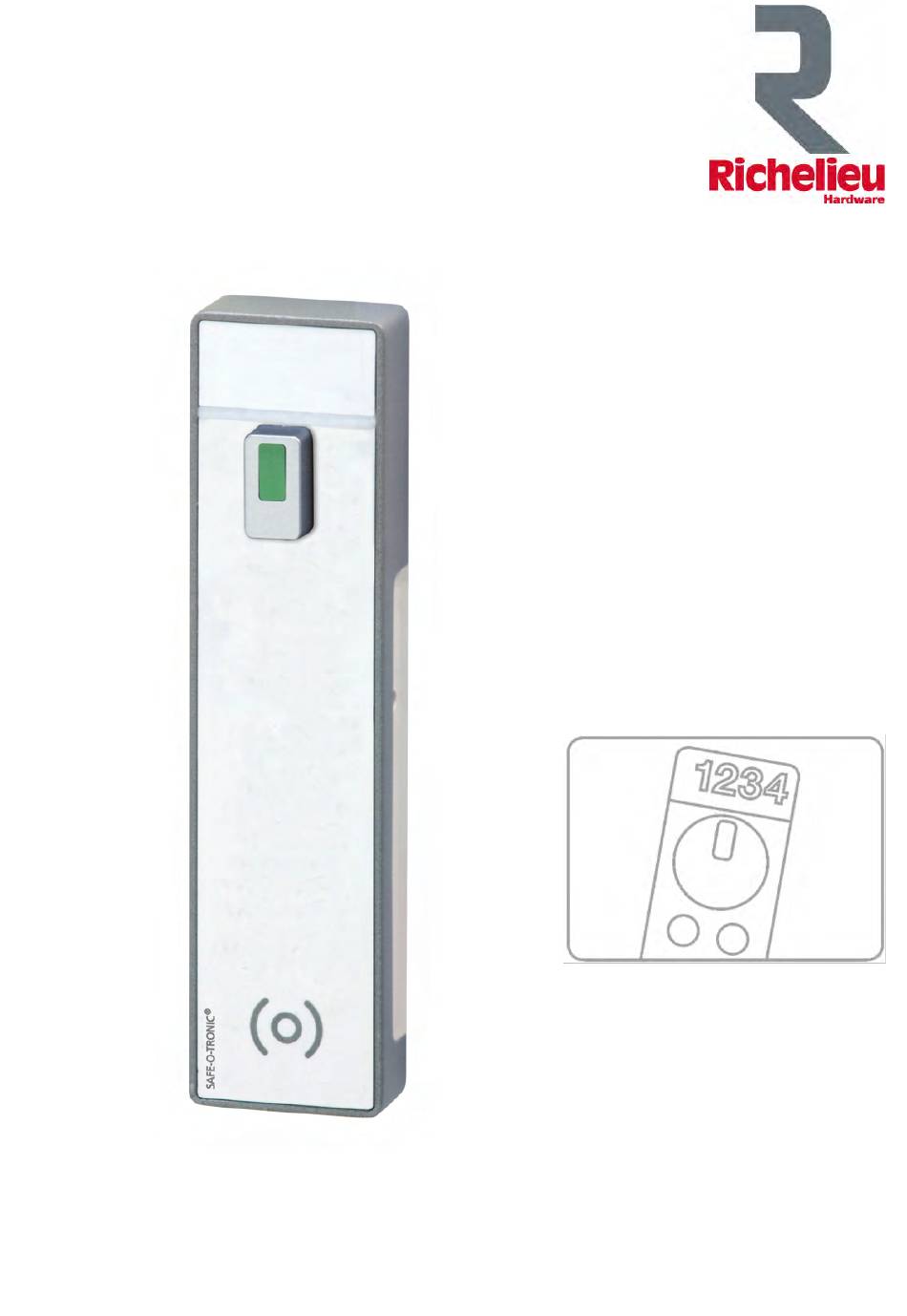

- Page 1 SAFE-O-TRONIC® access Electronic Identification and Locking System Via RFID Item No. 6330084330 Manual 6330084330 english ® SAFE-O-TRONIC access Cabinet Lock www.richelieu.com...
- Page 2 The compilation of the information in this manual is carried out to the best of our knowledge. Richelieu does not assume any liability for the correctness and completeness of the details in this manual. In particular, Richelieu cannot be held liable for consequential damages on account of faulty or incomplete details.
-
Page 3: Table Of Contents
Status messages .........................9 Troubleshooting / operating errors ....................10 Replacing the battery ........................10 Battery monitoring / battery alarm ....................10 Maintenance and care ....................... 10 Technical Data ........................11 Drill template the LS300 and LS400 .................... 12 www.richelieu.com... -
Page 4: Control Elements
6 Bush for fastening the lock to the door for door thicknesses of 10mm to 18mm 7 Bush for fastening the lock to the door for door thicknesses of 1mm to 9mm 8 Screw for fastening the lock to the door 9 Rotary knob www.richelieu.com... -
Page 5: Installation Information
6. Test the function when the door is closed. Particular attention must be paid here to the free movement of the latch. Automatic opening can only be guaranteed if the latch can be moved freely when the door is closed. www.richelieu.com... -
Page 6: Setting The Rotational Direction For Locking
(e.g. installation crosswise). If the rotary knob is to be turned to the right for locking, the grommet must be attached to the lock in such a way that the “R” opening points downward. www.richelieu.com... -
Page 7: General Information
The UserKeys must be programmed into the LS300 in this operating mode. Subsequently, every programmed UserKey is able to lock the LS300. However, unlike the “all open” operating mode, only the UserKey used for locking is able to re-open the lock. www.richelieu.com... -
Page 8: Masterkey I And Masterkey Ii
MasterKey II can be used at any time to open and close any lock or to enable a lock that has been disabled using MasterKey I Programming Tokens The lock device can be operated with pre-defined functions using the programming tokens set. Further information on the use of the individual SystemKeys is provided in a separate programming set manual. www.richelieu.com... -
Page 9: Information
MasterKey I active LEDs flash together Warning: Short-term battery twice replacement required LEDs flash in turn Battery must be replaced three times urgently. LS300 or LS400 can no longer be locked LEDs flash three Reset has been carried out times www.richelieu.com... -
Page 10: Troubleshooting / Operating Errors
Also do not use a pressure cleaner. It is also not permissible to hose down the lock, e.g. using a hose, and this can lead to destruction and exclusion of liability. www.richelieu.com... -
Page 11: Technical Data
Approx. 300g Housing dimensions incl. rotary knob (H x W x D): 151mm x 38mm x 33mm Colour of housing frame: Similar to RAL 9006 (white aluminium) Colour of the control panel: Black or white Door thickness: 1 to 18mm www.richelieu.com... -
Page 12: Drill Template The Ls300 And Ls400
6330084330 Manual Drill template Note: Depending on the printer there can be dimensional deviations when printing this drill template. Therefore, please remeasure the drill template before use. www.richelieu.com...
