Summary of Contents for RoomOutdoors Easy Edition

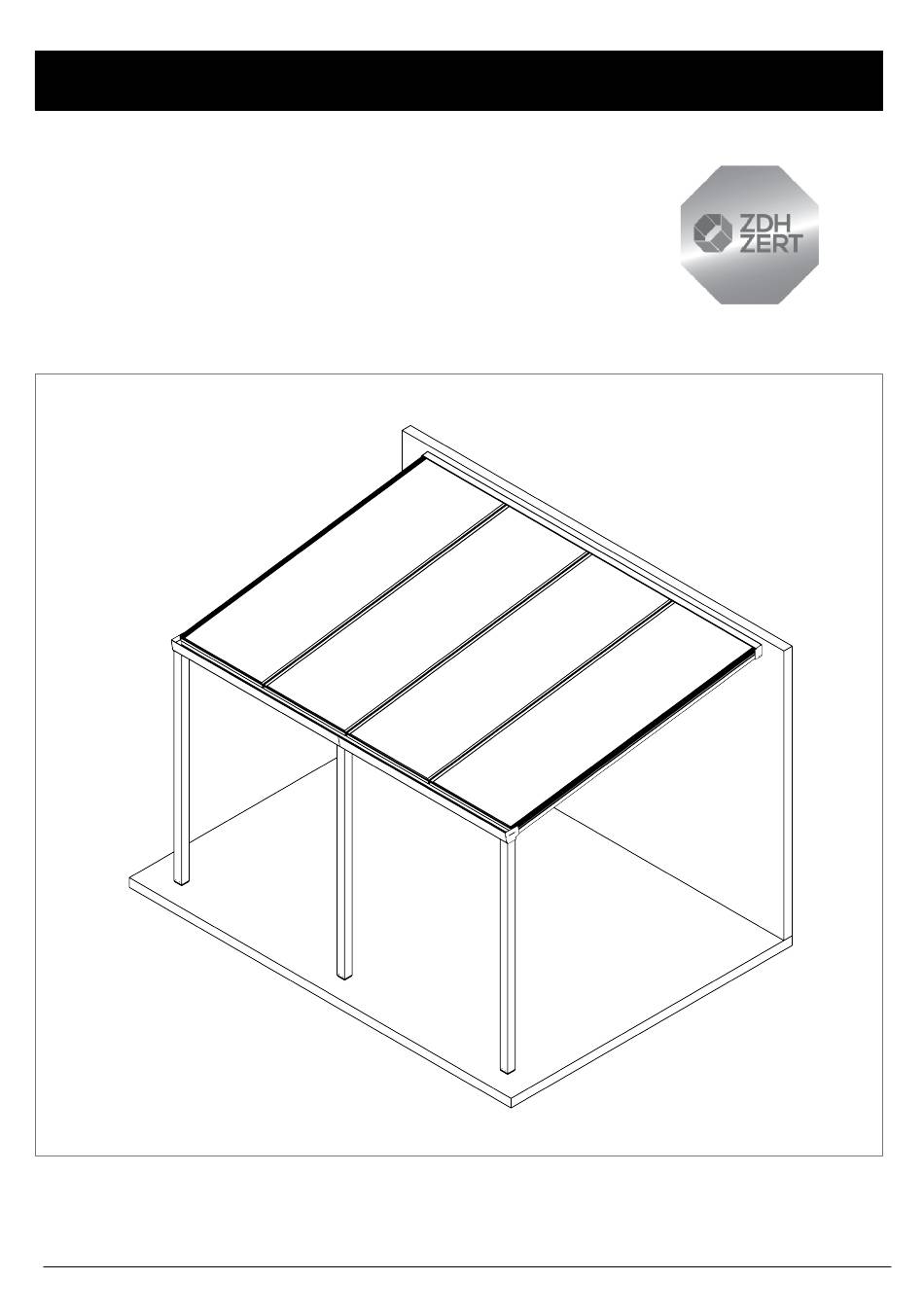

- Page 1 Easy Edition Veranda 400x300 cm EN - Assembly Instructions DIN EN 1090-1 2012 REG.-NR. 0115536 400300-07/18EN...
-
Page 2: Product Description
Easy Edition 400x300 cm EN - Installation Guide: Manual for the end user and the installer: Precautions and Safety Instructions: Dear customer, Warning! Thank you for purchasing one of our verandas. This manual - If your veranda contains lighting or heating, the electrical provides all the necessary information to quickly become familiar installation may only be carried out by a qualified installer. -
Page 3: Package Contents
Easy Edition 400x300 cm EN - Installation Guide: Contents of Packaging Open the packaging with caution !!! Check for missing or damaged contents !!! In the case of shipping damage, make photos and contact your dealer !!! PACKAGE CONTENTS: Pos. :... - Page 4 Easy Edition 400x300 cm EN - Installation Guide: Preparation of Gutter Profiles Pos 2a Gutter profile part Pos 2b Gutter profile part 4x Ø 5 2000 1905 Pos 2a Gutter profile part 2xØ 5 Pos 20 Gutter connector 2xØ 5...
- Page 5 Easy Edition 400x300 cm EN - Installation Guide: Preparation of Gutter Profiles DETAILS Ø 5 Pos 2 Pos 2 Detail Post fixing Detail Support profile fixing Detail Water outlet Ø 82 45,5 45,5 Pos 2 Ø 82 mm Drill the Gutter profiles according to the above Details and dimensions shown in step 1...
- Page 6 Easy Edition 400x300 cm EN - Installation Guide: Preparation of Wall Profiles Pos 1a wall profile part Pos 1b wall profile part 2000 Pos 1a wall profile part 2000 Pos 1b wall profile part Drill the Wall profiles according to the above dimensions and Details shown in step 4...
- Page 7 Easy Edition 400x300 cm EN - Installation Guide: Preparation of Wall Profiles DETAILS and Posts Details Wall- and Support profile fixings Pos 10 Place rubber seal firmly under the edge of Wall profile Pos 1 Ø 8,5 Ø 5 Wall fixings are NOT included, they must be purchased separately because each situation requires different fixings and depends on the substrate or construction to which it needs to be affixed.
- Page 8 Easy Edition 400x300 cm EN - Assembly Instructions: Preparation of Angle Plates and Polycarbonate Roofing sheets 1 piece per Veranda 3 piece per Veranda 1 piece per Veranda Ø 5 Ø 5 Ø 5 Pos 7a Pos 7b Pos 7c...
- Page 9 Easy Edition 400x300 cm EN - Installation Guide: Setting out Roof supports and Section SETTING OUT SUPPORTS 917 mm 945 mm 945 mm 917 mm 1000 mm 1000 mm 1000 mm 1000 mm 4000 mm Pos 10 Pos 10 Pos 10...
- Page 10 Easy Edition 400x300 cm EN - Assembly Instructions: preparation and setting out of U brackets Pos 1a Pos 18 Pos 18 Pos 18 Drill holes in the U brackets Diameter dependent upon fixings Pos 18 Pos 18 Attach the U-elements to the floor and the 1st part of the Wall profile according to the above dimensions! Floor and wall fixings are NOT included, they must be purchased separately because each situation requires different fixings and depends on the substrate or construction to which it needs to be affixed.
- Page 11 Easy Edition 400x300 cm EN - Assembly instructions: checking dimensions and squareness Pull the rubber into the Wall profile Pos 1a Pos 11 Pos 1b U-bracket Pos 18 Mount the 2nd part of the Wall profile level on the wall!
- Page 12 Easy Edition 400x300 cm EN - Assembly Instructions: fixing Rubber into the Wall profile and placement of Posts Pos 1a Pos 1b Pos 5 Pos 5 Pos 18 Pos 5 Pos 18 Temporary 7 mm shims Slide the first 2 posts over the U brackets and keep them 10 mm from the floor due to drainage!
- Page 13 Easy Edition 400x300 cm EN - Assembly Instructions: assembly of End plates and Gutter connectors Thoroughly degrease the Gutter and Gutter connector Pos 1a Pos 4 Pos 1b Thoroughly degrease the Gutter and Gutter connector Pos 2a Pos 20 Pos 5...
- Page 14 Easy Edition EN - Assembly Instructions: assembly of first intermediate Support and sealing the Gutter End plate Pos 8 Pos 1a Pos 4 Pos 1b Pos 9 Pos 3 Pos 2a Pos 5 Pos 20 Pos 5 Assemble the first intermediate support (cut to size), check again to ensure everything is still straight, square and level!
- Page 15 Easy Edition 400x300 cm EN - Assembly Instructions: fixing Supports to the Gutter and Wall Profile Pos 8 Pos 1a Pos 17 Pos 1b Pos 9 Pos 3 Pos 2a Pos 20 Pos 5 Pos 2b Pos 5 Pos 5...
- Page 16 Easy Edition 400x300 cm EN - Assembly Instructions: assemble 2nd part of Gutter and last Post Pos 8 Pos 1a Pos 4 Pos 17 Pos 1b Pos 9 Pos 3 Pos 2a Pos 5 Pos 2b Pos 5 Pos 5...
- Page 17 Easy Edition 400x300 cm EN - Assembly Instructions: assemble Gutter connector and right Support Pos 8 Pos 1a Pos 4 Pos 17 Pos 1b Pos 9 Pos 3 Pos 2a Pos 5 Pos 4 Pos 2b Pos 5 Pos 5...
- Page 18 Easy Edition 400x300 cm EN - Assembly Instructions: assemble remaining Supports and End plates Pos 8 Pos 1 Pos 4 Pos 17 Pos 17 Pos 9 Pos 3 Pos 8 Pos 3 Pos 2 Pos 5 Pos 4 Pos 9...
- Page 19 Easy Edition 400x300 cm EN - Assembly Instructions: installing remaining Roofing sheets, Cover seals and Leaf trap Pos 1 Pos 17 Pos 17 Pos 17 Pos 17 Pos 2 Pos 5 Pos 4 Pos 5 Pos 5 Detail trimming the Cover seals...
- Page 20 Easy Edition 400x300 cm EN - Assembly Instructions: fixing the Angle plates Pos 7a Pos 7b Pos 7c Pos 1a Pos 17 Pos 17 Pos 17 Pos 17 Pos 2 Pos 5 Pos 4 Pos 5 Pos 5 Pos 7a...
- Page 21 Easy Edition 400x300 cm EN - Assembly Instructions: removing and disposing of Protective film from Roofing sheets Think about your safety, do not walk on the Polycarbonate roofing sheets !! Your veranda is now ready for use. We wish you much pleasure and enjoyment from your purchase !
- Page 22 !! post Pos 5 Extra Leaf traps Pos 19 are available from your Easy Edition Dealer !! fill space with U bracket Pos 18 acts as an anchor, screwed onto side of post...
- Page 23 EN - Installation Guide: OPTION! plastic Ground anchors with Rainwater discharge ALTERNATIVE GROUND FIXING and WATER DRAINAGE by means of Plastic Ground Anchors, OPTIONALLY AVAILABLE from your Easy Edition Dealer !!! Plastic Ground anchors with Rainwater discharge connection Composite Detail !!
