Summary of Contents for QJS Technifoamer 40

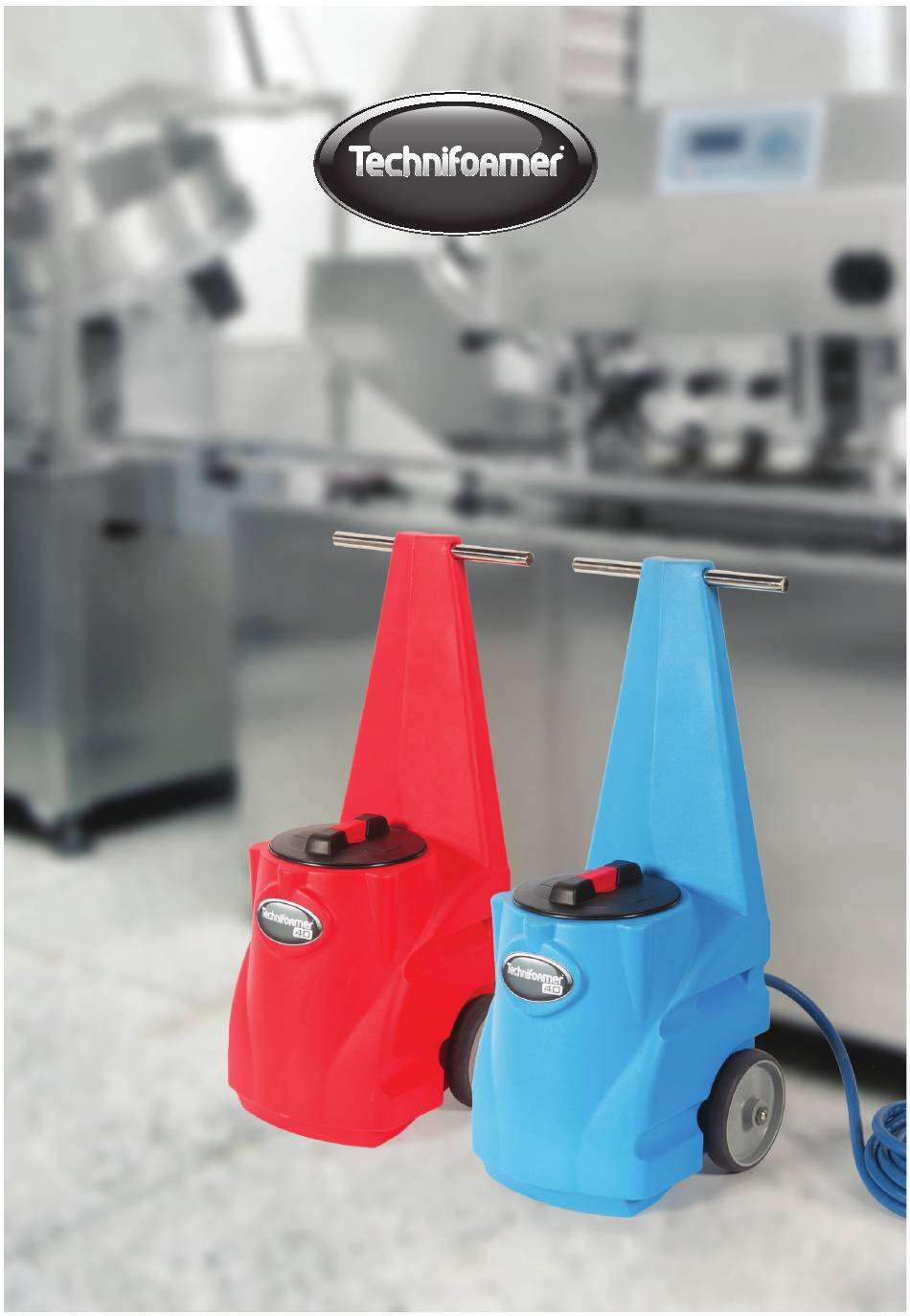

- Page 1 INSTRUCTION MANUAL...
- Page 2 GENERAL 1.1 INTRODUCTION Thank you for purchasing a Technifoamer 40 which has been developed for the application of foaming products in the food, pharmaceutical and agricultural industries. In order to achieve the best possible results and reliable service from your Technifoamer...
- Page 3 1.3 PROTECTION FROM FROST The Technifoamer 40 must never be exposed to frost as may cause damage to the equipment. Declaration of conformity We declare that the Technifoamer is in conformity with the following EU directives:...
- Page 4 Always wear protective clothing in accordance with the instructions provided with the cleaning chemicals. Do not start the equipment until all operators who are to use the Technifoamer 40 have read and fully understood the instructions. Never point the hose/nozzle at any person.
- Page 5 SPARE PARTS DETAIL ‘A’ DETAIL ‘A’...
- Page 6 Viton 75 Washer 32mm x 13mm x 1mm 9246 M16 A2 Stainless Steel Half Lock Nut 9247 Technifoamer Hygienic Wheel 9186 1/2 st st twist grip valve 9410 Technifoamer 40 st st axle 9402 Technifoamer Lid Ring 9182 Technifoamer Basket Filter 9183 Technifoamer Lid 9184...
- Page 7 OPERATION START UP & USE Fill tank with chemical solution at the correct dilution (check with chemical supplier) Ensure on/off valve at hose end is turned off. Connect compressed air supply to air inlet (max 7 bar) Turn ‘dry/wet’ control fully clock wise. Open valve at hose end and wait for fluid to emerge.
- Page 8 Max Hose length Min Hose ID 13mm Weight and dimensions Weight Weight (empty) 21kg Height 965mm Width 400mm Depth 400mm Capacity 40 Litres QJS, Saxilby Enterprise Park, Lincoln LN1 2LR Tel 01522 703703 Fax 01522 703773 Email info@qjs.co.uk Web www.qjs.co.uk | www.technifoamer.com...
