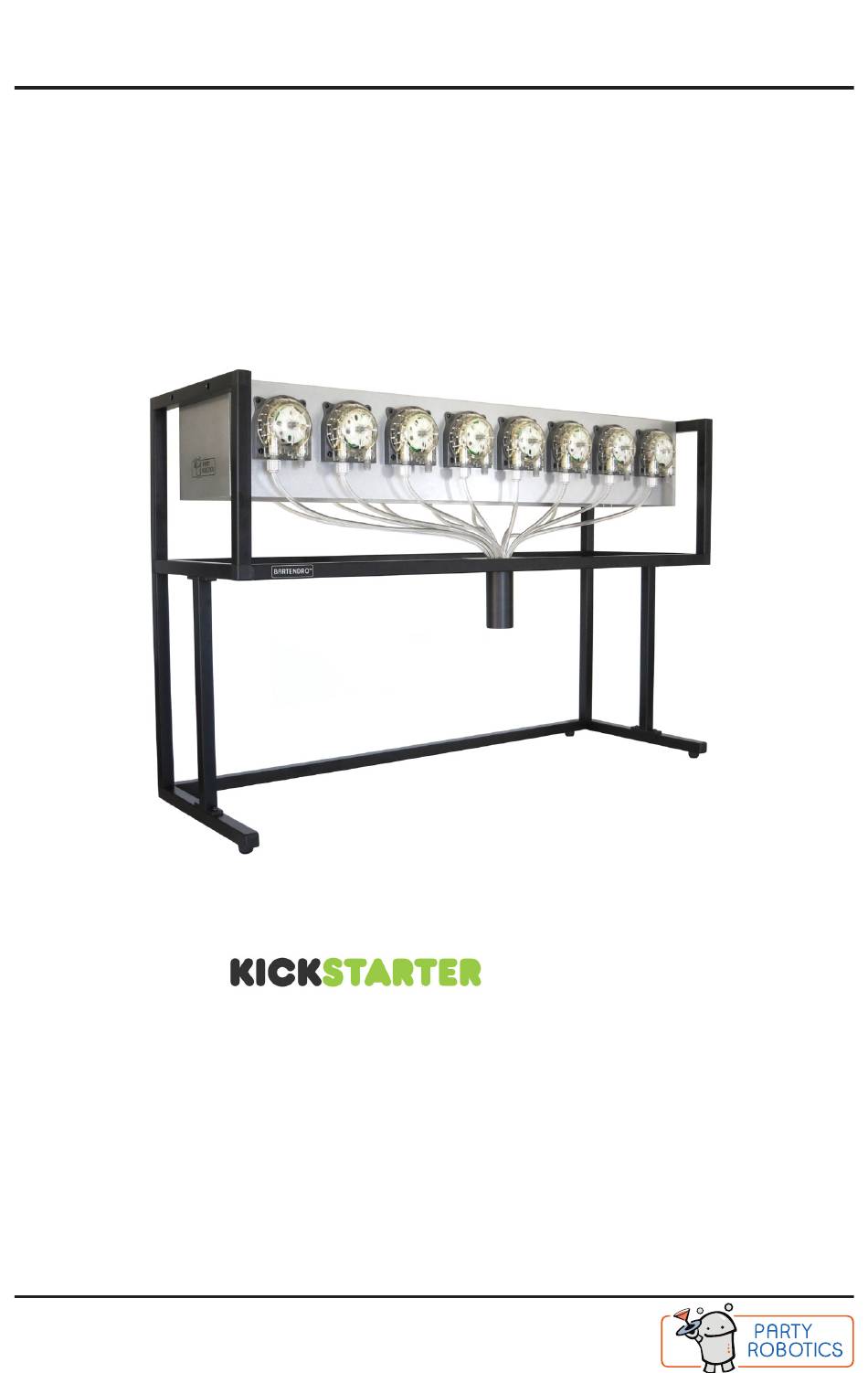

- Page 1 Bartendro Getting Started Guide Model Number: B015V1 EDITION Thanks for backing us! Please read this guide before operating your Bartendro Cocktail Bot v 1.0 www.partyrobotics.com...
-
Page 2: Important Precautions
Bartendro Congratulations! You are one of the first owners of the latest in cocktail dispensing technology. Bartendro Cocktail Bots and Dispensers pour a variety of liquids precisely, and you can control them from phones or tablets. Whether you set up your bot to host a party, or use it for mixing flavored syrups into sno-cones, it will be sure to liven things up. -
Page 3: What's Included
Bartendro Bartendro B15 Contents What’s Included Left Side of Frame Right Side of Frame Frame Back Frame Foot Frame Front Housing 24V, 200W Power Supply with AC Power Cord Alcohol Pad Wire Clips (4) Dispenser Compression Nuts (14) Hole Plugs (4) Screws (4) Chopstick (tubing replacement tool) Level Sensor Tubing Adapters (15) - Page 4 Bartendro Assembly Instructions Step 1 Assemble Frame Place the right side of the frame (B) against a solid surface which will not scratch the metal. Press the frame foot (D), back (C) and front (E) pieces into the fittings on the right side (B).
- Page 5 Bartendro Step 2 Attach Housing to Frame Place the completed frame upside-down onto a smooth, flat surface and place the housing in-between the frame as seen below. Line up the 4 holes in the frame with the holes in the housing. Attach the frame to the housing (F) using the screws (L) and a Phillips screwdriver.
- Page 6 Bartendro Step 3 Attach Wire Clips (optional) We’ve included some adhesive wire clips (I) to keep the power supply cable neatly tucked behind the frame. Use the alcohol pad to clean the surface before you apply the clips so that they stick well. Remove the backing, and attach where desired.
- Page 7 Bartendro Note: Tablet Mounting (optional) There are two holes on the right side of the frame designed to fit RAM-B-309-1 from www.rammount.com. This part is not included, and if you use it, you will also need to get an arm and specific cradle for your device.
- Page 8 Bartendro Step 6 Install Output Tubing Repeat step 5 for the tubing labeled “Output Tubing”, this time install the tubes onto the left (output) port of each of dispenser. Each piece of tubing is a Front View unique length and has a number on its bag that should 10 9 be matched with the dispenser...
- Page 9 Bartendro Step 8 Spout Fine Tuning Remove the spout by pulling straight down on it. Take care to not move it sideways before reaching the bottom of the tubing separator or you may cause damage. Pull the tubes from the spout bracket straight down so that they go through the lower tubing separator.
- Page 10 Bartendro Step 9 Install Sensor Tubing (optional) Find the tubing labeled “Sensor Tubing for Front Row” and “Sensor Tubing for Back Row”. Install the clear tubing into the barbed fitting of each Level Sensor Tubing Adapter (N). Install the open end of the adapter (N) to the left sensor port of each dispenser.
- Page 11 Bartendro Step 11 Insert Tubing into Bottles Insert each dispenser’s input tube (with or without sensor tube) into an opened bottle until the tube(s) reach the bottom. If using Bottle Toppers, press them down into the neck of the bottle until they are snug and snap the Bottle Topper Caps onto them.
-
Page 12: Open Browser
Bartendro Connect to Bartendro Find Network and Connect Using a WiFi-enabled device, find the “bartendro” WiFi network by looking for it in your settings, and connect to it. The first time you connect may take as long as 30 seconds to establish the connection. Open Browser iPhones and iPads will automatically display the Bartendro user interface (UI) soon after they connect to the Bartendro network. - Page 13 Bartendro Getting to the Admin Menu To get to the Admin menu, find the hidden link at the bottom left corner of the main menu, or type “bartendro/admin” in the address bar of your browser. When prompted use the default: Name: bartendro Password: boozemeup Note: You can change the login name and password by going to...
-
Page 14: Cleaning And Maintenance
Bartendro Cleaning and Maintenance For longest tube life, you should clean all of Bartendro’s tubing after every use. Step 1 You will need three containers. Fill one with hot soapy water, one with clean water, and keep one empty for collecting discarded liquids. Step 2 Go to Admin >... -
Page 15: Troubleshooting
Bartendro Troubleshooting Dispenser is blue / green / blank after power up This is normal. The lights will remain in this mode until the Bartendro is booted and establishes a proper connection with the dispensers (which takes about one minute). If after a minute the lights don’t begin fading in and out, make sure the SD card is inserted properly. - Page 16 Bartendro Having Issues? If you didn’t find what you were looking for in this manual, try some of these options: • Search the forums at www.partyrobotics.com/forums. We en- courage you to post your questions so that others may learn from them.
