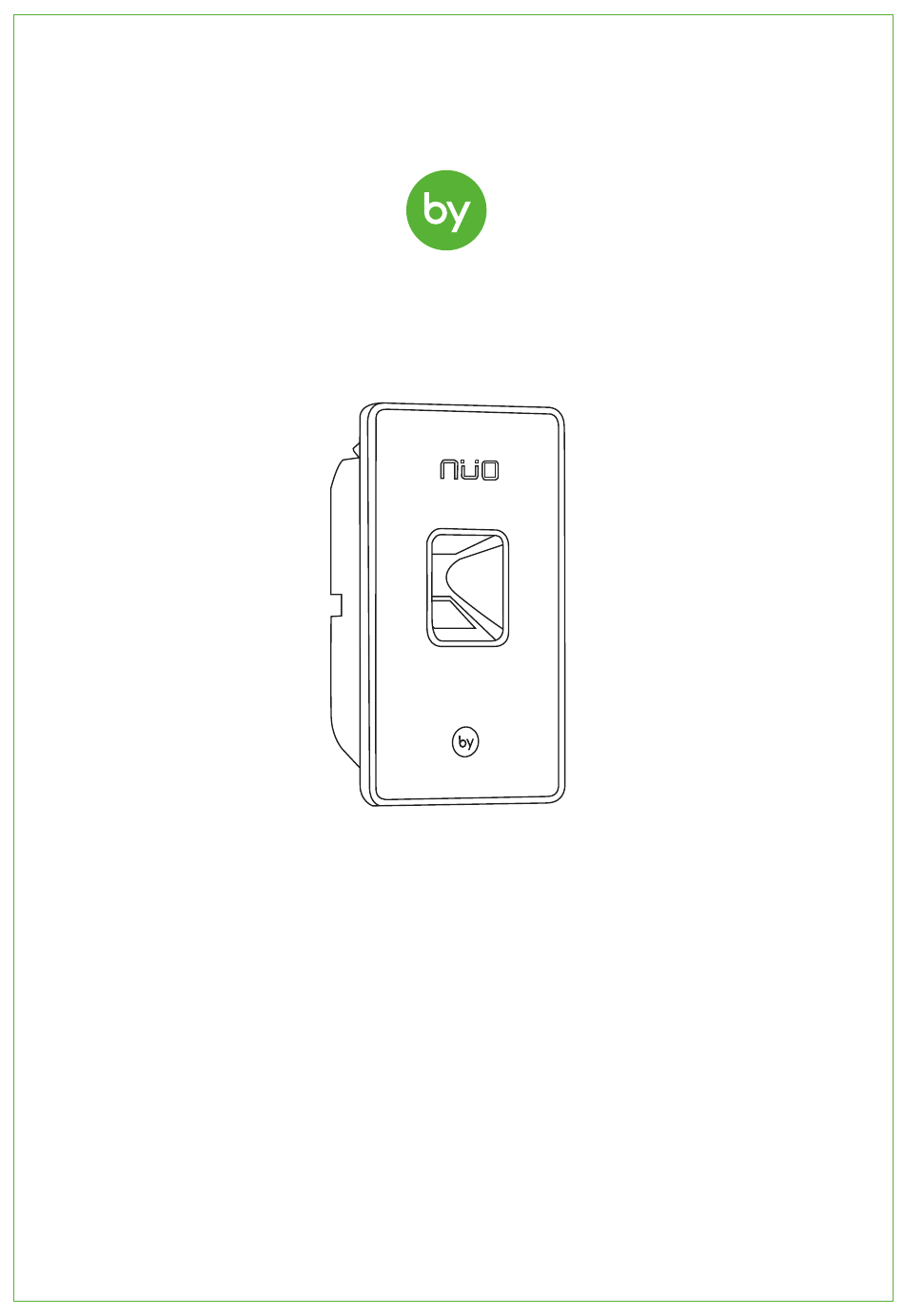

- Page 1 Installation manual NÜO PASS 42106 | 42142...
-
Page 3: General Features
NÜO PASS Manual Introduction Features GENERAL FEATURES NÜO PASS (Ref. no. 42106 and 42142) - - Combined biometrics reader with proximity. - - High resolution 500 dpi optical fingerprint sensor. - - Maximum security proximity reader for MIFARE Plus® cards and MIFARE®... -
Page 4: Technical Specifications
NÜO PASS Manual Introduction Features Technical Specifications TECHNICAL SPECIFICATIONS NÜO PASS: INPUT VOLTAGE 24 VDC (11 - 28 VDC) MAXIMUM POWER READING DISTANCE 3 - 5 cm FINGERPRINT SENSOR TYPE Optical SENSOR RESOLUTION 500 dpi MAX. NO. FINGERPRINTS 9,500 fingerprints (1:1) - 1,000 (1:N) -
Page 5: Wiring Specifications
TYPE OF WIRING AND WIRING DISTANCE: The NÜO PASS incorporates a male overhead connector. NÜO PASS is supplied with a 3.5 metre piped cable with 4 wires (2 twisted pairs) and a female connector at one end to correctly connect it. -
Page 6: Installation
- - INSTALLATION ON BUILT WALLS: 3) Using a level, make a hole in the wall with 4) Insert the flush mount support and pass the the dimensions detailed in the diagram. Pass cable through one of the holes, then connect the connecting cable through and grout the the assembly. - Page 7 1) Follow the initial steps listed in page 6. 2) Make a hole in the plasterboard with the 3) Insert the flush mount support and pass the dimensions detailed in the diagram. cable through one of the holes, then secure it in place in the plasterboard using the tabs.
- Page 8 5mm wall plugs. wall plugs and the screws supplied. Distance between holes 130 x 70mm Mounting box: 42170 4) Connect the wiring pipe and pass the cable 5) Tighten the screws and place the front through, connecting the equipment. panel.
- Page 9 NÜO PASS Manual Installation NÜO PASS Installation in other environments - - INSTALLATION IN OTHER ENVIRONMENTS: 1) Follow the initial steps listed in page 6. 2) Make 4 M3 holes and another hole with the 3) Connect the cable to the equipment and dimensions detailed in the diagram, taking the fasten it using screws.
-
Page 10: Reader Wiring
NÜO PASS Manual Installation NÜO PASS Wiring NÜO PASS readers can be directly connected to two types of devices depending on the architecture of the installation: - - Connection to a Wili. - - Connection to a single door controller. - Page 12 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipmentÿ Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
