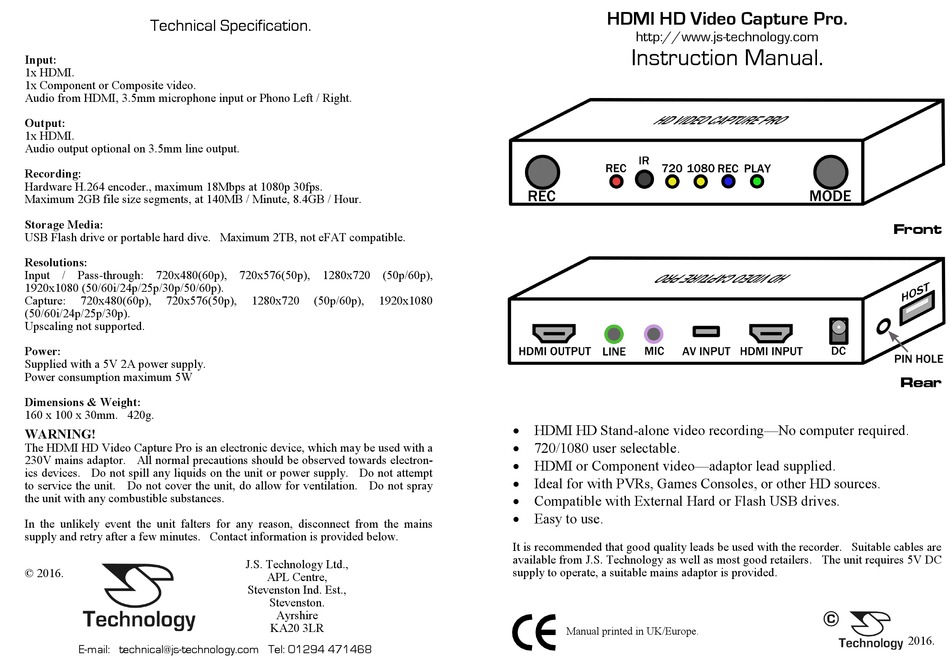

Technical Specification.
Input:
1x HDMI.
1x Component or Composite video.
Audio from HDMI, 3.5mm microphone input or Phono Left / Right.
Output:
1x HDMI.
Audio output optional on 3.5mm line output.
Recording:
Hardware H.264 encoder., maximum 18Mbps at 1080p 30fps.
Maximum 2GB file size segments, at 140MB / Minute, 8.4GB / Hour.
Storage Media:
USB Flash drive or portable hard dive. Maximum 2TB, not eFAT compatible.
Resolutions:
Input / Pass-through: 720x480(60p), 720x576(50p), 1280x720 (50p/60p),
1920x1080 (50/60i/24p/25p/30p/50/60p).
Capture:
720x480(60p),
720x576(50p),
(50/60i/24p/25p/30p).
Upscaling not supported.
Power:
Supplied with a 5V 2A power supply.
Power consumption maximum 5W
Dimensions & Weight:
160 x 100 x 30mm. 420g.
WARNING!
The HDMI HD Video Capture Pro is an electronic device, which may be used with a
230V mains adaptor. All normal precautions should be observed towards electron-
ics devices. Do not spill any liquids on the unit or power supply. Do not attempt
to service the unit. Do not cover the unit, do allow for ventilation. Do not spray
the unit with any combustible substances.
In the unlikely event the unit falters for any reason, disconnect from the mains
supply and retry after a few minutes. Contact information is provided below.
© 2016.
E-mail: technical@js-technology.com Tel: 01294 471468
1280x720
(50p/60p),
1920x1080
J.S. Technology Ltd.,
APL Centre,
Stevenston Ind. Est.,
Stevenston.
Ayrshire
KA20 3LR
HDMI HD Video Capture Pro.
http://www.js-technology.com
Instruction Manual.
HDMI HD Stand-alone video recording—No computer required.
720/1080 user selectable.
HDMI or Component video—adaptor lead supplied.
Ideal for with PVRs, Games Consoles, or other HD sources.
Compatible with External Hard or Flash USB drives.
Easy to use.
It is recommended that good quality leads be used with the recorder. Suitable cables are
available from J.S. Technology as well as most good retailers. The unit requires 5V DC
supply to operate, a suitable mains adaptor is provided.
Manual printed in UK/Europe.
Front
Rear
2016.
Advertisement
Summary of Contents for J.S. Technology HDMI HD VIDEO CAPTURE PRO
- Page 1 HDMI HD Stand-alone video recording—No computer required. WARNING! 720/1080 user selectable. The HDMI HD Video Capture Pro is an electronic device, which may be used with a 230V mains adaptor. All normal precautions should be observed towards electron- HDMI or Component video—adaptor lead supplied.
- Page 2 Or for simple playback, the device can be used to play back recordings without being edited. Connection to the HDMI HD Video Capture Pro. System Menu—Storage Format. The recorder has two inputs, the HDMI input and the A/V Input (Component or If required, the external storage can be formatted.
- Page 3 Setup Menu. Within the Setup menu there are four options: System. Audio. Video. Misc. Most options within these menus are self explanatory, or are probably best left at their default setting. For brevity only the salient ones will be discussed. Figure above: Connection of the HD Video Capture is via an adaptor lead for analogue video, or HDMI lead for digital.
- Page 4 Selecting Media. Playback Menu. After pressing the Mode button, the recorder will be in Playback mode and a menu will be There are three menu options which allow for the playing back of media from the external displayed. There are four options: drive.
