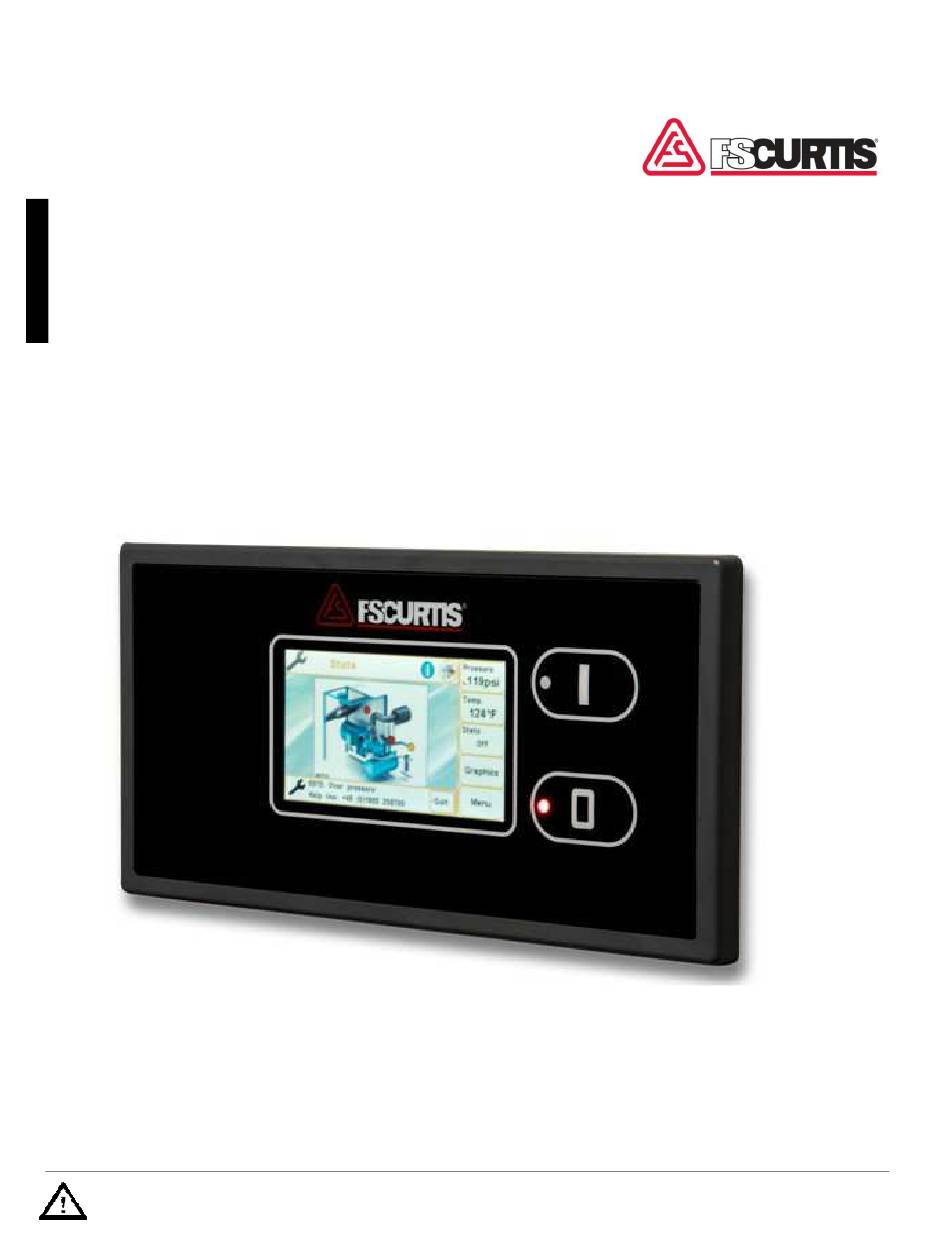

CAP 837 Service Manual
October 2017
Rev. D
Nx
Series

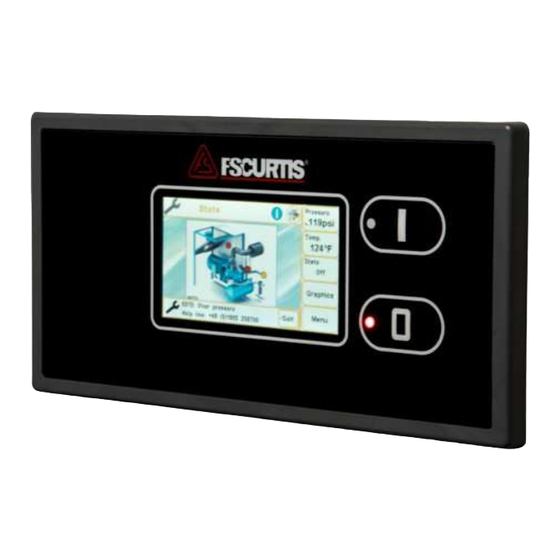

iCommand – Touch Controller
Service Manual
WARNING
Personal injury and/or equipment damage will be result by failing to pay attention to the vital safety information and
instructions in this manual. Carefully read, understand, and retain all safety information and instructions before operating this
compressor.
