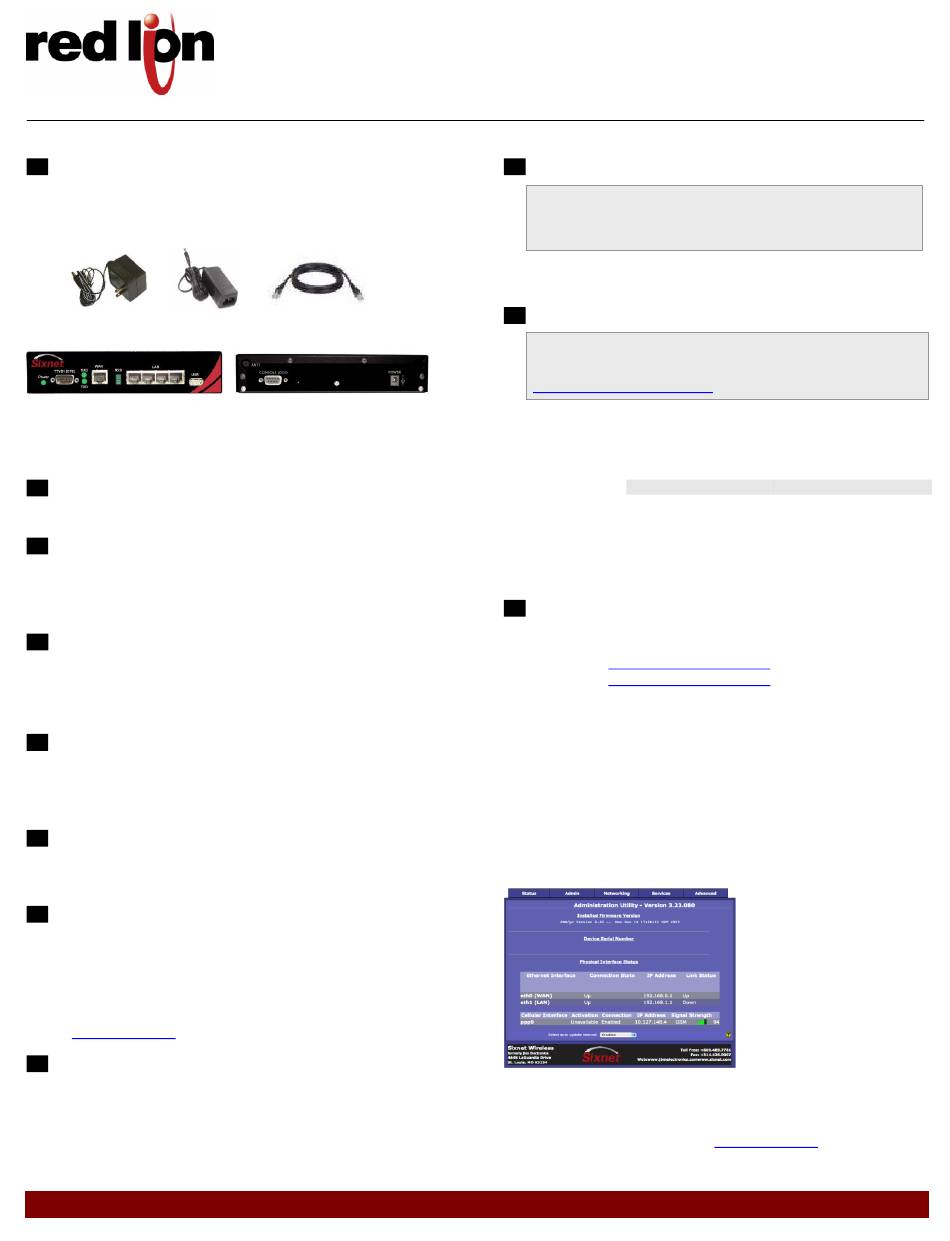

UNPACKING INSTRUCTIONS
Unpack the Red Lion Wireless unit and verify the following
1
components are enclosed for the EnterprisePro
(Figure A).
Figure A: Package Contents R-3100 or R-1100:
Power Supply
Power Supply*
(United States)
(International)
Not Shown: Antenna included with model R-3100 or R-1100
* Non-US power supplies require customer-supplied power cord to connect power
to AC power outlet
If any items are missing, please contact Red Lion
2
Wireless at +1 877 432 9908.
Optional item to use for Out-of-Band (OOB) Management
3
function of the Red Lion Wireless modem: Cisco DB9 to
RJ45 Console Cable.
PREPARATION AIRCARD MODEL R-3100 OR R-1100
Verify that you have one of the following supported cellular
1
cards: Sierra 598U, Novatel U760, AT&T Mercury C885. If
your card is not listed, see for complete list of supported
USB Aircards.
Using the instructions that accompanied the USB aircard,
2
verify that the aircard is properly activated and functioning
correctly prior to installing the card into the Red Lion
TM
EnterprisePro
Router.
Attach power supply connector to the "barrel" power outlet
3
on the back of the unit and connect power supply plug to an
AC power outlet.
Please allow 2-4 minutes for the unit to recognize the
5
cellular data card and connect to the cellular network. When
this has occurred the Signal Strength LEDs should light up
from 1 to 4 LEDs. Red Lion Wireless recommends 2 bars or
greater for proper functionality of the unit. If signal strength
is showing 1 LED or showing the top and bottom LEDs
flashing (1 and 4 positions), please refer to the User Manual
at www.redlion.net.
Connect to the Ethernet RJ45 port for network connectivity.
6
20 Willow Springs Circle • York, PA 17406 • USA • T +1 717 767 6511 • F +1 518 877 8346 • customer.service@redlion.net
TM
Router
Ethernet Cable
(6' CAT 5E 568B)
USB AIRCARD R-3100 or R-1100
ACCESSSING THE GRAPHICAL USER INTERFACE (GUI)
1
Connect PC to EnterprisePro
The Ethernet Port on the EnterprisePro
sensing", which means a straight through or cross-over
cable can be used to connect to the Red Lion router.
Connect a CAT-5 Ethernet cable between the local PC and
the unit's Ethernet port. Verify the link LED is lit.
Setup PC IP Address
2
For assistance with configuring your PC, see the appropriate
Microsoft Windows support webpage listed at:
http://support.microsoft.com.
PC to Ethernet Interfaces
Select "Use the following IP address" and fill in the blank
fields with the information below:
Ethernet 0
IP address
192.168.0.2
Subnet mask
255.255.255.0
Default gateway
192.168.0.1
Preferred DNS
192.168.0.1
Access Graphical User Interface
3
Open a web browser & enter the following in the
address bar:
Ethernet 0:
http://192.168.0.1:10000/
Ethernet
1:
http://192.168.1.1:10000/
LOGIN INSTRUCTIONS
• User Name enter:
admin (lowercase letters)
• For Password enter:
six digit serial number of unit (lowercase)
Upon successfully logging in you will see the following screen
Figure B: GUI:
You are now connected to the Management GUI. If you should
see anything other than the GUI screen shown, please refer
to the User Manual located at: www.redlion.net.
QUICK START GUIDE
TM
EnterprisePro
Router
TM
Router
TM
Router is "auto-
Ethernet 1
192.168.1.2
255.255.255.0
192.168.1.1
192.168.1.1
www.redlion.net
.
