HOW TO INSTALL F-CONNECTORS ON CABLE
To install the F-connectors,
strip the ends of the RG-59
cable as shown in Figure A.
(Note the ends of the original
30' cable have been factory
pre-stripped for convenience.)
Pull back braid over jacket.
Make sure no braid touches
center conductor. Figure B.
Screw the F-connector onto
the cable jacket until the cen-
ter conductor extends
1/8" past end of connector.
Figure C.
for female or extend for male
Shakespeare Electronic Products Group
Printed in U.S.A. © 2010 Shakespeare Company
6111 Shakespeare Rd., Columbia, SC 29223
RECOMMENDATIONS FOR INSTALLING CABLE
Minimum Bending Radius: 3" for RG-59. Tighter bends
will cause shorts and change impedance.
Pulling Tension: 75 pounds maximum. Leave no tension
on cable after it is installed.
Staples or Clamps: The use of flat staples with coax ca-
ble is damaging to the cable. Only round headed staples
can be used. Any clamps or securing devices used with
Figure A
coax should grip the cable evenly about the circumference
without crushing the cable.
Exposure to High Heat: Maximum temperature limit
is 176° F (80° C). Keep cable away from heating vents,
engine compartments and engine exhaust pipes.
Figure B
Crushing: Coax should not be installed in a manner that
would allow it to be crushed. It should not be stuffed or
wedged into areas where the cable could be pinched by
.
the flexing of the boat hull or cabin
Exposure to Moisture: The cable jacket will withstand
most outdoor environments. However, connections and
splices must be sealed against water entry.
Figure C
NOTE: Please read all instructions before beginning installation!

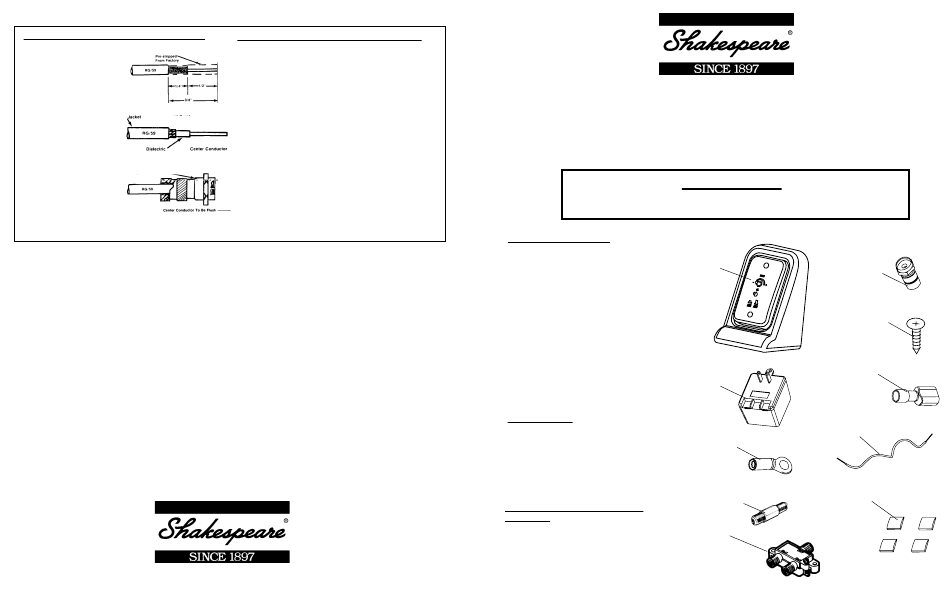

CP2025A HARDWARE KIT
1.
(1) 2025-CP Control Box
2.
(1) Plug-in Transformer
Input: 120 VAC, 60 Hz
Output: 16 VDC, 140 ma
3.
(2) Insulated Ring Terminals
4.
(2) VB-1000 Voltage Blocks
5.
(1) 2-Way Splitter
6.
(4) Twist-on Type F-Connectors
7.
(4) #6 5/8" Screws
8.
(4) Isulated Quick-Disconnect
Terminals
9.
(1) 5' 18 GA Insulated Wire
10. (4) 1" Velcro Strips
TOOLS NEEDED
#2 Phillips screwdriver
7/16" wrench
Crimping tool
Medium slot screwdriver
Wire stripper
REQUIRED ITEMS NOT INCLUDED
IN THIS KIT
FOR TWO OR MORE TV SET SYSTEMS
(1) PS-9381 Power Supply
NOTE: VB-1000 & SP-1002 are Winegard
model numbers.
2451257 Rev.1 8/10
Model 2025-CP
TV CONTROL BOX
WARNING!
To prevent FIRE or SHOCK HAZARD, avoid exposure
of control panel to moisture.
#1. 2025-CP
CONTROL BOX
#2. PLUG-IN
TRANSFORMER
#3. INSULATED RING
TERMINALS
#4. VB-1000 VOLTAGE BLOCK
#5. SP-1002 TWO WAY
SPLITTER
#6. TWIST-ON
F-CONNECTOR
#7. 5/8" SCREWS
#8. INSULATED
QUICK-DISCONNECT
TERMINALS
#9. 18 GA INSULATED WIRE
#10. VELCRO STRIPS
