Instructions for use
REF 090-620-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Compact Megaplus and is the answer not in the manual?

Questions and answers

Related Manuals for DENTAURUM Compact Megaplus

Summary of Contents for DENTAURUM Compact Megaplus

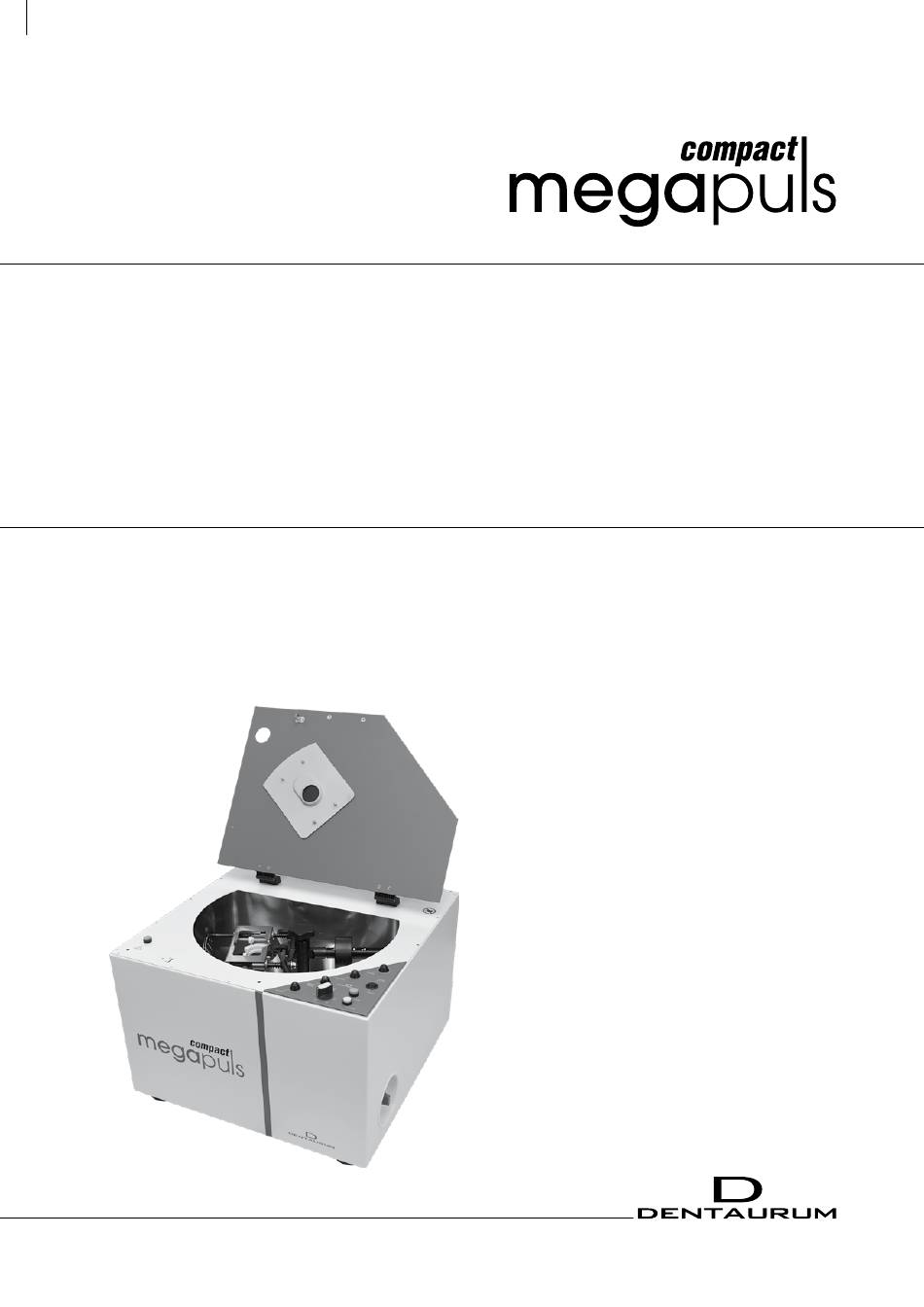

  • Page 1 Instructions for use REF 090-620-00...

  • Page 2: Table Of Contents

    Contents Declaration of Conformity ........................17 Machine description ........................18–19 Safety instructions ..........................20 3.1. Correct use ............................20 3.2. Hazard warning symbols ........................20 3.3. Warranty and liability ..........................20 3.4. Owner responsibility ..........................20 3.5. Personnel responsibility ..........................21 3.6. General advice on operating safety ......................21 3.7.

  • Page 3: Declaration Of Conformity

    Declaration of Conformity EC-Declaration of Conformity DENTAURUM GmbH & Co. KG Turnstr. 31 75228 Ispringen hereby declares that the design and construction of the laboratory equipment described below, including the version marketed by us, comply with the basic regulations governing safety and health as stated in the EC Guidelines.

  • Page 4: Machine Description

    2. Machine description 1 Automatic circuit breaker 2x16 A 2 Mains connection socket 230V for water table 3 Mains connection 230 V 50/60 Hz Fig. 1: Back of machine with connections 4 Protective glass 5 Control panel 6 „STOP“ button 7 Mains switch Fig.
  • Page 5 16 Balancing weights 17 Star-shaped nut to lock the casting arm 19 Tightening lever for casting ring 18 Induction coil 20 Insert for melting crucible 21 Insert for casting ring Fig. 4: Casting chamber with centrifugal arm Fig. 5: The water filter is fitted at the fresh water inlet...

  • Page 6: Safety Instructions

    When a Dentaurum product is finally no longer in use the disposal regulations of that particular country apply. Dentaurum or the dental trade is available to answer questions regarding the correct disposal of any specific product.

  • Page 7: Personnel Responsibility

    This symbol indicates that products marked with it should not be disposed of together with household garbage. The legislator disallows commercial customers to return electronic waste via municipial collection points. Further information is available through Dentaurum or the den- tal trade.

  • Page 8: Delivery

    3.9. Delivery High frequency casting machine megapuls compact - 230 V REF 090-620-00 Instructions for use with declaration of conformity 1.5 m Fabric reinforced fresh water hose with connection piece ´´, inner diameter 8 mm 1.5 m Water outlet hose inner diameter 8 mm Crucibles Mains cable 4.

  • Page 9: Installation

    5. Installation 5.1. Positioning the machine The chosen area must have a solid base. The machine must be positioned onto a stable and level table. The location must be clean and if possible free from dust.  Caution Leave at least 20 cm distance between the casting machine and other objects. This will ensure sufficient air circulation.

  • Page 10: Starting The Melting Process

    • The casting ring arm should then be balanced out with the weights. Loosen the star-shaped nut (Fig. 4, Pos. 17) and by turning the balancing weights (Fig. 4, Pos. 16) on the spindle, balance out the casting arm. Re-tighten the star-shaped nut and remove the casting ring. This adjustment is usually carried out before the actual melting process has begun.

  • Page 11: Starting The Casting Process

    When service or maintenance work is carried out, always ensure a second person with electrical knowledge is nearby. Many repairs may only be carried out by authorized personnel or by the Dentaurum Service Team. 7.1. Cleaning the water supply inlet Every 6 months the water filter in the fresh water inlet (Fig.

  • Page 12: Cleaning The Machine

    7.2. Cleaning the machine Wipe over the machine every now and then with a damp cloth. Do not use any strong detergents or tools for cleaning. Remove any casting residues or deposits from the casting arm immediately after casting and check for good mobility.

  • Page 13: Correcting Faults

    Switch for the upper end position must be replaced (call customer service) If you are not able to correct the fault using this table, please call your relevant service technician or call Dentaurum Technical Service – Machines directly. Phone: + 49 72 31 / 803 - 211 I info@dentaurum.com...

  • Page 14: Spare Parts

    9. Spare parts REF 090-611-00 Ceramic crucible 10 pieces REF 090-615-00 Graphite insert 10 pieces Protective glass 1 piece REF 908-271-00 10. Functional diagram...

  • Page 15: Technical Data

    11. Technical data Mains voltage 230 V Mains frequency 50/60 HZ Max. power consumption 2.4 kW Average power consumption 1.5 kW Starting torque 0...21 Nm Min. melting quantity 15 g precious alloy, 15 g CoCr, NiCr, Pd Max. melting quantity 100 g precious metal, 70 g CoCr, NiCr, Pd Max.
  • Page 16 QUALITY WORLDWIDE UNIQUE  For more information on our products and services, please visit www.dentaurum.com Date of information: 09/19 Subject to modifications www.dentaurum.com Turnstr. 31 I 75228 Ispringen I Germany I Phone + 49 72 31 / 803 - 0 I Fax + 49 72 31 / 803 - 295...
