Panduit R2PPDUB Installation Instructions

© Panduit Corp. 2011
R2PPDUB

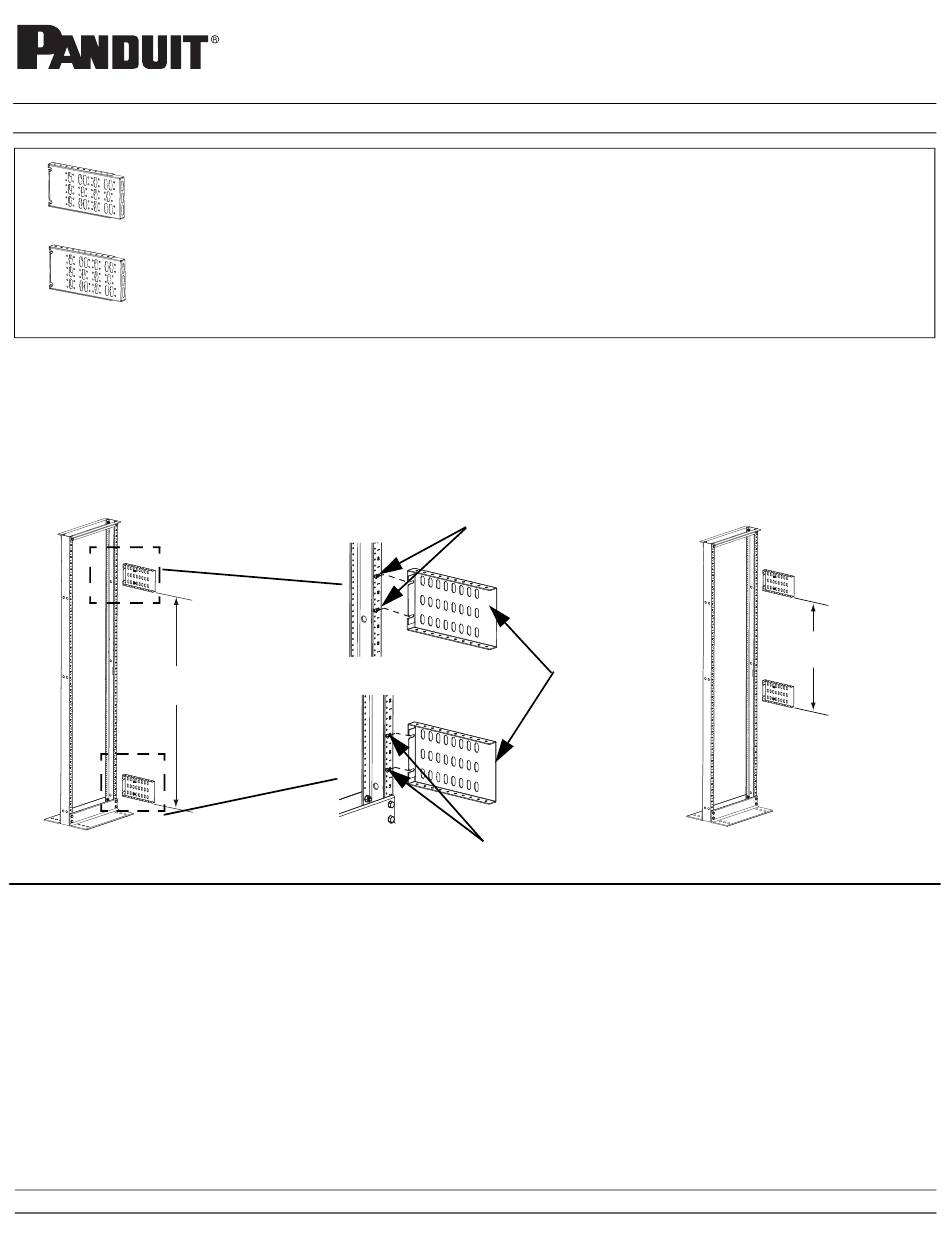

Installation Instructions-Outer Mounting Brackets
Attach (2) #12-24 X 1/2" screws to rack (per bracket) at appropriate locations.
Fasten outer mounting brackets to rack using the screws. The large flat surface with slotted holes may face outside or inside.
For mounting long (66.25") POU's, the brackets may be spaced vertically between 35 and 39 RUs apart, in 1 RU increments, measured from
bracket base to bracket base.
For mounting short (39") POU's, the brackets may be spaced vertically between 19 and 23 RUs apart, in 1 RU increments, measured from
bracket base to bracket base.
Base to Base
35 RU Min. Spacing
39 RU Max. Spacing
Bracket Installation for Long POU's
Installation Instructions-Inner Mounting Brackets
Slide inner mounting brackets into outer mounting brackets with the POU mounting keyway surface facing opposite the outer bracket slotted
hole surface. Fasten brackets together using (4) #12-24 X 1/2" screws for each bracket set. (2) screws will be fastened on the top flange and
(2) screws will be fastened on the bottom flange.
Important: (2) screws must be fastened in the most outward hole on each outer mounting bracket (1 top, 1 bottom). (2) screws must be fas-
tened in the position where the hole in the inner mounting bracket is closest to the face of the rack, regardless of extended position.
Note: Multiple holes on the top and bottom of the brackets allow the distance from the rack a POU can be mounted to be adjustable. This
means that the side facing POU can be mounted ranging from 3.7"-18.7" horizontally from the face of the rack. The rear facing POU can be
mounted ranging from 12.3"-20.3" horizontally from the face of the rack.
See illustrations on Page 2
For Technical Support: www.panduit.com/resources/install_maintain.asp
POU Bracket for 2 Post Racks
INSTALLATION INSTRUCTIONS
The R2PPDUB part contains the following components referred to in this
instruction sheet:
• (2) Outer Mounting Brackets
• (2) Inner Mounting Brackets
• (12) #12-24 X 1/2" Screws
#12-24 X 1/2" Screws
(first)
#12-24 X 1/2" Screws
(first)
Page 1 of 2
Part Number(s): R2PPDUB
Outer Mounting
Brackets (slide in
under screws)
Bracket Installation for Short POU's
CM521
Base to Base
19 RU Min. Spacing
23 RU Max. Spacing
