TELEVISION
USER MANUAL

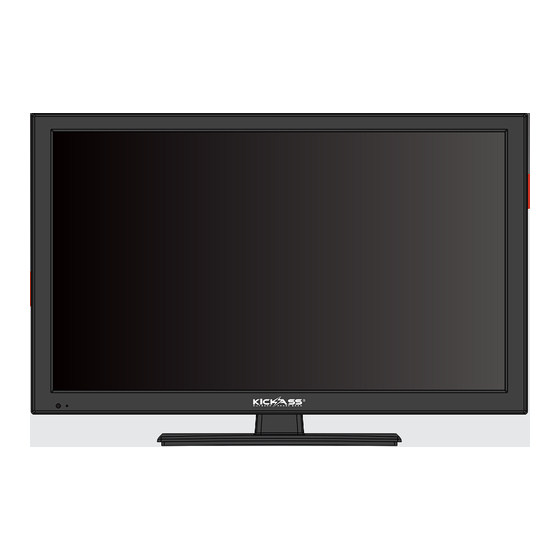

KATV12V24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KATV12V24 and is the answer not in the manual?

Questions and answers

Summary of Contents for KickAss KATV12V24

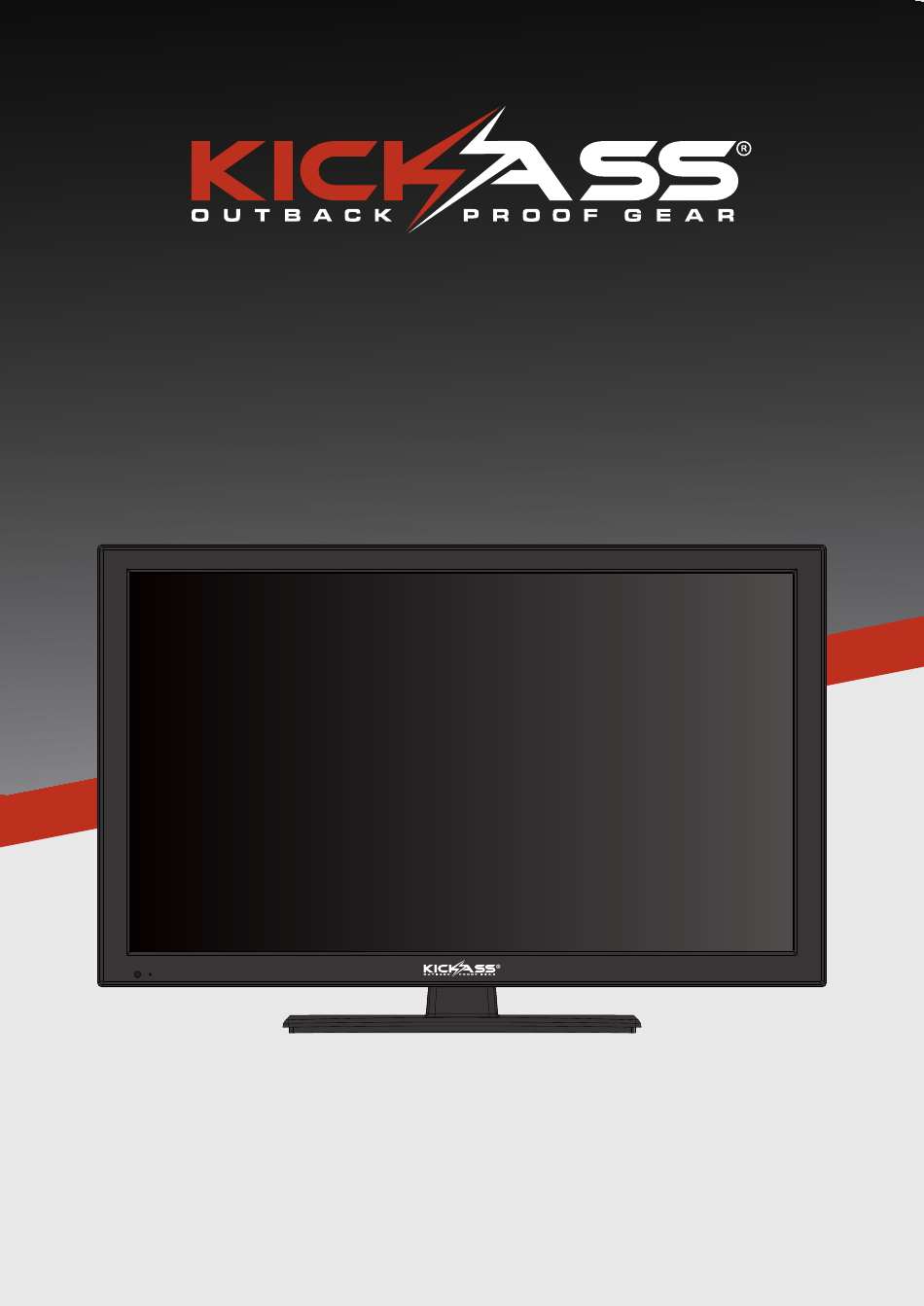

  • Page 1 TELEVISION USER MANUAL KATV12V24...
  • Page 2: Table Of Contents

    Introduction Power Supply Installation Use and Maintenance Important Safety Instructions Controls and Ports Specifications Remote control First Time Installa tion Select Input source Main Menu Operation Channel Menu Picture Menu Sound Menu Time Menu Option Menu Lock Menu PC Mode SCreen Menu Media Operation Media Operation Photo Menu...
  • Page 3: Introduction

    Introduction Thank you for purchasing a KickAss TV, your new set has been developed especially to operate of 12 Volt DC making it a very portable entertainment unit. This unit has also be designed top operate from 240 Volt AC mains power using the adapter provided if required.
  • Page 4: Installation

    Installation...
  • Page 5: Use And Maintenance

    Use & Maintenance...
  • Page 6: Important Safety Instructions

    Important Safety Instructions Warning and Precautions To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment. Before operating this equipment, please read this manual completely, and keep it for future reference.
  • Page 7 Important Safety Instructions 17) Do not listen to headphones at high volumes; the excessive sound pressure from earphones can cause hearing loss. 18) Keep the player clean and never store it next to a heat source or in dirty, humid or wet places. Keep it out of direct sunlight.
  • Page 8: Controls And Ports

    Controls and Ports 1. VOL(+) - This button increases the TV’s volume. If the On Screen Display (OSD) menu is active, pressing this button will move the selection to the right. 2. VOL(-) - This button decreases the TV’s volume. If the OSD menu is active, pressing this button will move the selection to the left.
  • Page 9: Specifications

    Specifications KickAss 12 Volt Caravan TV - DVD & Bluetooth Built in WARNING! This set must not be opened unless by a qualified technician. CAUTION CLASS 1 LASER PRODUCT RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN.
  • Page 10: Remote Control

    Functions of remote control buttons The remote control uses Infra- Red (IR) technology. For best performance, point it directly at the front of the TV. The remote control may not work correctly if it is operated out of range or from an acute angle. Press for turning the TV On/ Off...
  • Page 11 Press to switch to timeshift mode 【L ANGUAGE Select DVD languag. e 【 【 【 D.SETUP Open DVD mode system settings menu. D.MENU Display the menu of the DVD. D.TITLE Go to the title page of DVD disk. Open or close the disc compartment (DVD). AUTO Automatic Search of TV Station...
  • Page 12: First Time Installa Tion

    Setup You KickAss TV should be mounted according to the installation guidelines on the previous pages. To connect your TV to 12V DC use the cigarette plug power cable provided. You can plug this cable into the mating socket on your vehicle, battery box, fridge or other device with a cigarette socket that outputs 12V DC.
  • Page 13: Select Input Source

    Select Input Source Press the SOURCE button to display the input source list, Press or OK button to select the input source you want, Press OK button to enter the input source or press the EXIT button to quit. The available inputs are: DTV: Digital TV with an aerial (DVB-T eg.
  • Page 14: Main Menu Operation

    Main Menu Operation Channel Menu Press MENU button to display the main menu. Press button to select CHANNEL in the main menu. In Antenna Source. 1. Press button to highlight the option that you want to adjust in the CHANNEL menu. 2.
  • Page 15 To skip ATV tuning and move straight on to DTV tuning press the MENU button followed by the left arrow. ATV Manual Tuning Storage to Set the channel number. Sound System Select the sound system Colour System Select the colour system (Available System: AUTO, PAL, SECAM) Fine-Tune Adjust the frequency of the channel finely.
  • Page 16 DVB-T Manual Tuning Press button to select DVB-T Manual Tuning, then press OK button to enter sub-menu. Press button to select channel, then press OK button to search program. Program Edit (reordering the channel list) Press button to select Program Edit, then press OK button to enter sub-menu. The three colored keys are shortcut keys for programming the channel.
  • Page 17: Picture Menu

    Picture Menu Press MENU button to display the main menu. Press button to select PICTURE in the main menu. 1. Press button to select the option that you want to adjust in the PICTURE menu. 2. Press OK button to adjust. 3.
  • Page 18 Color Temp Change the overall color cast of the picture. Press button to select Color Temperature, then to cycle through the options: Normal No Adjustment Cold Increase the blue tone for the white. Warm Increase the red color for the white. Aspect Ratio Manually change the aspect ratio of the picture Press...
  • Page 19: Sound Menu

    Sound Menu Press MENU button to display the main menu. Press button to select SOUND in the main menu. 1. Press button to select the option that you want to adjust in the SOUND menu. 2. Press OK button to adjust. 3.
  • Page 20 Bluetooth The Bluetooth function allows you to play audio from the TV through a Bluetooth audio device such as a soundbar, speaker or headphones. Press MENU button to display the main menu. Press button to select SOUND in the main menu. Select Bluetooth from the Sound menu to bring up the Bluetooth sub-menu: Turning on Bluetooth Press...
  • Page 21 Disconnecting a Bluetooth device To disconnect a Bluetooth device you can turn the device off and the TV will automatically switch the sound back to the TV after a few seconds. You can also disconnect the device from the TV as follows: Press the buttons to select Disconnect and press the OK button.
  • Page 22: Time Menu

    Time Menu Press MENU button to display the main menu. Press button to select TIME in the main menu. Clock Press button to select Clock and then press OK to open the submenu. Press button to select each entry, then to adjust the date, month, year, hour and minute.
  • Page 23 Sleep Timer Press button to select Sleep Timer, then to cycle through the options: Off, 10min, 20min, 30min, 60min, 90min, 120min, 180min, 240min. The TV will turn off after the set time has passed. Auto Standby Press button to select Auto Standby, then to cycle through the options: Off, 3 H, 4 H, 5 H.
  • Page 24: Option Menu

    Press MENU button to display the main menu. Press button to select SETUP in the main menu. OSD Language Select a language for the OSD (On Screen Display) menus. The default language is English. Press button to select OSD language and then OK to open the submenu. Press button to select the language and then Menu to return to the Option menu.
  • Page 25 Audio Language Press button to select Audio Language, then press OK button to enter the submenu. Press buttons to select the Audio Language. Press Menu to return to the Option menu. Subtitle Language Press button to select Subtitle Language, then press OK button to enter the submenu. Press buttons to select the Subtitle Language.
  • Page 26: Pvr

    PVR File System Settings for the Personal Video Recorder (PVR) function. A USB device (USB stick/thumb drive or hard drive must be connected to the TV, maximum size 1TB formatted in FAT32 or NTFS). Press button to select PVR File System, then press OK button to enter submenu. If you have more than one USB device connected press OK to select the disk.
  • Page 27: Lock Menu

    Lock Menu Press MENU button to display the main menu. Press button to select LOCK in the main menu. 1. Press button to select the option that you want to adjust in the LOCK SYSTEM menu. 2. Press OK / button to adjust.
  • Page 28 Channel Lock Press button to select Channel Lock then press OK button to enter submenu to select. Press Green button to lock or unlock the channel. Parental Guidance Press button to select Parental Guidance, then press the buttons to select the age that is suitable for your children.
  • Page 29 1. Press button on the remote control to select hotel mode in the Lock menu. 2. Press OK button on the remote control to enter the submenu. 3. After finishing your adjustment, press MENU button to save and return back to the previous menu. Hotel Mode Press button to select Hotel Mode, then press...
  • Page 30 Press EPG button on remote control to enter EPG menu page. Press navigation buttons to select preferred program. Press navigation buttons to switch between left column and right column. When a program is highlighted Press button to record program Press GREEN button to display information on the highlighted program.
  • Page 31: Pc Mode Screen Menu

    PC Mode Screen Menu Press MENU button to display the main menu. Press button to select SCREEN in the main menu. 1. Press button to select the option that you want to adjust in the SCREEN menu. 2. Press OK button to adjust. 3.
  • Page 32: Media Operation

    Media Operation Note: Before operating Media menu, Plug in USB device, then press SOURCE button to set the Input Source to Media Press button to select Media in the Source menu, then press OK button to enter. Press button to select the option you want to adjust in the main Media menu, then press OK button to enter.
  • Page 33: Photo Menu

    Photo Menu Press button to select PHOTO in the main menu, then press OK button to enter. Press Exit button to return to the previous menu and exit menu to quit. Press button to select the file you want to watch in the file selecting menu, then press media button to display picture.
  • Page 34: Music Menu

    Music Menu Press button to select MUSIC in the main menu, then press OK button to enter. Press Exit button to return to the previous menu and exit menu to quit. Press button to select drive disk you want to watch, then press OK button to enter. Press button to select return option to the previous menu.
  • Page 35: Movie Menu

    Movie Menu Press button to select MOVIE in the main menu, then press OK button to enter. Press Exit button to return to the previous menu and exit menu to quit. Press button to select drive disk you want to watch, then press OK button to enter. Press media button to play the selected movie.
  • Page 36: Text Menu

    Text Menu Press button to select TEXT in the main menu, then press OK button to enter. Press Exit button to return to the previous menu and exit menu to quit. Press button to select drive disk you want to watch, then press OK button to enter. Press button to select return option to back to the previous menu.
  • Page 37: Dvd Operation

    DVD Operation Preperation: 1. Connect the unit to the power supply and press the POWER button to switch the unit on. 2. Press the INPUT button on the remote control to select DVD mode and press OK to select DVD mode. 3.
  • Page 38 Title Play 1. DVD disc dependant only, according to DVD manufacturer specifications. 2. During DVD playback, press Title button to display the DVD title content and main menu. 3. Press the ▲▼ buttons to highlight the title you would like to choose and press OK;...
  • Page 39 Multispeed Fast Motion Play Compatible with DVD, SVCD, VCD, CD, HD-CD, WMA, Digital Audio discs. 1. Press the Multispeed Fast Forward button on the remote during play to search through a disc.Multispeed Fast Forward ►► has four speeds: x2, x4, x8, x16., x32 With each consecutive press of the button, the search speed increases.
  • Page 40 SVCD Display Feature When the DISPLAY button is pressed repeatedly while a SVCD is being played, the response will show as follows. ● Disc Type, Track(Track being played/ total tracks), Mute, PBC, Repeat Mode, Elapsed Time ● Language (Language being played/ Total Number of languages), Language Type, Audio Type, Subtitle (Subtitle being played/Total number of subtitles) VCD Display Feature When the DISPLAY button is pressed repeatedly while a VCD is being played, the...
  • Page 41 Audio Selection for SVCD or VCD There are five audio selections available: Stereo (L/R), L/L, R/R, L/L Auto A/D Detect, and R/R Auto A/D Detect. With each consecutive press of the button, the audio selection cycles through these options. For example, if you press the button six times, the audio selection cycles back to Stereo.
  • Page 42 General Setup OSD Language This is used to select the OSD language. Last Memory The Last Memory function can memorize where disc playback was stopped, and resume from there when the same disc is inserted again. This function can memorize up to 4 discs, and is dependent on the disc content.
  • Page 43 Downmix ● LT/RT Select to downmix multichannel audio soundtracks to LT/RT channel output. ● Stereo Select to downmix multichannel audio soundtracks to stereo output. Preference Setup Select to downmix multichannel audio soundtracks to stereo output. Audio Choose a preferred language track to be played if it is available on the disc. If it is not available, the default language will be played.
  • Page 44 Subtitle Choose a preferred subtitle language to be used if it is available on the disc. If it is not available, the default language will be used. Disc Menu Choose a preferred menu language to be used if it is available on the disc. If it is not available, the default language will be used.
  • Page 45 Parental When playing discs with parental lock function, you may select an Age Control Grade according to disc rating and your own preference. For example, if PG is selected, DVD Video disc rated higher than PG cannot be played. - KID SAFE - PG - PG 13 - PGR...
  • Page 46 Default Reset the DVD settings to the original factory settings by choosing RESET and pressing the OK button.
  • Page 47: Thank You For Your Purchase

    THANK YOU FOR CHOOSING KickAss® is committed to providing you with the most up to date product information. As printed material is harder to update we have created an online user guide portal including videos, user guides and product tips so you can view or download the latest product information at any time.
  • Page 48: Our Guarantee

    Warranty does not cover products that have not been used in accordance with the KickAss® user guide or are outside the warranty terms and conditions. QUESTIONS AND COMMENTS Please visit us at kickass.com.au or...
