Unimes U10 User Manual

Mobile data terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Suzhou Unimes Information & Technology Co., Ltd
Mobile Data Terminal
U10 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the U10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Unimes U10

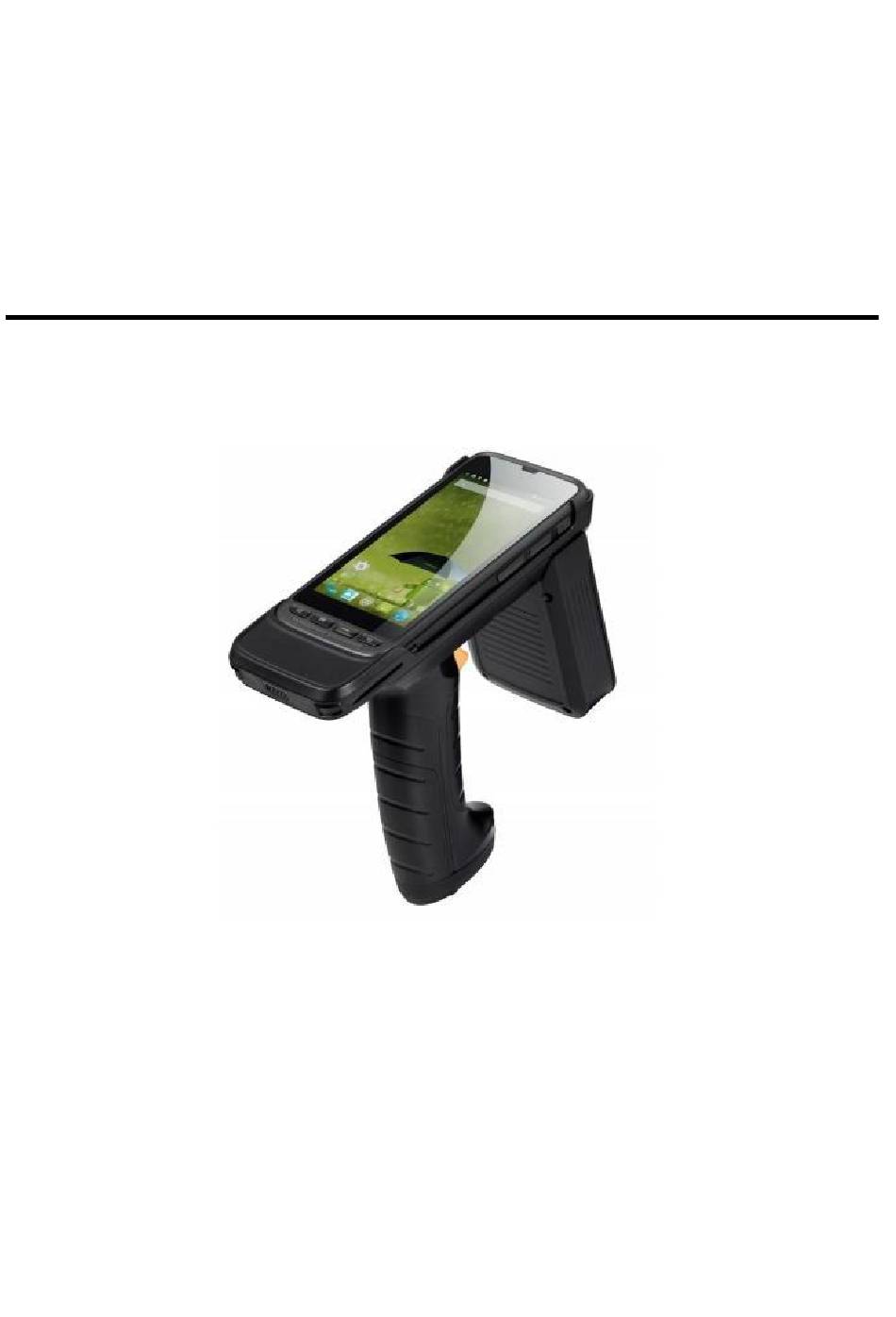

  • Page 1 Suzhou Unimes Information & Technology Co., Ltd Mobile Data Terminal U10 User Manual...

  • Page 2: Table Of Contents

    1.3 Removing the Battery..........................2 1.4 Inserting a SIM Card..........................2 1.5 Inserting a TF Card............................3 1.6 Charging..............................4 2.1 Powering On/Off the U10......................... 5 2.2 Locking and Unlocking the U10.......................5 2.3 Keys................................5 2.4 Home Screen..............................6 2.5 Status Icons and Indicators........................6 2.6 Basic Settings.............................7...

  • Page 3: Introduction

    U10User Manual 1 Introduction 1.1 Appearance of U10 Figure 1-1 Front view of U10 - 3 -...

  • Page 4: Installing The Battery

    (Note: The U10adapts integrated design for the battery and batterycover.) 1.4 Inserting a SIM Card 1. Insert a SIM card by following the direction in the figure below. (Note: Micro SIM cards are applicable to the U10. After replacing a SIM card, restart the U10.) - 4 -...

  • Page 5: Inserting A Tf Card

    3. Close the card cover, as shown in the figure below. 4. Pull back the card cover by following the LOCK direction marked on the card cover. (Note: TF cads, namely Micro SD cards, are applicable to the U10. After replacing a TF card, restart the U10.)

  • Page 6: Charging

    (2) the U10gives out a low battery prompt tone. (3) the charging indicator blinks in red. ★ Tips The following operations help obtain a longer standby duration of the U10.  Shorten the time to sleep by selecting Settings > Display > Sleep.

  • Page 7: Powering On/Off The U10

    The U10provides a physical keypad that consists of four keys, as shown in the figure below. On the physical keypad of the U10, keys are respectively home key, menu key, scan key, and back key from left to right. Home key: used to go back to the home screen.

  • Page 8: Home Screen

    U10User Manual Return key Scan key Menu key Home key 2.4 Home Screen By default, the U10has one home screen. You can add home screens by placing applications to the home screen and slide to the left or right to switch to another home screen.

  • Page 9: Basic Settings

    As software is upgraded continuously, status indicators may be different from those displayed on the U10. The actual status indicators prevail. 2.6 Basic Settings 2.6.1 Date and Time Settings To change the date and time in the U10, do as follows: 1. Find the following icon. - 9 -...
  • Page 10 U10User Manual 2. Select Settings > Date & time > Set date or Set time. 2.6.2 Display Setting 1. Find the following icon. 2. Select Settings > Display > Lock screen notification/Wallpaper/Brightness/Auto-rotatescreen/Sleep/Interactive screensaver/Font size/Cast screen. - 10 -...
  • Page 11 U10User Manual 2.6.3 Ringtone Setting 1. Find the following icon. 2. Select Settings > Audio profiles > General/Silent/Meeting/Outdoor. Click different modes and set the ringtone in the modes. 2.6.4 Security Setting 1. Find the following icon. 2. Select Settings > Backup & reset > Factory data reset. The U10starts to restore factory settings.
  • Page 12 U10User Manual ★ Caution If you perform the preceding operation, the following data will be cleared: Account  Data and settings of the system and applications  Downloaded applications  The following data will not be cleared: Current system software and bound applications ...
  • Page 13 U10User Manual 2.6.6 Shortcuts You can add shortcut icons on the home screen of the U10. On the home screen, click the icon of application tray, press and hold an icon and drag it to the home screen. 2.6.7 Widgets You can add widgets such as clock, music player and calendar on the home screen of the U10.

  • Page 14: Call Function

    U10User Manual 3 Call Function 3.1 Making a Call 1. Find the following icon. 2. Enter a phone number. 3. Click to make a call. 4. Click to terminate the call. Call records Voice call Keypad for dialing Contacts 3.2 Contacts 1.

  • Page 15: Sms And Mms

    U10User Manual 3.3 SMS and MMS 1. Find the following icon. 2. Click enter a receiver and text to be sent. 3. Click to send the message. 4. On the message editing page, press the menu key, click Add subject to convert the message into a multimedia message.

  • Page 16: Email

    You can send or receive emails. ★ Note To create an email account on the U10, first set the account on a PC. Take a QQ email account as an example. Log in to the QQ email account, click Settings in the upper right corner of the email account page, find and select the server option and inbox option and then save.
  • Page 17 U10User Manual To synchronize or delete an account, do as follows: 1. On the home screen, click Settings. 2. Under the ACCOUNTS option, click POP3 to open added accounts and click the name of an account to be synchronized or deleted. On the Sync page, click in the upper right corner and select Sync now or Remove account.

  • Page 18: Network Connection And Connection Synchronization

    After a GPRS data connection is established, you can access the Internet. To establish a GPRS data connection, ensure that a SIM card is installed in the U10. In general, the Internet access configuration is set on the U10. If you delete the default configuration by...

  • Page 19: Wi-Fi Network Connection

    Click to connect the network 4.3 Bluetooth After you enable the Bluetooth function on the U10, you can establish wireless connections with other Bluetooth devices such as computers and mobile phones. In the scope without solid obstacles, the effect of Bluetooth connections is good.
  • Page 20 U10User Manual 5. In the dialog box that is displayed, confirm the PIN and click Pair to connect the device. Click to make other devices able to detect the device Click to enable Bluetooth and search for Bluetooth devices 6. Click on the right of a paired device.

  • Page 21: Gps

    U10User Manual ★ Caution  Ensure that the device to be connected to the U10has enabled the Bluetooth function and Bluetooth visibility.  During the connection process, set and pair the PIN. The U10does notsupport connection without a password. 4.4 GPS The U10is equipped with a high-performance navigation chip and can quickly and accurately obtain position information.

  • Page 22: Synchronization

    U10User Manual Click the option to open the USB storage device and copy files between the PC and the device 4.6 Synchronization 1. Find the following icon. 2. Select Settings > Accounts & sync. 3. Click Add account to set a new account. 4.

  • Page 23: Enabling The Scan Function

    U10User Manual 5 Enabling the Scan Function 5.1 To start the iScan program and enable scanning, do as follows: 1. Click the iScan icon on the menu page. 2. Click the blue slider on the right of Enable Barcode Scanning to enable the scanning function (if you click the slider again, the scanning function is disabled).

  • Page 24: Enabling The Nfc Function

    3. Click the blue slider on the right to enable NFC (if you click the blue slider again, NFC is disabled). 4. Put an NFC card close to the back of the U10. After a beep is heard, the card is read successfully.

  • Page 25: Managing The U10

    If too many programs are installed or some programs are unnecessary, uninstall programs to improve the running speed of the U10. To uninstall a program, do as follows: 1. Select Settings > App. In the application list that is displayed, select an applicationand click it.

  • Page 26: Managing Applications

    U10User Manual 7.3 Managing Applications Select Settings > App. On the application management screen, you can view application status in the options such as Downloaded, SD Card and Running, click an application, access the application information screen, and perform operations such as forcibly stopping, uninstalling and stopping an application.

  • Page 27: Precautions And Troubleshooting

     Do not throw, beat or violently collide the U10. Otherwise, the components of the U10may be damaged and the U10may be faulty.  Do not use strong chemical products or strong detergent to clean the U10. If the U10become dirty, clean the surface of the U10by using a soft cloth soaked with dilute glass detergent.

  • Page 28: Troubleshooting

      If the battery leaks, do not let the liquid stain your skin or eyes. Otherwise, washyour skin or eyes with lots of water and go to see the doctor immediately. Cleaning U10 Shell  Clean the shell by using a cloth soaked with alcohol, including keys and space between keys.
  • Page 29 Too many applications are Remove applications installed on the iData installed on the U10. The scan application is not Load the scan application in the U10. loaded. The U10cannot decode Reading a barcode fails. Check that the barcode is indefective.
  • Page 30 When a user attempts to connect Bluetooth Bluetooth phone phone to the U10, the memorizes the name and Remove the paired device and the name Bluetooth phone address of the U10paired from the Bluetooth phone. identifies the U10as the previously over Bluetooth.

  • Page 31: Appendix

    Warranty card One-slot USB charging base Optional Power adapter Optional , used to charge the battery. Bottom charging cable Optional Table 2 Technical specifications of the U10 Item System configuration High-performance quad-core 1.3 GHz processor Operating System Android 5.1 Memory...
  • Page 32 U10User Manual Item Wireless LAN Wi-Fi 802.11a/b/g/n（Dual-band Wi-Fi: 2.4G+5G） Bluetooth Bluetooth 4.0 GPS (optional) Supporting GPS/ AGPS /Glonass Operating environment Development tool Android SDK+JDK+Eclipse Supported language Java Operating Temp. -10℃ ~ 50℃ (14℉ to 122℉) Storage Temp. -20℃ ~ 60℃ (-4℉ to 140℉) Humidity 0 to 95% (non-condensing) Drop specification...
  • Page 33 U10User Manual Power Adapter: Manufacturer: SHENZHEN FUJIA APPLIANCE CO.,LTD. Model: FJ-SW1260502000UE Input: AC 100-240V; 50/60Hz;0.4Amax Output: DC5.0V;2000mA Battery: Manufacturer:WUXI IDATA TECHNOLOGY COMPANY LTD. Model: 1ICP9/65/85 Capacity:3300 mAh 12.2Wh Nominal Voltage:DC 3.7V Maximum Charge Voltage:DC 2.4V CE marking: CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.
  • Page 34 U10User Manual If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna.
