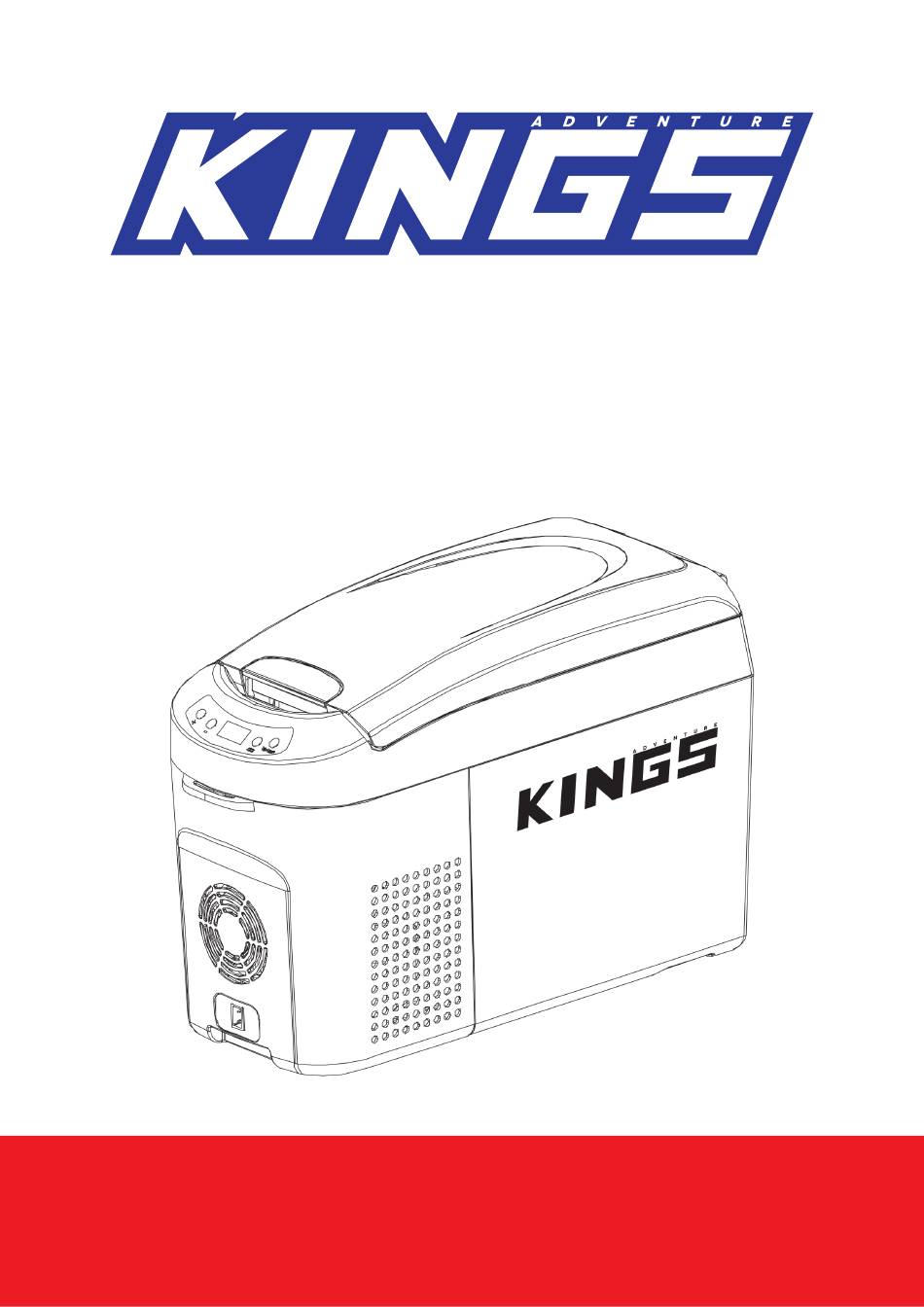

- Page 1 15L FRIDGE/FREEZER USER MANUAL AKFR-FR15L_01 V1.6 PLEASE READ AND UNDERSTAND THIS MANUAL COMPLETELY BEFORE USING THIS PRODUCT.
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY 2. DESCRIPTION 3. DATA SHEET 4. INSTALLATION 5. OPERATION 5.1 CONTROL PANEL DIAGRAM 5.2 TURNING ON 5.3 SETTING THE TEMPERATURE 5.4 SETTING THE TEMPERATURE UNITS 5.5 SETTING THE OFFSET VALUE 6. BATTERY MONITOR 7. TROUBLESHOOTING 8. MAINTENANCE 9. -
Page 3: Safety
1. SAFETY This manual covers the safety information, specifications, installation, operation, maintenance and troubleshooting instructions for the Adventure Kings 15L Fridge/Freezer. For any questions or warranty claims please call 1800 883 964. Caution: Read this instruction manual and safety warnings carefully before using the refrigerator. This appliance contains fluorinated greenhouse gas R134a within a hermetically sealed system and its operations depends on the presence of this gas. - Page 4 WARNINGS WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Leave a space of at least 15cm across all its sides. WARNING: Do not use mechanical devices or other means to accelerate the defrosting process.
-
Page 5: Description
2. DESCRIPTION The AK 15L Fridge/Freezer is a high-quality fridge which can be permanently fitted inside a vehicle without taking up much space. Powered by a 12/24V DC direct-power supply, which can be accessed directly from the cigarette lighter the AK 15L Fridge/Freezer is designed to cool or freeze food and drinks. -
Page 6: Installation
4. INSTALLATION Place the refrigerator on a dry, protected surface, away from corners. Do not use the refrigerator in uncovered, outdoor areas or areas exposed to the elements. • The refrigerator requires good ventilation. Leave a space of at least 15 cm across all its sides. -
Page 7: Operation
5. OPERATION 5.1 CONTROL PANEL DIAGRAM 1. On/Off Button 2. SET Button 3. Display Screen 4. Temperature decrease or scroll menu key 5. Temperature increase or scroll menu key 5.2 TURNING ON Connect the DC power supply. Press and On/Off button to switch on the refrigerator. The compressor enters ON mode according to the manufacturer’s default settings. -
Page 8: Setting The Temperature Units
5.4 SETTING THE TEMPERATURE UNITS ▲ ▼ With the refrigerator switched off, press and hold the SET + buttons at the same time for a few seconds to access the parameter settings. ▲ ▼ Press the buttons to scroll to the function (F - C), press the SET button to enter the ▲... -
Page 9: Battery Monitor
6. BATTERY MONITOR The AK 15L Fridge/Freezer is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the device is connected to the on-board DC supply. If the fridge is operated when the vehicle ignition is switched off, the cooler switches off automatically as soon as the supply voltage falls below a set level. -
Page 10: Troubleshooting
7. TROUBLESHOOTING Any operation faults will be displayed after 90 seconds and will be presented on the display with the following codes: The thermostat has short-circuited or is not correctly connected to the control unit: The compressor is blocked: The ventilator is sending the control unit a value which exceeds 0.6A: The cooling system holds too much gas and the compressor is not able to operate at the minimum number of revolutions/rpm: The ambient temperature is too high:... -
Page 11: Warranty
12 MONTH LIMITED WARRANTY WARRANTY PERIOD: Full 12 month warranty from date of purchase against all manufacturing defects. WHAT DOES THE WARRANTY COVER? Under normal usage conditions, this warranty covers: a. Any defect in design or manufacture which results in the product failing to perform substantially as described in authorised advertising or literature.
