Zenit Powertools RH-1100 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
rotary hammer
rh-1100
InstructIon manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RH-1100 and is the answer not in the manual?

Questions and answers

Related Manuals for Zenit Powertools RH-1100

Summary of Contents for Zenit Powertools RH-1100

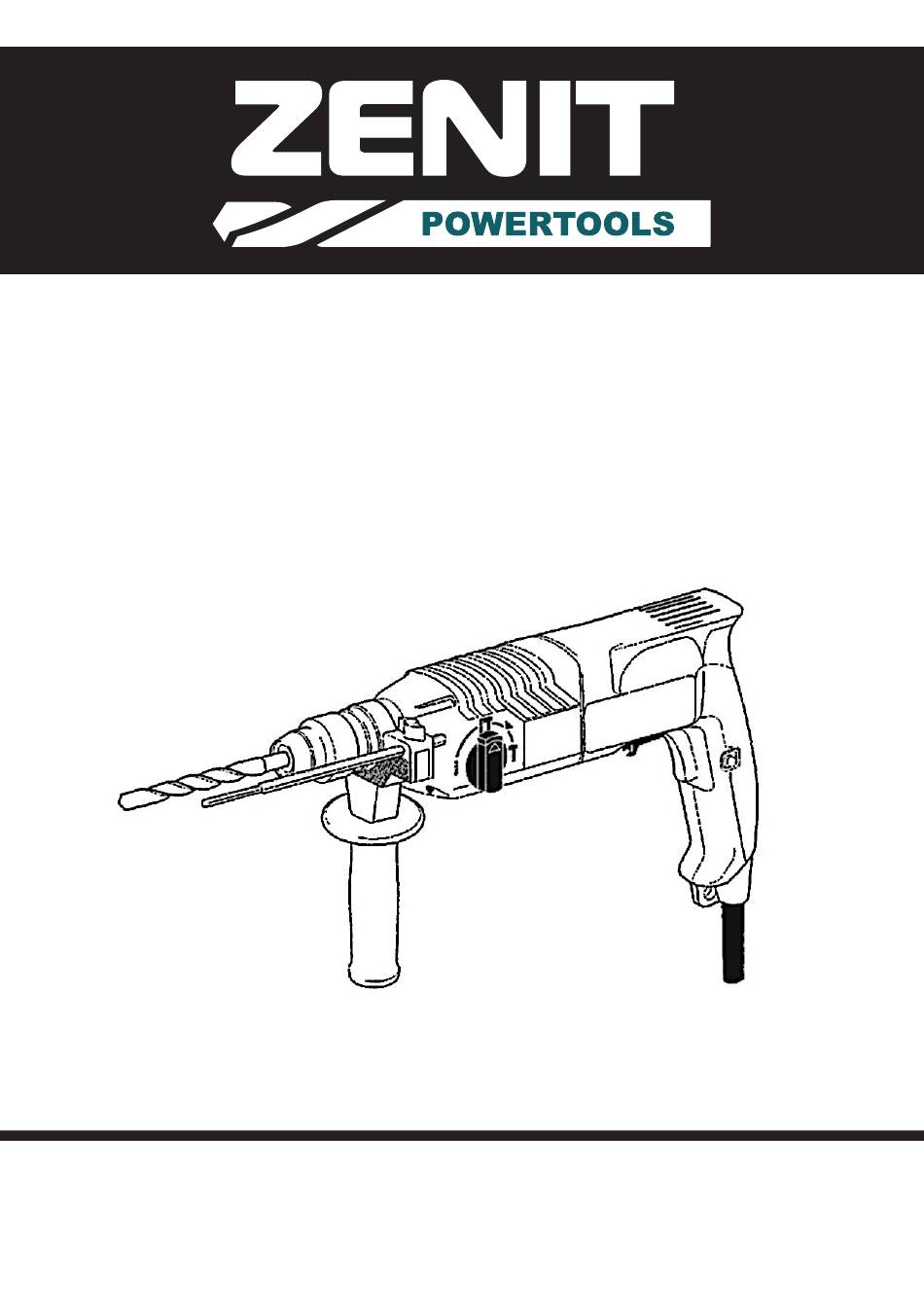

  • Page 1 InstructIon manual...

  • Page 3: General Safety Precautions

    General safety precautions WarninG! When using electric tools, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury, including the following. read all these instructions before operating this product and save these instructions. for safe operations: 1.
  • Page 4 17. Avoid unintentional starting. Do not carry a plugged in tool with a finger on the switch. ensure switch is off when plugging in. 18. use outdoor extension leads. When tool is used outdoors, use only extension cords intended for outdoor use. 19.

  • Page 5: Technical Specifications

    1. «on\off» switch 2. stopper 3. Drilling mode switch 4. side handle 5. Drill chuck technical SpecificationS Model rH-1100 rated power 1100 W rated voltage 220-240 V rated frequency 50-60 Hz Drilling diameter: 2-26 mm no load speed 0 – 1050 rpm...

  • Page 6: How To Use

    the plug is connected to a receptacle while the power switch is in the on position, the power tool will start operating immediately, inviting serious accident. 3. extension cord. When the work area is removed from the power source. use an extension cord of sufficient thickness and rated capacity.
  • Page 7 the rotary hammer will react to revolve. therefore please grip the side handle and handle tightly. 3. rotation only this rotary hammer can be set to rotation only mode by pressing the push button and turning the change lever. to drill a wood or metal material using the separately sold drill chuck and chuck adaptor, proceed as follows.

  • Page 8: Maintenance And Inspection

    A specific grease is used with this machine, therefore, the normal performance of the machine may be badly affected by use of other grease. please be sure to let one of our service agents undertake replacement of the grease. maintenance anD inSpection 1.
  • Page 10 Demix LLC Head office: 14, Shevchenko str., 3rd floor Dnepropetrovsk, Ukraine, 49044 tel./fax: +38 056 375-43-16 http://www.en.zenit-profi.com...
