Summary of Contents for RHINO KP-700

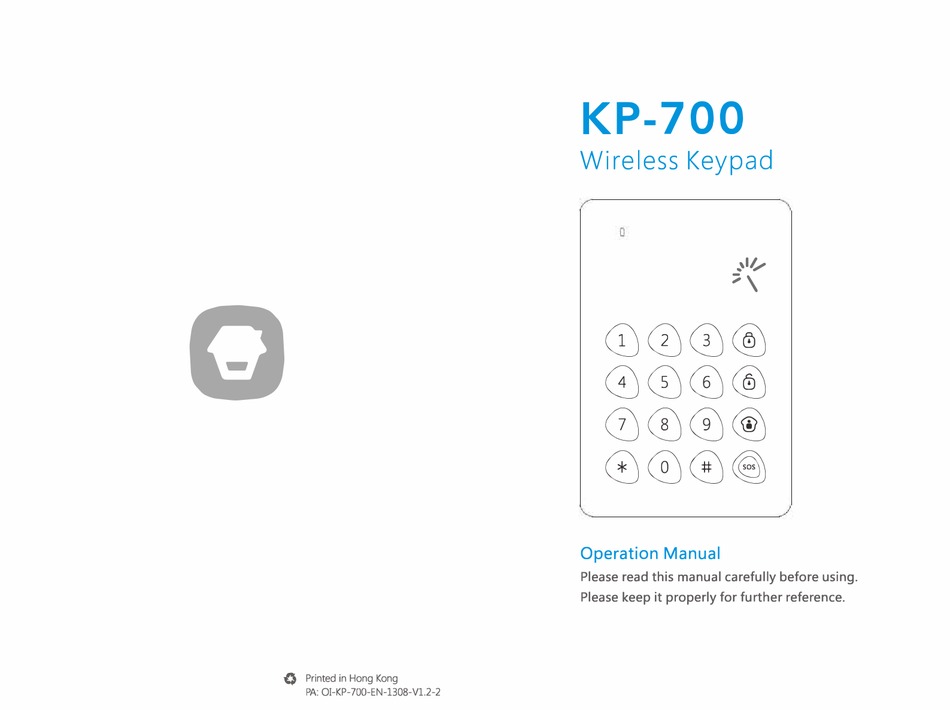

- Page 1 KP-700 Wireless Keypad .,1 1,., 000® 000® 000® 800� Operation Manual Please read this manual carefully before using. Please keep it properly for further reference. Printed in Hong Kong PA: OI-KP-7IJ{J-EN-1308-Vl.2-2...
-
Page 2: Table Of Contents
Table of Contents Usage Introduction Foreword Disarm Included Accessories Appearance Stay Mode Emergency Call Preparation before Use Mute Mode Power on Care and Maintenance Connect Keypad to Control Panel Usage Notices 6 -7 Connect RFID Tag to Keypad Maintenance Connect Electronic Door Lock Installation Settings Enter Setup State... -
Page 3: Foreword
Foreword Included Accessories Thank you for purchasing this wireless keypad. It is recommended to install outside the entry door and users can achieve operations such as arm, disarm, stay mode after inputting passcode. Moreover, the keypad can connect with 000@ an electronic door lock to work as an access control system 000@ for homes and offices. -
Page 4: Appearance
Appearance Positive and negative LED Indicator terminals for batterym .,1 1,., RFJD3l reader ..Battery compartment 000® - - - - 0 0 0 ® Tamper Switch __ ..,_ Disarm 000@ Wired Cable Interface Stay mode · · · · 0 0 0 C©J SOS key RFID wake-up key... -
Page 6: Connect Electronic Door Lock
2. Press [9], one beep is heard and the LED indicator is on. Connect Electronic Door Lock Keypad enters learning state. To know connection steps, please refer to the instruction manual of electronic door lock. Installation Fix the keypad on the door frame or the wall before use. Loose the screw, open the case ®... -
Page 7: Settings
Settings Delay Arm When the alarm system is armed, detectors will start working The keypad should enter setup state before all settings. immediately. At that time, if you still stay at home, it will trigger an alarm. After setting delay arm, press on the [Arm] Enter Setup State... -
Page 8: Set Code Sos
Set Code SOS Keyboard Tone If code SOS is disabled, you only need to press and hold the Keyboard tone can be turned on or off. [SOS] key for 3 seconds and the control panel will alarm If it is off, the successful setup tone will be closed too. immediately. -
Page 9: Disarm By Rfid Tag
Disarm by RFID Tag Disarming Silently by RFID Tag User can enable or disable the function of disarming by RFID tag, or disarming silently by RFID tag. The control panel and siren will hoot twice when disarming by RFID tag. If set disarming silently by RFID tag, the control Disable Disarming by RFID Tag panel and siren will keep silent to finish disarming without disturbing neighborhood. -
Page 10: Direct Disarm By Rfid Tag
Direct Disarm by RFID Tag Enable Direct Disarm by RFID Tag When direct disarm by RFID tag is enabled, users can directly present RFID tags to disarm the system and unlock the If the keypad is powered by DC 12V power, enable this electrical door locks. -
Page 11: Change User Code
Change User Code Change Admin Code Using user code can wake up keypad, open electronic door Using admin code can wake up keypad, send Arm, Disarm, lock, or send Arm, Disarm, Stay Mode commands to the Stay Mode commands to the control panel, and also change control panel. -
Page 12: Reset
Reset Usage & After reset, the user code, ad min code, and other settings will The keypad can be used as a remote control. User code or restore to default except that the connected RFID tags can ad min code should be input before the operation of Arm, still disarm and open electronic door lock. -
Page 13: Disarm
Disarm Stay Mode Input user code or ad min code, and press key, [Stay Mode] Users can disarm alarm system by using keypad or by using the LED indicator flashes once and the keypad beeps once RFID tags. and sends Stay Mode command to the control panel. Using Keypad to Disarm Input user code or ad min code, and press [Disarm]... -
Page 14: Emergency Call
Care and Maintenance Emergency Call When the keypad is in Speed SOS Dial mode, user just holds In order to avoid any harm to the users or others during [SOS] key for 3 seconds, the LED indicator flashes once, usage and prolong the usage life, please abide by the the keypad beeps once, and the control panel alarms following notices. -
Page 15: Faq
Instructions of Wired Cables Interface (from Left to Right) +12V (RED WIRE): Problem Cause Solution Positive of power Please change the battery Low battery The positive and in o �� �� h � h b;Wtrv: � � i � al direction and GND (BLACK WIRE): negative terminals No response... -
Page 16: Technical Specifications
Technical Specifications Product Name: Keypad Model No.: KP-700 Power Supply: 3 pcs of AAA batteries or DC 12V Static Current: "" 3uA (powered by batteries) Transmitting Current: ""lOmA RFID Tags Supported: 50pcs Transmitting Distance: "" 80m ( in open area)
