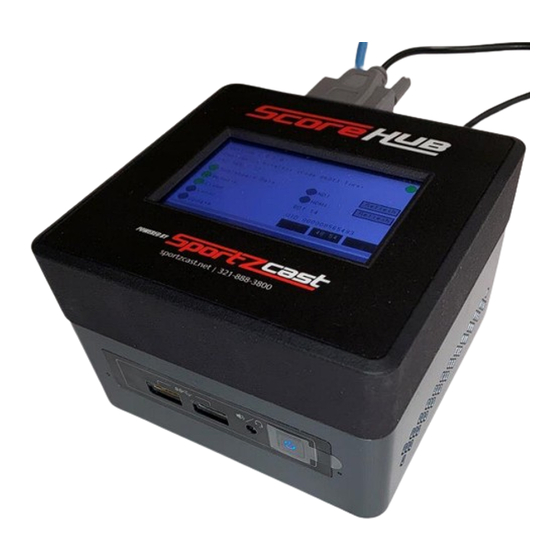

Summary of Contents for SportZcast ScoreHub

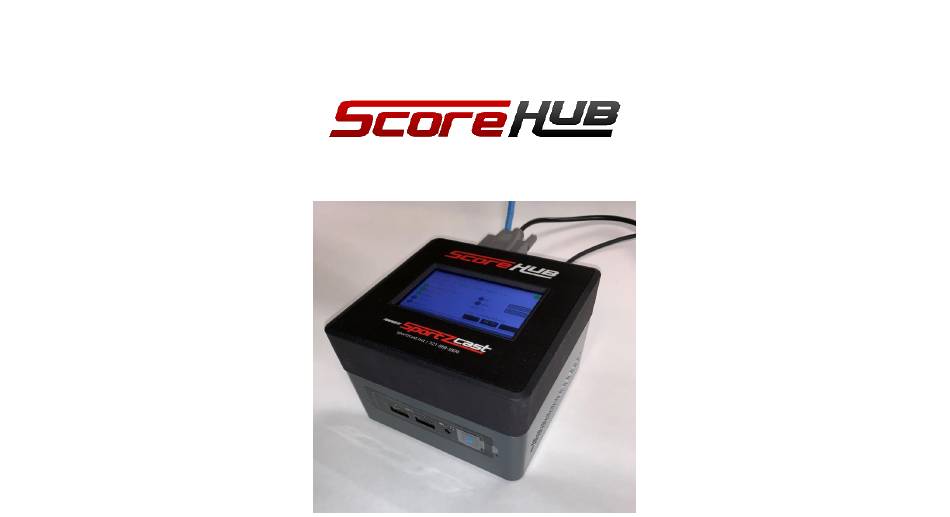

- Page 1 Install Guide...
-
Page 2: Initial Connections
Initial Connections Connect the ScoreHub to Power and your LAN as shown. Power Cable Connection... - Page 3 15 to 30 seconds. Power Off – Press the Power Button for about 1 second. The display will blank when the ScoreHub is powered down. Force Power Off – Press the Power Button for 5 seconds. Avoid just unplugging the ScoreHub.
-
Page 4: Main Display
Main Display Current IP Address Heartbeat (may show more than one if Wi-Fi On) (blinks) Scoreboard Data Valid NDI Graphic ON Green-OK Yellow-Not BOT Number Network OK Unique ID (last 4 is your Web Password) Sending Data to the Cloud Visitor –... - Page 5 • Gray – Daktronics and Electro-Mech • Black – Nevco • Red – Fair-Play and Spectrum • Specialty – Eversan, Varsity and others Connect the DB9 Connector to the ScoreHub NOTE: The DB9 Connector used to connect to the ScoreHub is NOT wired like an off-the-shelf DB9 cable.
- Page 6 To connect to the Web Configuration page of your ScoreHub ScoreHub IP Address 1. Get the IP address of your ScoreHub (on the main display) and the last 4 digits of your UID (on main display). 2. On a browser that is connected to the same LAN as your ScoreHub enter: http://ipaddress.
- Page 7 Programming Select Scoreboard Vendor and Sport Your can easily change and swap (click load scoreboard config team names in Real-Time. to change) Current IP Address Current Vendor number Static IP Address and code DHCP/Static Select IP Subnet If you select a wireless scoreboard, you can DHCP/Static DNS Select enter the RF Group and...
- Page 8 Chick the dropdown to see a list of available Wi-Fi connections Enter the password for the selected Wi-Fi Click to Connect or Disconnect Click Wi-Fi Save to Chick to Force the ScoreHub to save your selection look for updated software...
-
Page 9: Monitoring Status
Monitoring Status Most of the Information displayed on the main display of the ScoreHub is also displayed on the Status page. The data is updated about once a second, so the clock is not real-time. - Page 10 Using the Touch Screen GUI • Scroll up and down to To Enter the Touch-Screen GUI, select parameters. Touch the Main Display • Press Enter for 1 sec to enter Edit Mode. • Use Scroll up or Down to Menu Item change parameter Item Value values.
-
Page 11: Saving Parameters
Saving Parameters • After you make changes to parameters you will must save them. This is done by accessing menu item 00 and setting SAVE to 1. • Hold down the Enter Key for 1 second. • You will see SAVED displayed followed by the Restarting screen. - Page 12 1. Connect to a Wi-Fi that’s on the same local network as your Enter UID and Login ScoreHub. 2. Enter the IP Address of your ScoreHub in a browser on your smartphone. 3. Enter the last for digits of you UID to Login.
- Page 13 0 or 1 SBVENDOR 0 – 999 (download the latest ScoreHub codes from Sportzcast Website) SBCODE 0 – 999 Specific code for the Sport (from ScoreHub code sheet) IP ADDRESS Current IP Address (you can scroll if multiple addresses) RESET 0 –...
- Page 14 Parameters Parm# Description Values LAN DHCP DNS 0 or 1 Get DNS from DHCP LAN STATIC DNS xxx.xxx.xxx.xxx Static DNS Address WIFI SSID Wi-Fi SSID (use Left-Right to scroll and Enter to select) WIFI PASSWORD Password for the selected SSID WIFI CONFIG 0 –...
- Page 15 Parameters Parm# Description Values HOME TEAM Home Team Name UPDATE 0 – 1 (1=Force Update Check)
