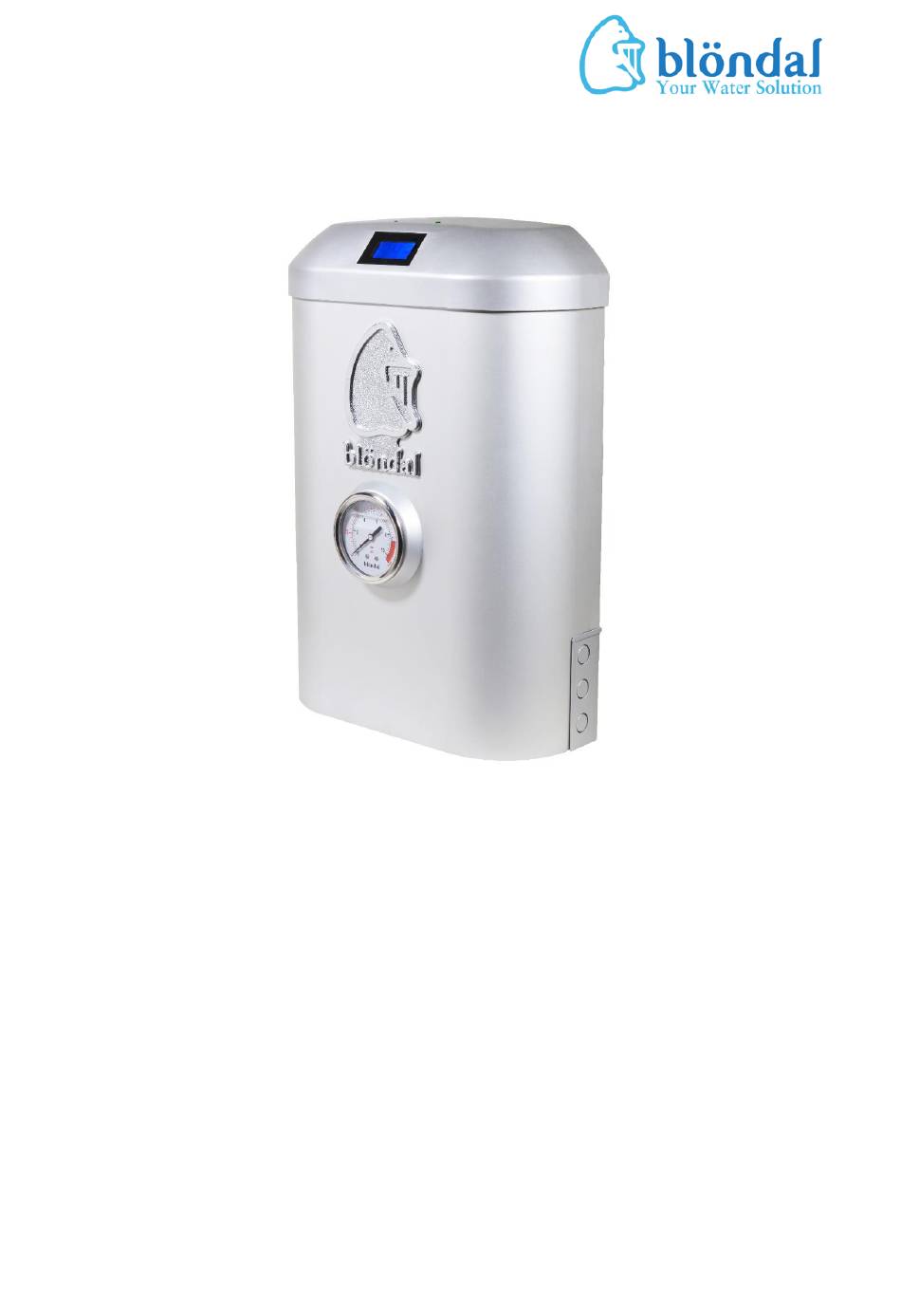

- Page 1 Källa 2 Point of Use Water Filter Operation Manual...
-
Page 2: Table Of Contents
Table of Contents Page 1. System Briefing 2. Technical Specification 3. Installation 4. Warning 5. Troubleshooting 6. Parts 7. Contact 20180108/TT/K8/Version 1.0... -
Page 3: System Briefing

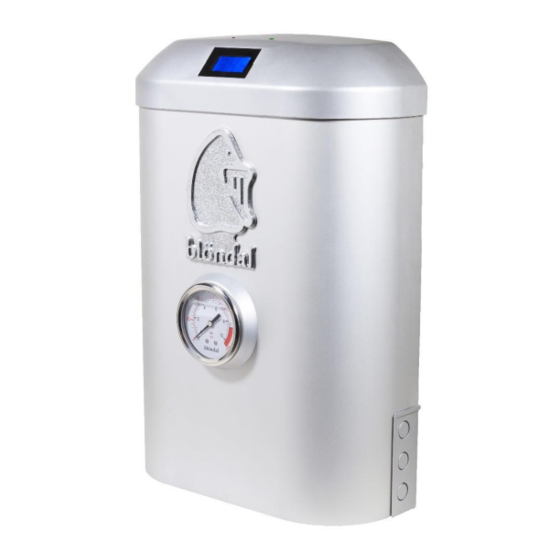

1. System Briefing Källa 2, the Point of Use filter comes with dual-cartridges namely the Ultra-Filtration Membrane (UF K8) and Activated Carbon (GAC K8) to be installed under the kitchen sink or on the table top. Källa 2 serves two main basic requirements of the kitchen water consumption;... -
Page 4: Technical Specification
2. Technical Specification Point of Use Filter Model: Källa 2 Dimension: H380 x W260 x D113 mm Weight: Approx. 4.0kg Power supply: 200~230mAh (1pc 3.0V CR 2032 Button Cell), & 600~800mAh/pc (2 pcs x LR6 AA 1.5V Battery) Average Flowrate: 2.0 ~ 3.0 lpm Max. -
Page 5: Installation
3. Installation Procedure Picture Remove the product from its packing. Uncover the top cover. a. Push the locking of top cover from the back’s holes to release the top cover. b. Lift the top cover up. 20180108/TT/K8/Version 1.0... - Page 6 Uncover the front cover. a. Facing the front cover, pull the front cover towards < 15deg. b. Pull the front cover upwards <15 deg Select the opening side (LEFT RIGHT) according to installation requirement at site. Break the 3 openings and insert speed connectors in order:...
- Page 7 dark ash found in the water otherwise to continue flushing. e. Connect GAC outlet and UF outlets to the side connectors. f. Insert tubing fully into speedfit follow by the lock pin insertion as indicated. Connect pressure gauge to ”T” speedfit connector according indication.
- Page 8 Insert 2pcs batteries to the black battery box. c. Re-fasten screws together with the PCB protector to the top cover. d. Press Digital Display Module button to check if the day counter is shown as “365” and the LED light reposition batteries.
-
Page 9: Warning
Hanging Källa 2 to the wall a. Drill 2 x M5 holes on the selected location wall with a distance of 148mm 148mm b. Insert the wall plugs provided and fasten the M2 screws to the holes c. Hang the Källa 2 onto the 2 screws d. -
Page 10: Troubleshooting
5. Troubleshooting Issue Check and Resolve Water supply is closed. Low/No water flow Temporarily water shortage in the area. from filter Filter inlet valve is closed. Water supply is closed. Low/No water Temporarily water shortage in the area. pressure from filter Filter inlet valve is closed. -
Page 11: Parts
6. Spare Parts No Picture Part Description Min. Order Quantity Ultra-Filtration Membrane 1 pc Cartridge (UF K8) Activated Carbon & Kinetic Degradation Fluxion 1 pc Cartridge (GAC K8) Digital Display Module with 1 set buzzer Pressure Gauge, 0 ~ 10 bar 1 pc 90deg Angle Speed Fit for 2 pcs... -
Page 12: Contact
7. Contact Malaysia Blondal Sales & Service Sdn. Bhd. No. 8, Jalan Jurunilai U1/20, 40150 Shah Alam, Selangor Darul Ehsan, Malaysia Tel: +603 5569 1888 Hotline: 1300 88 0123 Singapore Blondal (S) Pte. Ltd. 52 Ubi Avenue 3, Frontier Building #03-29,...
