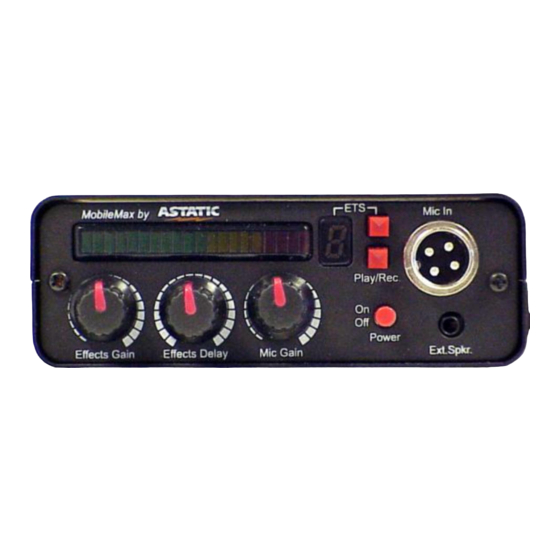

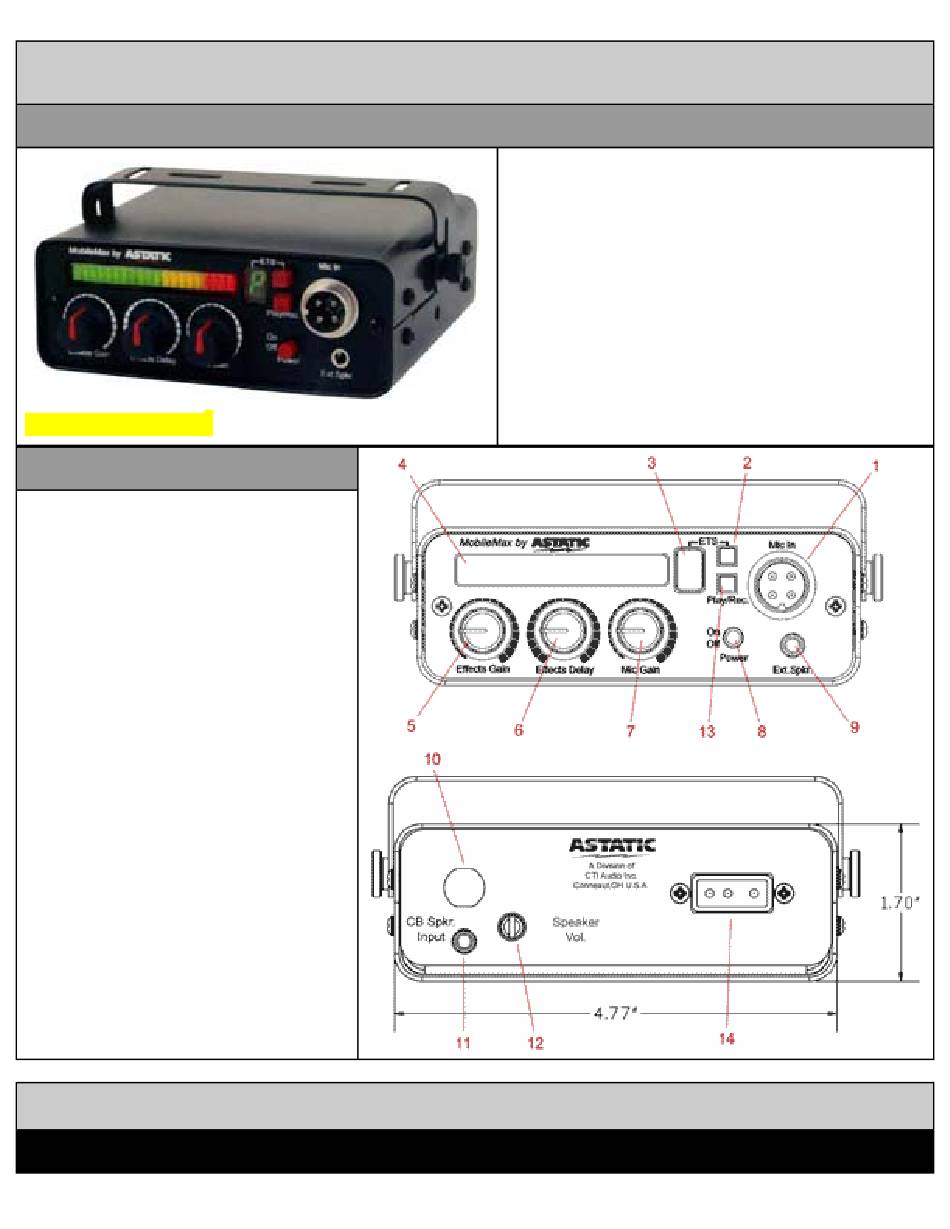

Controls

1. Standard 4 Pin XLR
Microphone Input
2. E.T.S. Selector Button
3. 7 segment E.T.S. Display
4. Large Illuminated VU Display
5. Adjustable Effects Gain
6. Adjustable Effects Delay
7. Adjustable Mic Gain
8. Power Button
9. External Speaker Jack
10. CB Input
11. CB Speaker Input
12. Adjustable External Speaker
Volume
13. Play / Record Button
14. Power Jack
http://www.bellscb.com/products/microphones/astatic/mobile_mic/mobilemax.htm (1 of 4)12/30/2003 7:50:29 PM
High Resolution Reverb, Slapback Echo
& 6 Second Sound Bite Recording
• 9 different ETS tones
• Universal Talkback
• Compatible with most CB Microphones and
Radio
MobileMax Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MobileMax and is the answer not in the manual?

Questions and answers

Summary of Contents for Astatic MobileMax

  • Page 1 6. Adjustable Effects Delay 7. Adjustable Mic Gain 8. Power Button 9. External Speaker Jack 10. CB Input 11. CB Speaker Input 12. Adjustable External Speaker Volume 13. Play / Record Button 14. Power Jack MobileMax Instructions http://www.bellscb.com/products/microphones/astatic/mobile_mic/mobilemax.htm (1 of 4)12/30/2003 7:50:29 PM...
  • Page 2 Plug your favorite microphone into Mic In (1). Plug mic cable (10) from the rear of the MobileMax into your CB radio. Now with On/Off switch (8) in the OUT position, your system will work as usual.
  • Page 3 If you connect a cable from the external speaker jack on your radio, to CB speaker input (CB Spkr Input) jack (11) on the MobileMax rear panel, you will hear the radio when the mic is un-keyed and hear yourself with effects when the mic is keyed. The Ext. Spkr jack (9) and the CB Spkr Input jack (11) are electrically isolated from the MobileMax chassis to reduce the possibility of RF feedback (squeal) problems.
  • Page 4 Have the SWR (Standing Wave Ratio) of your system checked. Preferable, it should be 1.5:1 or better. Also there is less chance of RF feedback problems if the MobileMax chassis is not connected to the metal chassis of your CB radio or vehicle. Mount the MobileMax to a non- metal panel or use double-sided foam tape.
