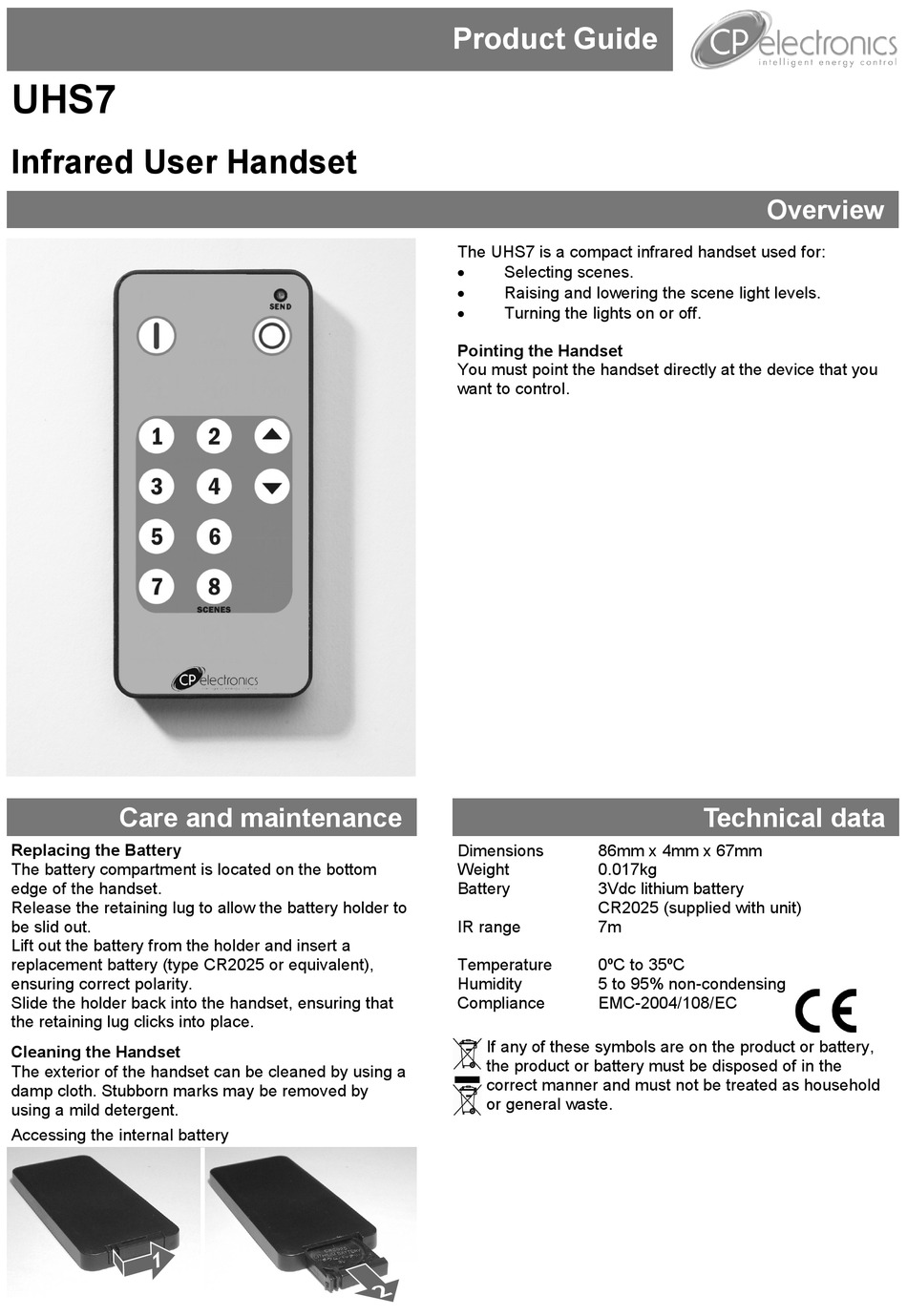

CP Electronics UHS7 Product Manual

UHS7
Infrared User Handset
Care and maintenance
Replacing the Battery
The battery compartment is located on the bottom
edge of the handset.
Release the retaining lug to allow the battery holder to
be slid out.
Lift out the battery from the holder and insert a
replacement battery (type CR2025 or equivalent),
ensuring correct polarity.
Slide the holder back into the handset, ensuring that
the retaining lug clicks into place.
Cleaning the Handset
The exterior of the handset can be cleaned by using a
damp cloth. Stubborn marks may be removed by
using a mild detergent.
Accessing the internal battery
Product Guide

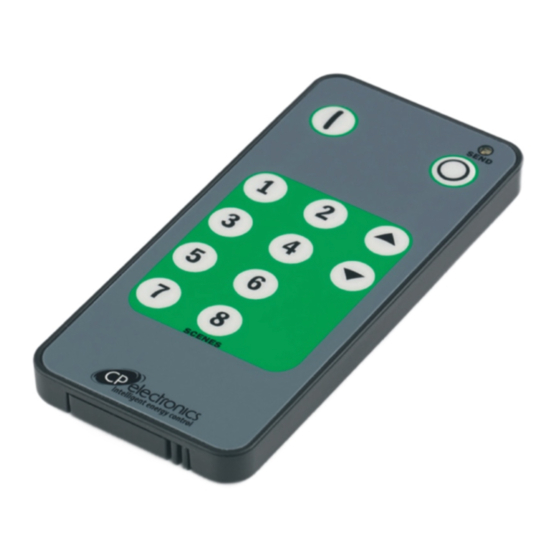

The UHS7 is a compact infrared handset used for:

Selecting scenes.

Raising and lowering the scene light levels.

Turning the lights on or off.
Pointing the Handset
You must point the handset directly at the device that you
want to control.
Dimensions 86mm x 4mm x 67mm
Weight 0.017kg
Battery 3Vdc lithium battery
CR2025 (supplied with unit)
IR range 7m
Temperature 0ºC to 35ºC
Humidity 5 to 95% non-condensing
Compliance EMC-2004/108/EC
If any of these symbols are on the product or battery,
the product or battery must be disposed of in the
correct manner and must not be treated as household
or general waste.
Overview
Technical data
