Panda Vending MF1500 Instruction Manual

Mini toy crane
Hide thumbs

Advertisement

Quick Links

Download this manual
MF1500 Mini Toy Crane Instruction
Content
第 0 页

Advertisement

loading
Need help?

Need help?

Do you have a question about the MF1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Panda Vending MF1500

Summary of Contents for Panda Vending MF1500

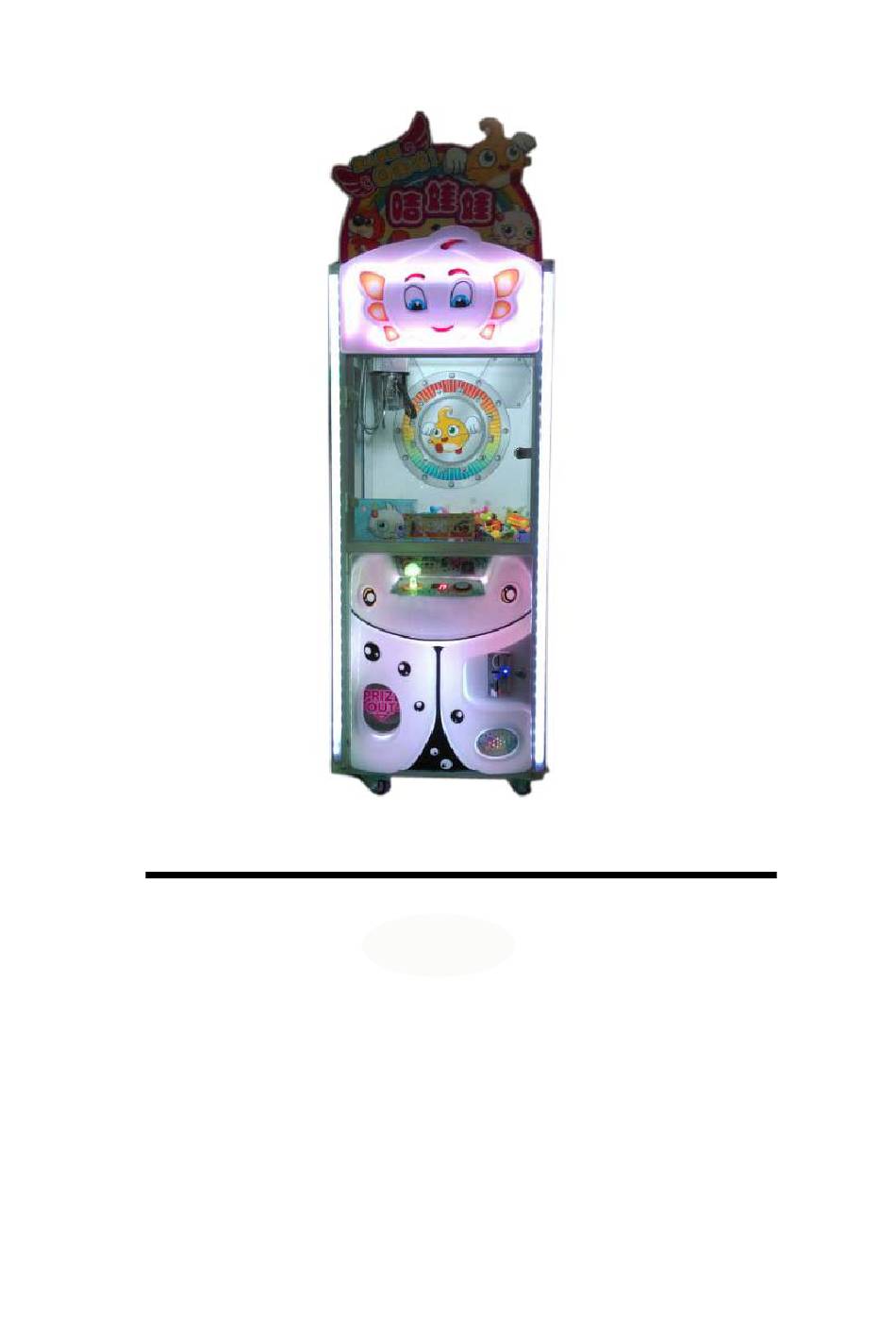

  • Page 1 MF1500 Mini Toy Crane Instruction Content 第 0 页...
  • Page 2 -------------------------------------------------------1 Content -------------------------------------------- Forewords ------------------------------------------ Security Warning ----------------------------------------- Accessories list --------------------------------------------- Install Condition Summary ------------------------------------------- --------------------------------------------- How to play --------------------------------------- Crown block summary ---------------------------------- Introduction of light eyes -------------------------------------- Counter introduction ------------------------------------ 14-18 Mainboard introduction ------------------------------------ 19-21 Winning probability algorithm -------------- ------------- ------...
  • Page 3 Preface Thanks for your purchasing our product”JiWaWa”（Hereinafter referred to as” The machine”）product，Before using this product,please read this instruction be carefully。When you start using this product,We belive that you have carefully read this instruction 。We have carefully witten all content for this instruction，any printing errors or omissions or translation errors hope the majority of users understanding.When the software need to upgrade,which relates to the content will have some change,We wouldn’t notice intentionally,please understand.
  • Page 4 Security warning (for the sake of safe use, be sure to read) In this instruction manual shows the following: ● Safty way for handling, installation, move, run, set up, maintenance of the machine ● To make full use of the machine's functionality provides detailed game set, play.
  • Page 5 Security Warning（ For the purpose of safe use,please must be read） The definition of the technical staff This manual for those who write for the object stores is made to ensure the smooth operation, be sure to be carried out by technical staff. Technical staff: refers engaged in machine design, manufacture, inspection, maintenance service person game manufacturers, as well as in the industrial and high-ranking graduate, has the same electrical, electronics, mechanical engineering...

  • Page 6: Security Warning

    ◆ No working ◆ No tied Security warning （ For safety you must read ) ◆ Don’t pull（When unplugging the power cord, do not pull the power cord, hand holding the power plug and pull it out） 。 ● Do not place objects on the power cord so that the power cord is clamped to avoid the machine, other products, such as walls.
  • Page 7 ● When resell the machine, be sure to attach this manual on the machine body. Note: If non-technical personnel, do not open the base cover. 2, if touching the internal parts. May result in electric shock or injury. 3, open the door must turn off the power.
  • Page 8 The machine installtion Install basic condition According to the specified instructions and procedures to install the machine。 ● ●Do not place objects on the ventilation holes near the back of the machine, avoid walls, etc. to make jam. Otherwise, the internal device will tend to high temperatures, may cause fire, malfunction.
  • Page 9 Machine brief introduction JiWaWa machine Features，Use the rocker move the hook to the favorite toy，Press the button in limited time，The hook will help you automobile automatic catch the toy，But,Whether can or can not catch the toy depends on your level and luck。The machine use the coin operated，Do not need people management，Very popular with many teenagers and childrens.

  • Page 10: Description Of The Machine

    Power button The button turn off all power AC Power input for this machine Request for connection When an exception occurs 220V/50Hz power Fuse please turn off the button （T5A ~250V） at once. When don’t use for Use same Spec in change long time.

  • Page 11: How To Play

    Signboard Claw Lock Operated step Rocker Lower claw button Fault,pay time display Coin Slot Prize slot Coin Lock Wheel How to Play? Operating instruction 1. Firstly,Plug the power line,open the power switch.As show below. 第 10 页...
  • Page 12 2. Throw game coin then start the game,Players control machine gift. 3. When players throw coin game,if don’t operated the machine,The machine will event then automatic claw the gift. 4. In limited time,The rocker control crown block four directions move.press the pew fetch,the claw also can automatic fetch.
  • Page 13 ① Front and rear motor ② Front final motion ③ Rear final motion When the Crown block moved to the front,the crown block will stop wouldn’t move to front by tap press.Keep rear final motion stop also is tap press crown Motor drive by claw.with two final motion control up,down and stop signal.
  • Page 14 How to adjust fall light eye, please adjust first before your start game. When start game,press “coin”or “try play”botton ,Look the indicator light （1） whether put off. If light is lit,maybe the exports have obstacles.please exclude. （2） Please use cross screwdriver,Adjust the sensitivity knob.Must be put off the light and clockwise rotation to the bottom(the weakest of sensitivity.
  • Page 15 Counter and Voltmeter： Coin Counter Gift Counter Claw stress voltmeter Coin box：about take in 1500pcs coin 第 14 页...
  • Page 16 第 15 页...
  • Page 17 About the machine mainboard Interface determined a.F/B: adjust front and back motor speed,clockwise Code Function increased and counterclockwise reduce b.U/D: adjust up and down motor speed,clockwise Connect the crown increased and counterclockwise reduce. Connect the power c:L/R:adjust left and right motor speed. Connet voice board clockwise increased and counterclockwise reduce.
  • Page 18 Before set the sell mode,Must be confirm with induction lighteye,otherwise can not be set. About machine mainboard Machine internal wiring diagram 25feet connect crown clock 1：front and back motor 2：left/right motor anode 3：up/down motor anode anode 4：Claw anode 5：front place signal 6：back place signal 7：...
  • Page 19 16:up/down motor 17:Claw cathode 18:GND 19: GND 20: GND About machine mainboard 6feet connect power 1:GND 2:5V 3:24V 4:GND 5：48V 6:12V 5feet connect equalizer 1：GND 3:Rolling signal 4： 5： J6 7feet connect rocker,button 1：GND 2:FORED 3:BACK 4:RIGHT 5:LEFT 6:DOWN 7:down claw button 12feet connect coin device and stopwatch 1：lighteye signal...
  • Page 20 10：GND 12:GND About machine mainboard 9feet connect voltmeter 1：CP- 2:CP+ 3： 4： 5： 6： 7： 8： 9： 14feet connect digitizer 1：place1 2：place2 3：A 10:12V J4 6feet connect voiceboard 1：IO3 2:IO2 3:5V 4:GND 5:IO1 6:12V 第 19 页...
  • Page 21 How to Count Winning probability Chance=10 times(SW2)divide 【5 times(SW1)+10 times(SW2)】equal to two thirds winning probability ,(only mode1 and mode3) SW1 1. 2. 3. 4. 5 . 6. 7. 8feet SW2 5.6.7.8 O：ON X：OFF 第 20 页...
  • Page 22 How to Count Winning probability 5.6.7 脚 Pull switch SW2 O:ON X：OFF SW2 is fixed value,covenient adjustment,deprecated set by oneself Probability count:10 times(SW2)divide 【5 times(SW1)+10 times(SW2 5.6.7.8 feet) Same two thirds winning probability For example:a:SW1 is 1, SW2 is 2 Probability”...
  • Page 23 How to count winning probability O：ON X：OFF pull switch SW3 1.2.3.4 feet ‘1’ OFF suitable signal and double ‘4’ OFF operating costs player on the left machine(recommend 4.Only technical staff(debug strong and weak force) double player on the right machine 5.when use the rocker,(SW3-2 on)the ‘2’...

  • Page 24: Fault Description

    ※ Note:all setting ensure the power is turn off, can be set. Fault description Fault code1:when the crown clock can’t complete full action,the display will show code 01 Fault Problem Examine and solve way code 1.Reboot power,if still can’t reset,please check the back and left place final motion is normal or not, use hand press,put,listen whether have”gege”sound, check the wire Can’t reset...
  • Page 25 1.rocker front,back fretting whether fault and loose 2.check motherboard the J1 plug to PIN。 3.crown clock left fretting whether fault or jam。 Rocker can’t to 4.front and back motor is fault,or can’t bite。 front and back 5.check rocke whether the J1 plug to PIN 。 6.whether the crown wire and machine wire is connect normal 。...
  • Page 26 1.check the up fretting whether has touch Fetch the gift, claw doesn’t phenomenon。 2.up fretting is fault or wire fall off。 rise, crown is homing. 3.motherboard fault。 1.check the down motor is fault? Fetch the gift, the claw and 2.up fretting is fault or wire fall off。 crown don’t move 3.motherboard fault。...
  • Page 27 1、When the out off the gift, the weak force became strong value,Must be will out gift。 2、Adjustment the weak force,when the gift is rising then fall down, keep the heavy and soft gift will fall naturally. Adjust the strength,pitch a few coin(play time at least 5),press fall claw adjust strength potentionmeter claw, fall the claw is your setting vaule with the highest voltage.the closed claw minimum voltage is by your desired value.
  • Page 28 This product manual describes all the randomness of the software is based on end-user license agreement terms and conditions and may only be used or copied in accordance with the requirements of the end-user license agreement. Copyright Panda Vending Limited. All rights reserved. 第 27 页...
