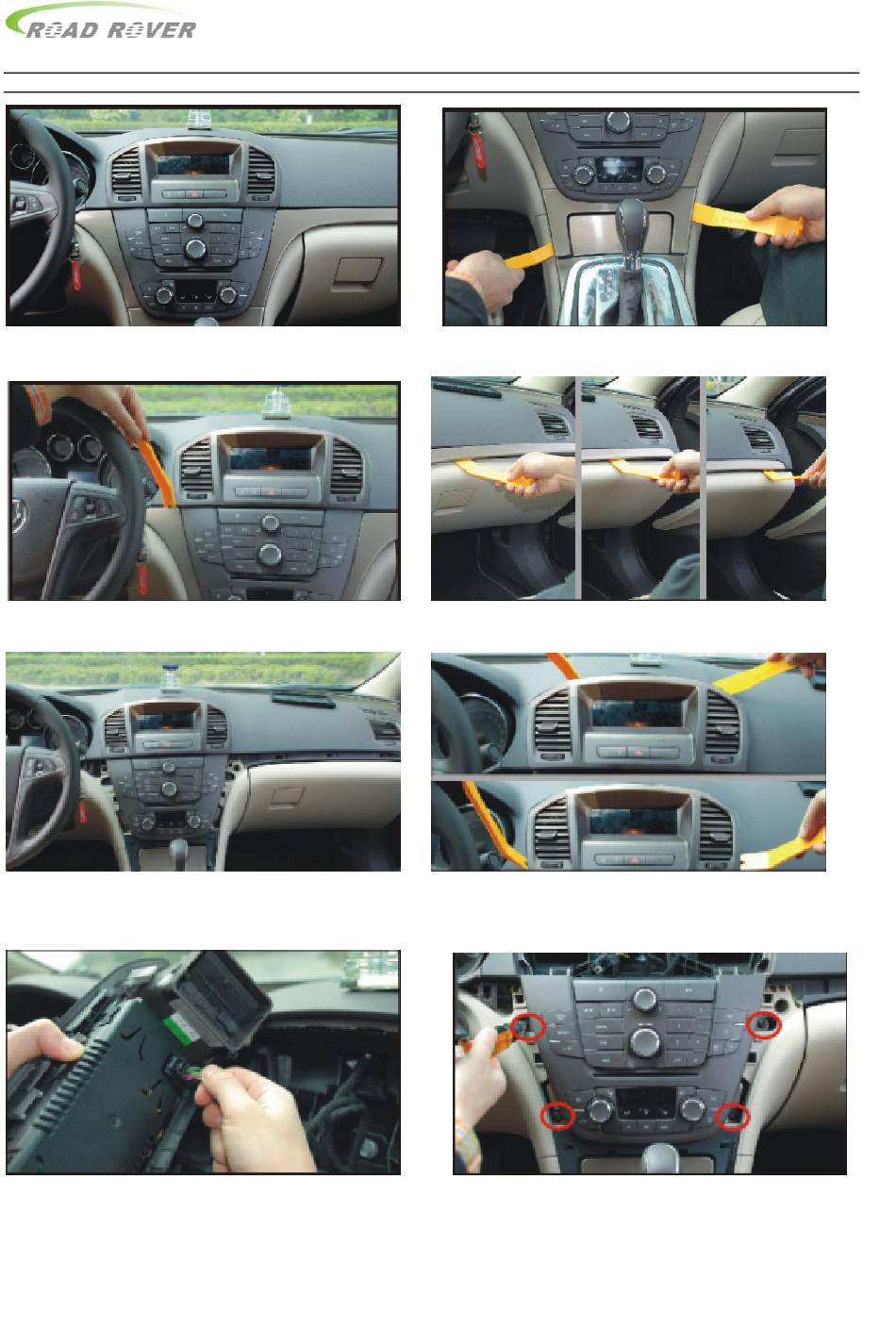

1. The original car audio system
3. Pry the left decorative board
5. Decorative boards taken away
7. Disconnect the back connection cables of
the display screen, and take off the display
frame of original car
Installing Guide of Opel Insignia
2. Pry the decorative board with crow plate
4. Pry the three buckles and the right decorative board
1
8. Pry the screws and the head unit board
of the original car
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Road Rover C7005BR
Summary of Contents for Road Rover C7005BR
- Page 1 Installing Guide of Opel Insignia 1. The original car audio system 2. Pry the decorative board with crow plate 3. Pry the left decorative board 4. Pry the three buckles and the right decorative board 5. Decorative boards taken away 6.
- Page 2 Installing Guide of Opel Insignia 9.Pry the four date wires in the back of the head unit 10. Pry the screws and take out the head unit 11. Disconnect the power cord and antenna in the 12. Pry the side plate of the glove box back of the head unit.
- Page 3 Installing Guide of Opel Insignia 17. Attached accessories: A.GPS Display Screen 18. Connect the Power Cord and AUX B. GPS Head Unit C. Fixing Brackets etc cables of the GPS device D. Screen Supplementary Mat E. AUX Cable F. Power Cord G. Data Wire H. AV Cable I.
- Page 4 Installing Guide of Opel Insignia 25.Connect the data wire, GPS antenna and 26. Pull the blue and green cables in the power cord, AV cable, etc data wire and AUX cable from the left gap to the place of display screen 27.Pull the power cord and data wire from the 28.
- Page 5 Installing Guide of Opel Insignia 33.Install the air outlet, button panel and iron 34. The diagram of GPS display screen installed buckles to the display screen of GPS device and be care of the buckles 35. Hide the AUX cable inside the side plate 36.
- Page 6 Installing Guide of Opel Insignia 41. Insert the switch cable to the uper place of 42. Connect the blue data wire in the AUX cable the display screen and connect with the plug and the blue cable of original car(11 pin) and pack of original car with electrician plastic 43.
- Page 7 Installing Guide of Opel Insignia 49. Installation done 50. Test every functions ■ Install GPS Antenna GPS antenna may be installed inside the car such as on the dashboard or coat rack; it may be also installed outside the bar such as the top of car or on the trunk lid. GPS antenna must have an open “visual field”...
