Thank you for purchasing our Turbo Blower.
Our product is produced with high quality materials and
manufacturing processes. Our superior workmanship
will give you the best product available in the air moving
market place. Please read the instructions carefully
prior to usage.
Fuji Electric Corp Of America

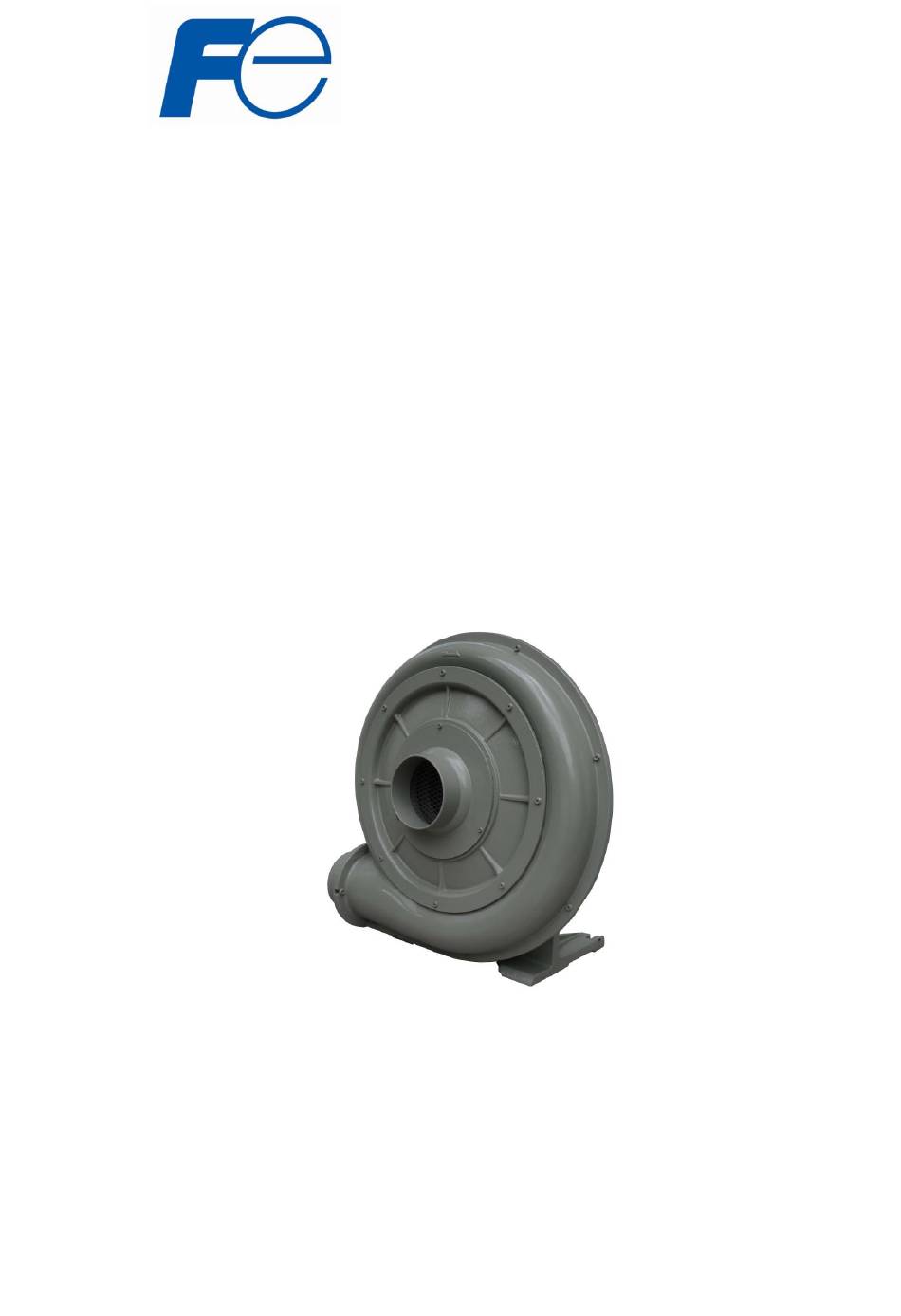

TURBO BLOWER
____________________________________
INSTRUCTION MANUAL
FDC SERIES
2018.03
Advertisement
Summary of Contents for Fuji Electric FDC Series
- Page 1 Our product is produced with high quality materials and manufacturing processes. Our superior workmanship will give you the best product available in the air moving market place. Please read the instructions carefully prior to usage. Fuji Electric Corp Of America 2018.03...
-
Page 2: Table Of Contents
CONTENT PAGE 1. SAFETY REQUIREMENT………………………………2 2. INSTALLATION……………………….…………………..3 3. OPERATION……………………………………………….6 4.TROUBLE-SHOOTING…………………………………9 ……………………………………………………10 PARTS LIST WARNING 1. This unit is designed to operate indoors, and is an environment that is a water-free and dust-free. 2. To avoid damaging this device, it must be absolutely prevented from dropping during transportation. -
Page 3: Safety Requirement
1.Safety requirements: Warning 1.1 The maximum permissible ambient and air temperature at the intake is + 40°c. 1.2 All the works of transportation, installation, maintenance and trouble shooting must be executed by a responsible, qualified personnel. 1.3 This device must be set up according to this instruction manual. 1.4 The grounding wire must be connected well accordingly. -
Page 4: Installation
2．Installation 2.1 Installation precautions: 2.2.1 To avoid vibration, the unit must be mounted on a rigid base. 2.2.2 Any flammable materials must be kept away from the unit. 2.2.3 Air and gases should be filtered before entering the intake by an intake or inline filter. - Page 5 2.2.1 Choose the correct circuit breaker to match the motor’s rated current. 2.2.2 We recommended when using the magnetic switch, the setting value of electric current is the motor’s rated current of 0.91 times. 2.2.3 Thermal protectors connection: 2.2.4 The ground wire must be connected to the grounding terminal. 2.2.5 The lead wires must be connected according to the diagram attached on the terminal box.
- Page 6 Single Phase Single Phase 50Hz/60HZ 50Hz/60Hz 100V~120V 200V~240V 200~240V Three phase Three phase 50Hz 220V/380V 50Hz 220V/440V 60Hz 230V/400V 60Hz 230V/460V Three phase 60Hz 230V/460V 380V/760V Note:The blower rotation is judged from the motor side.
-
Page 7: Operation
Fuji Model: FUJI Model Voltage(V) Phase(PH) Frequency(Hz) FDC-005A-7W 230/460 FDC-010A-7W 230/460 FDC-020A-7W 230/460 FDC-030A-7W 230/460 FDC-050A-7W 230/460 FDC-005P-5T 115/230 FDC-010P-5T 115/230 FDC-020P-2T 3 Operation: 3.1 These devices must be rotated as the “Arrow” direction marked on the casing. 3.2 For three phase, changing direction can be done by exchanging any two of the connected wires. - Page 8 ---FDC-050A-7W) is shipped with the following charts as L1. (FDC-075A-7W---FDC-010A-7W) is shipped with the following charts as R1. The outlet direction of all blowers can be changed as showed on the chart. FDC-005A-7W/FDC-010A-7W/FDC-020A-7W bottom Blower set Motor set FDC-030A-7W/FDC-050A-7W/FDC-075A-7W/FDC-100A-7W bottom Blower set Motor set...
- Page 9 45° angle 135° angle 225° angle Blower set Motor set 3.5.2 Directions for changing outlet direction: Remove the casing bolts and casing cover. Rotate the housing to the desired position. Re-assemble with casing bolts for final configuration. Caution Never disassemble the motor. If a malfunction occured after changing the outlet direction, Please contact with your nearest sales office.
-
Page 10: Trouble-Shooting
4 Trouble-shooting: Troubles Possible Cause Remedy Humming 1. One phase of line not connected 1. Connect sound 2. One Phase of stator winding open 2. Contact Factory 3. Bearings defective 3. Change bearings 4. Impeller jammed by foreign material 4. Clean Impeller 5. -
Page 11: Parts List
Parts List FDC-005A-7W----FDC-050A-7W Fig .No. Name of part Fig. No. Name of part Inlet flange Fan cover Terminal box cover Casing cover-front Gasket- T.Box cover O-ring(0.5HP-3HP) Terminal plate Nuts Terminal box Spring washer Cable gland Impeller Gasket-terminal box Outlet flange Casing Gasket-outlet flange O-ring... - Page 13 FDC-005P-5T----FDC-020P-2T Fig .No. Name of part Fig. No. Name of part Inlet flange Terminal box cover Gasket- T.Box cover Casing cover-front Terminal plate O-ring Terminal box Nuts Cable gland Spring washer Gasket-terminal box Impeller Outlet flange Gasket-outlet flange Casing Band-Capacitor O-ring Capacitor Casing cover-rear...
- Page 15 Fuji Electric Corp of America 50 Northfield Avenue Edison. NJ 08837 Tel: 510-440-1060 Fax:201-368-8258...
