Edge Lighting Controller Dial with Power Supply Operational Manual

© 2016 Edge Lighting. All Rights Reserved.
Operational Guide for
1- Turn the light on
TAP
1- Turn the light on
TAP
1- Turn the light on
TAP
Controller Dial with Power Supply

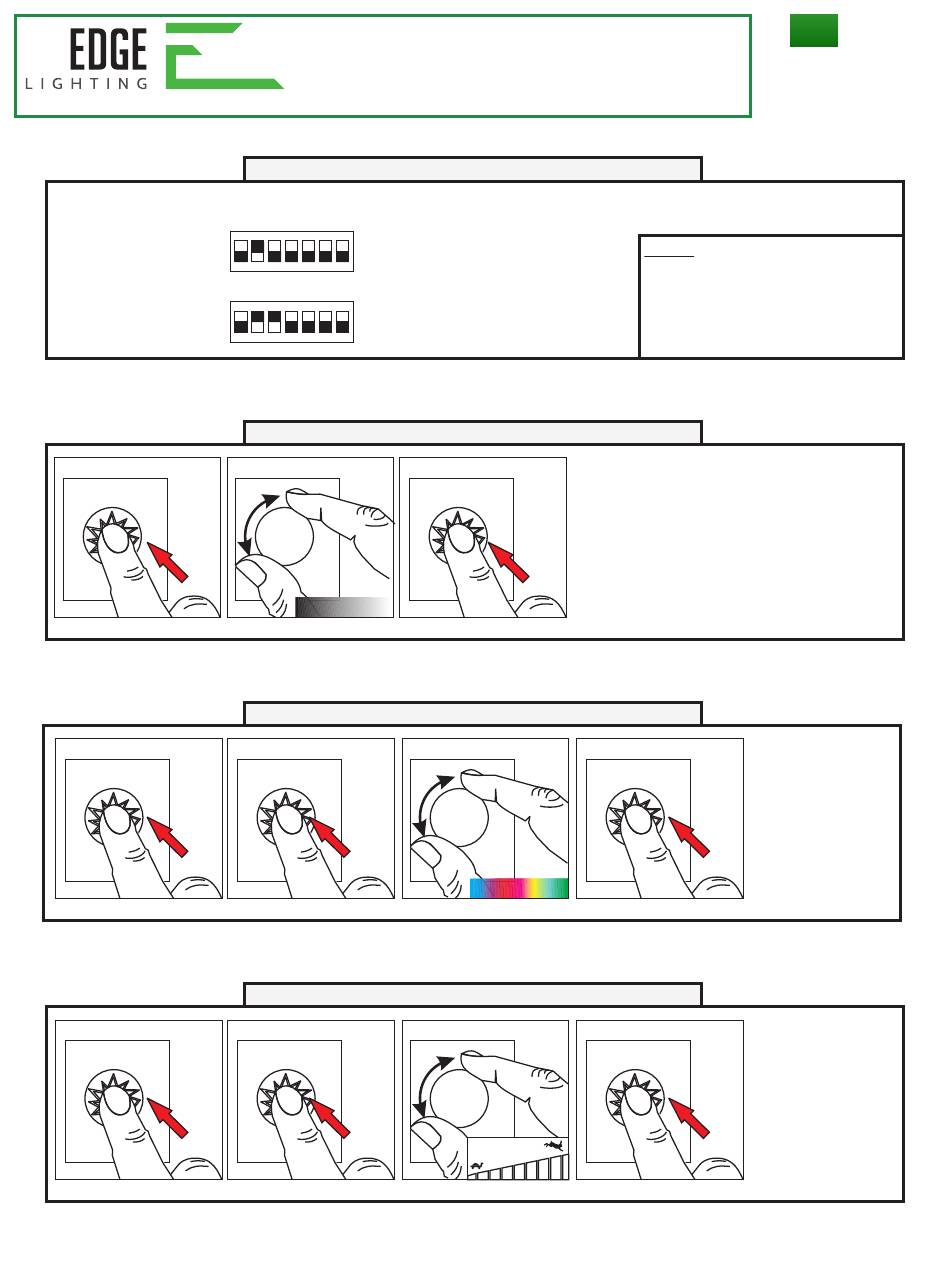

Configure your CDP by setting the DIP switches on the front:
O N
COLOR MODE
1 2 3 4 5 6 7
O N
CHASE MODE
1 2 3 4 5 6 7
2- Change brightness 3- Turn the light off
BRIGHTNESS
Advanced Operation for Color Mode
2- Activate configuration mode 3- Set Color
2 SEC
Advanced Operation for Chase Mode
2- Activate configuration mode 3- Set show speed
2 SEC
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
info@edgelighting.com
Selecting Modes
Operating CDP
TAP
4- Save color saving
4- Save color setting
CDP
NOTE: The DIP switches must
remain accessible after installation.
When making changes in the DIP
switch settings, disconnect and
reconnect the power supply to
activate new settings.
TAP
TAP
904-CDP-02
1
