Assembly Instruction Manual

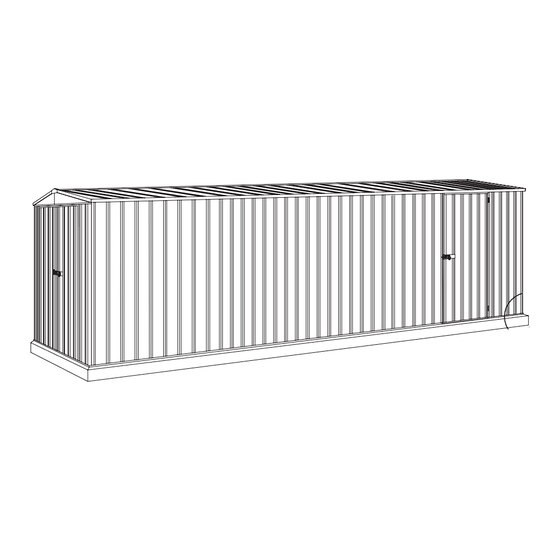

ABSCO UTILITY SHED
MODEL: 3060UTK
3.00mW x 5.96mD x 2.10mH
admin@absco.com.au
www.abscosheds.com.au

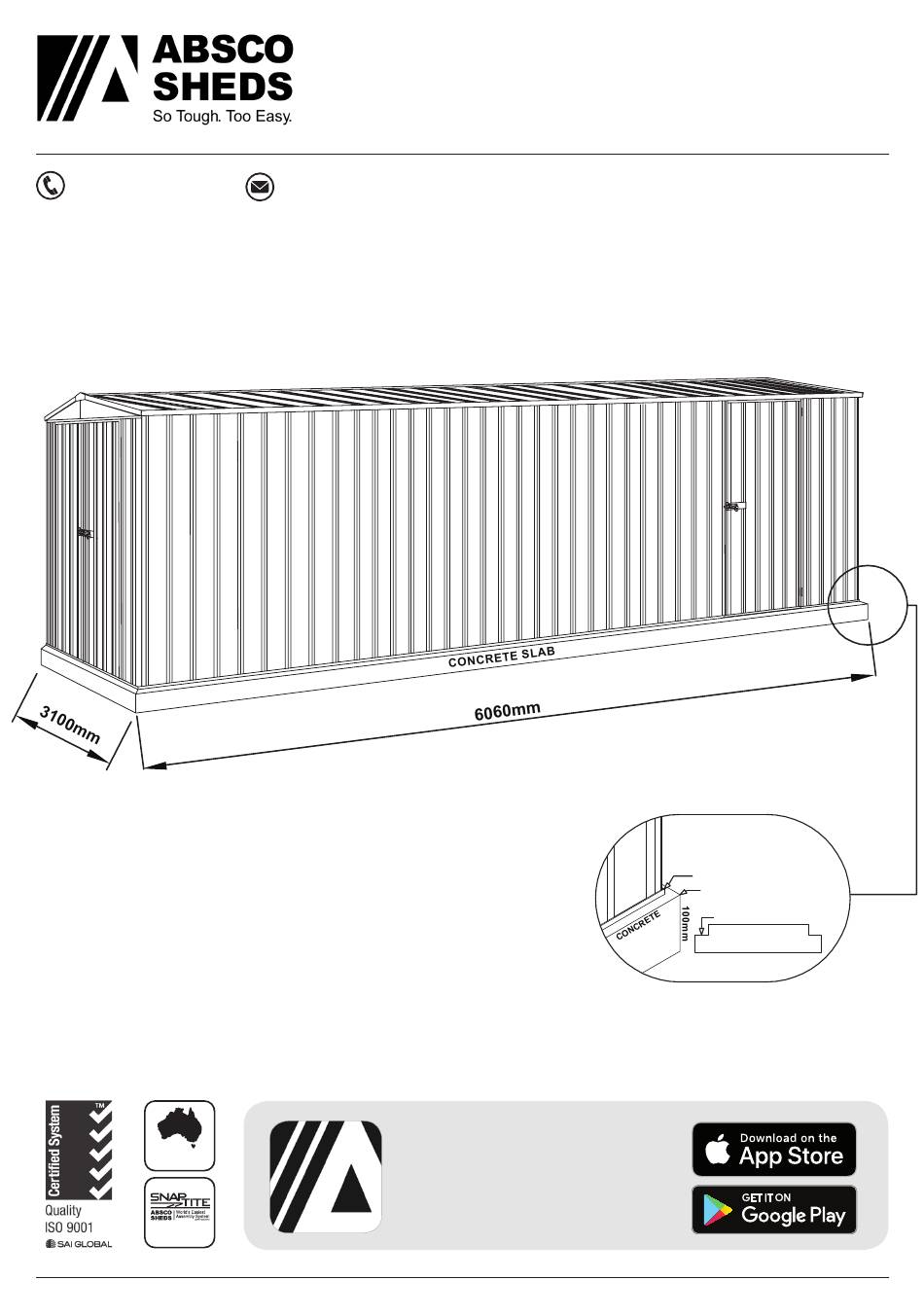

WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
feedback@absco.com.au
Download the Absco
ABSCO INDUSTRIES
ASSEMBLY INSTRUCTION MANUAL
Sheds Assembly App
for instructional videos
Absco Industries
Premier Shed Model: 23151GK
When laying concrete slab, ensure there
is a rebated edge 25mm deep around
the perimeter. This will help water egress
from the base of the shed.
SHED MODEL: 23151GK
Model: 3060UTK
2/05/2019
FRONT: 2.26m
SIDE:
1.52m
HEIGHT: 1.95m
BOTTOM CHANNEL
REBATED EDGE
75mm WIDE REBATE
CONCRETE SLAB
21-11-2017
PAGE 01
1.2
1
