ST1
Mod.
USE AND MAINTENANCE MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST1 and is the answer not in the manual?

Questions and answers

Summary of Contents for STUCCHI ST1

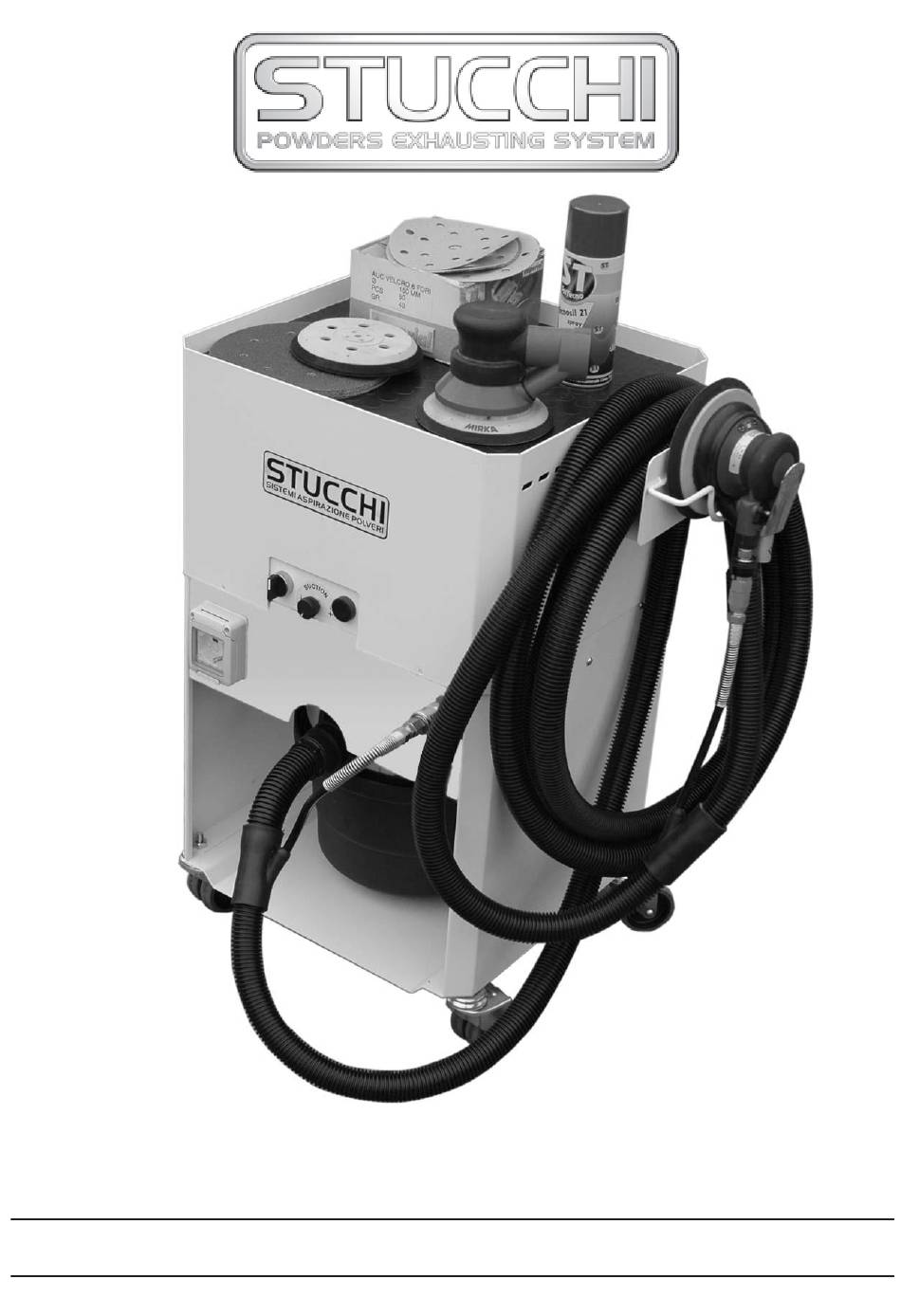

  • Page 1 Mod. USE AND MAINTENANCE MANUAL...
  • Page 2 Use and Maintenance Manual...

  • Page 3: Machine Declaration Of Conformity

    --------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- MACHINE DECLARATION OF CONFORMITY MANUFACTURER: STUCCHI 1950 S.r.l.s. Registered office: Via Arcisate, 1520157 Milano (Italy) Operational headquarters Via M.te Bisbino, 42 – 20021 Baranzate (MI) - Italy Tel +39 02/36538904 Fax +39 02/33301084 www.stucchi.net info@stucchi.net DECLARES THAT THE NEW MANUFACTURED MACHINE DESCRIBED BELOW: Type:....PORTABLE EXTRACTOR......

  • Page 4: Table Of Contents

    TABLE OF CONTENTS MACHINE DECLARATION OF CONFORMITY 1 FOREWORD ....................6 General instructions ................6 General Safety instructions ............Electrical safety conditions ............2 GENERAL INFORMATION .............. Applied Standards ................Identification data ................Warranty .................... 10 Definitions and symbols ................3 PRELIMINARY INFORMATION ON THE MACHINE ....
  • Page 5 6 TROUBLESHOOTING ..................Troubleshooting ............. Replacing the electronic control board ............Emptying the powder container Electric motor ................. 7 DECOMMISSIONING AND DISMANTLING ...... Instructions for decommissioning ..........Changes ..................Use and Maintenance manual...

  • Page 6: Foreword

    General instructions Carefully read the instructions for use before using the machine. This manual is an integral part of the machine and/or the system supplied by STUCCHI 1950 SRLS. If this manual is not delivered with the machine and/or system or is lost, we recommend you to ask for a copy to STUCCHI 1950 SRLS, which will provide it in the shortest time possible.

  • Page 7: General Safety Instructions

    Information contained in this manual is subject to change without prior notice. General safety instructions Any tampering with the machine by the client relieves STUCCHI 1950 SRLS of any liability and the user will be considered the sole responsible towards the competent bodies for accident prevention.

  • Page 8: Electrical Safety Conditions

    ¾ Use safety goggles while working. ¾ Do not inhale smoke from lit cigarettes or matches. ¾ Do not use the machine to extract flammable fluids. ¾ Keep openings free from dust, rags, hair or any item that could reduce the extraction performance.

  • Page 9: General Information

    Safety of machinery - Basic concepts; Part 2. EN 60204-1 Safety of machinery. Electrical equipment of machines. 89/392/EEC Machinery Directive. Identification data Manufacturer ....................STUCCHI 1950 S.r.l.s. Address: ........................Via Arcisate, 15 20157 - MILANO - ITALY Tel. ++ 39 02 36538904 Fax ++39 02 33301084 E-mail: info@stucchi.net Machine: ......ROUGHING, FINISHING, POLISHING AND EXTRACTION SYSTEM...

  • Page 10: Warranty

    On delivery, verify that the machine and any individual accessories are not damaged because of transport or handling operations. Any complaint must be sent in writing to STUCCHI 1950 SRLS within 8 (eight) days from the reception date, with a copy of the delivery documents countersigned by the carrier or handling operator.
  • Page 11 ! Warning This symbol is used in the manual to indicate potentially dangerous situations that, if not avoided, MAY CAUSE INJURIES TO THE OPERATOR(S) OR OTHER PEOPLE. To drawn attention to the importance of certain points of this manual that, if not observed, can cause damage to the machine, we will use the following term: “IMPORTANT”.

  • Page 12: Preliminary Information On The Machine

    3. Preliminary information on the machine General description The ST1 (Illustration for presentation purposes only)is a professional extractor that performs automatic filter cleaning. (AUT-OFF-MAN) Button Extraction regulator Button for additional beating Support Automatic Automatic 220V lubricated 50/60Hz plug air outlet...
  • Page 13 If the machine is not connected to the air mains, because you are using electrical equipment, verify on the pressure gauge that the pressure inside the tank is always above 2 bar and never exceeds 8 bar. ( ONLY MODEL ST1-C ) Use and Maintenance manual...
  • Page 14 Technical data Illustration for presentation purposes only GENERAL TECHNICAL DATA Width (mm) ....................... Length (mm) ...................... Height (mm) ......................Capacity (m3/h) ......................300 Noise level (dBA) ....................Extraction volume (m3/h) ................... Extraction vacuum (Mbar) ................. Feed air pressure (bar) ................max 8 Extraction fan with automatic activation (W) ..........

  • Page 15: Intended Use

    Intended use The “ST1” machine, dealt with in this manual, has been designed to: - Extract air and powder particles produced by abrasive tools while working on painted or puttied surfaces. - Filter the extracted air separating heavy parts. - Release filtered air into the environment.

  • Page 16: Transport And Installation

    4. Transport and installation Transport Machines are packaged before shipment. Transport must be performed using appropriate means, fastening the machine firmly. Handling must be performed using a lift truck or pallet truck. The machine is fitted with wheels and can be positioned manually. If the machine needs to be stored, place it in a covered area and avoid overlapping loads that could irreparably damage the machine.

  • Page 17: Allowed Operational Areas

    Installation As the machine is a wheeled system, it does not require installation. Allowed operating areas The work station and operating areas needed for the processing to be performed with the machine can be identified in the following diagram. Connections and checks Connections must be carried out by qualified and authorised personnel, who must follow the indications given in the following table and diagram.

  • Page 18: Preparation For Use Of The Machine

    5. Preparation for use of the machine General instructions Before using the machine for the first time, get to know the controls following the instructions in the manual. Operation description All controls are located on the front part of the machine. (Illustration for presentation purposes only) 3-position AUT-OFF-MAN button OFF position - the machine is in stand-by AUT position - the machine works in automatic mode...

  • Page 19: Using The Machine

    Using the tool The machine has been designed for the simultaneous operation of the extraction system and electrical or pneumatic tool. To start it up insert the plug into the power socket. If working with an electrical tool, insert the tool plug into the appropriate socket located on the machine front part and turn the button to AUT so that extraction starts automatically when the tool is switched on.

  • Page 20: Troubleshooting

    6. Troubleshooting and maintenance Troubleshooting The most recurring defects and their elimination are indicated in the following table. DEFECTS POSSIBLE CAUSE POSSIBLE SOLUTION The machine does not start Not connected to the mains Connect the control panel terminal board to the mains Lack of mains voltage Check the main panel and existing safety devices...

  • Page 21: Replacing The Electronic Control Board

    Replacing the electronic control board Please follow the procedure indicated below to replace the electronic control board:  Remove the upper closure casing of the machine  Remove the cover that contains the electronic control board  Disconnect the boards' power connector ...

  • Page 22: Electric Motor

    Electric motor Check every six months that the electric motor brushes are still in good working order. If they are not, replace them. Follow the procedure indicated below to replace the brushes correctly: Stop machine operation 1) combined action for cap extraction (the use of safety gloves is recommended) 2) remove the fixing screws 3) pull out the brush.

  • Page 23: Decommissioning And Dismantling

    Instructions for decommissioning At the end of the machine life cycle, the “ST1-C” can be completely dismantled and scrapped. Qualified technicians should carry out this operation using all accident-prevention measures and complying with the regulations in force on waste disposal on the basis of their composition.
  • Page 24 STUCCHI 1950 S.r.l.s. Registered office: Via Arcisate, 1520157 Milano (Italy) Operational headquarters Via M.te Bisbino, 42 – 20021 Baranzate (MI) - Italy Tel +39 02/36538904 Fax +39 02/33301084 www.stucchi.net info@stucchi.net Tax code and VAT number 08033540967...
