Summary of Contents for multicomp PRO Pi-4

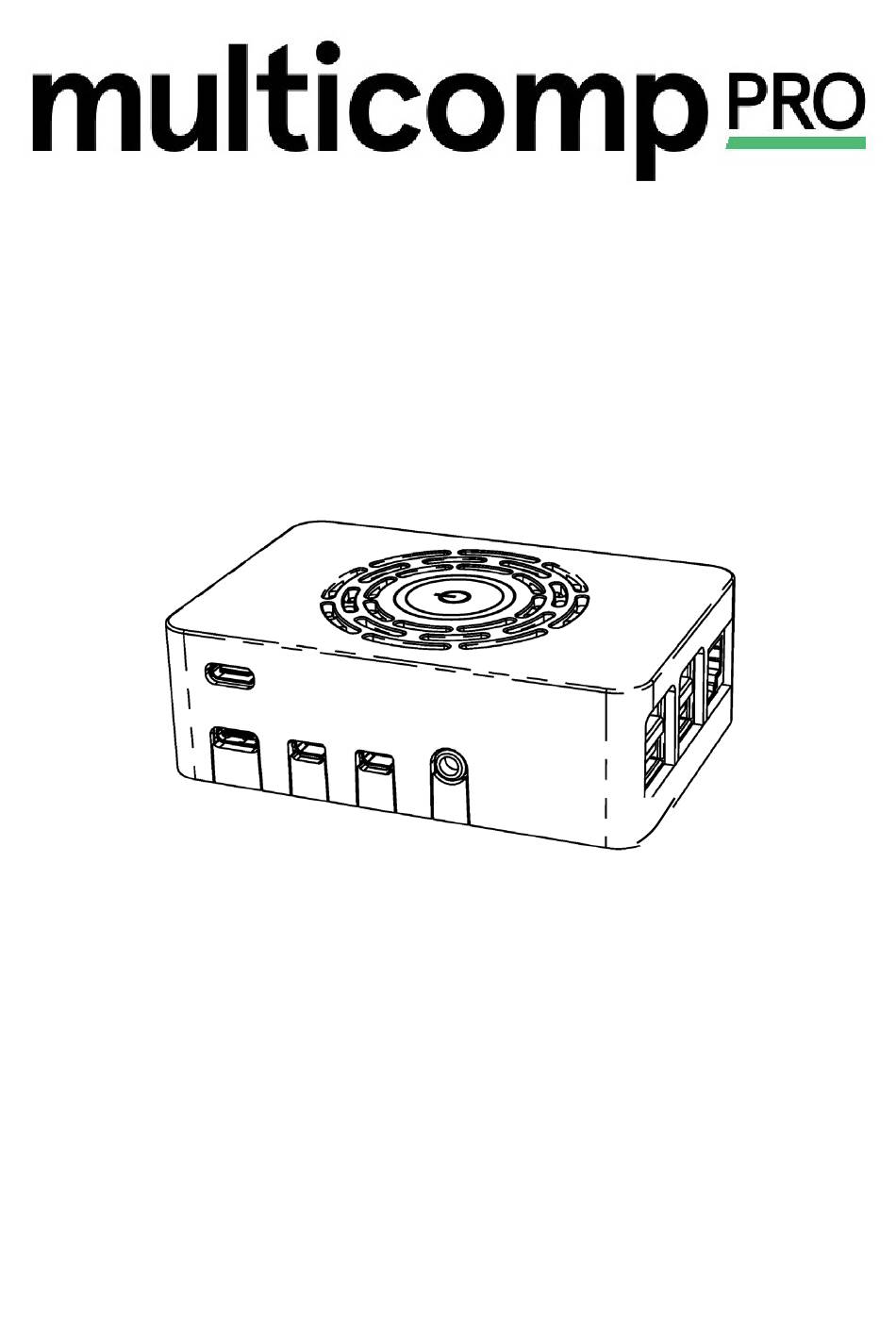

- Page 1 Pi-4 Power HAT Case Assembly and Quick Start Guide...
- Page 2 IMPORTANT SAFETY INFORMATION When using electronic components basic safety precautions should always be followed. WARNING: This is an electrostatic sensitive device, take precautions to ground yourself during the assembly procedure. ASSEMBLY Insert the Pi (not included) main board into the casing lower part as shown.
- Page 3 Route the wire neatly under the lugs on the fan support and connect the fan wiring to the two pin header on the PCB noting the polarity as shown. Clip the PCB onto the mounting pillars ensuring the riser pins locate through the holes in the board.
- Page 4 OPERATION Note: The upper USB socket must be used to connect the Power Supply to the Pi. If the lower socket is used the push button startup/shutdown will not function. To start your Pi: Press the STAND-BY button > 1 sec. LED ring goes GREEN.
