ACSI HAGER 45CE Instructions

ELECTRIC TRIM CONTROL INSTRUCTIONS
MOTOR-CONTROLLED ELECTRIC LOCKING/UNLOCKING
1560 - Fail Safe (Power Lock):
Outside trim is locked when power is applied and unlocked when power is removed.
Trim control will unlock in the event of a power failure.
1570 - Fail Secure (Power Unlock):
Outside trim is unlocked when power is applied and locked when power is removed.
Trim control will lock in the event of a power failure.
Key Function:
The outside trim may be momentarily unlocked with a
key even though the trim control is electrically locked.
Electrical Specifications:
Voltage: 12-24V AC/DC (11V - 30V)
Current: 250mA MAX Inrush, 10mA MAX Holding
Non-polarized Leads
Note: Power must be applied to the trim control after a switch slider setting change.
2720 CLARK AVE. ~ ST. LOUIS, MO 63103 ~ 1-800-753-5558 ~ www.acsi-inc.com
HAGER 45CE
2-Conductor Wire Run
Distance
12V/24V
125'/250'
200'/400'
300'/600'
500'/1000'
750'/1500'
1250'/2500'

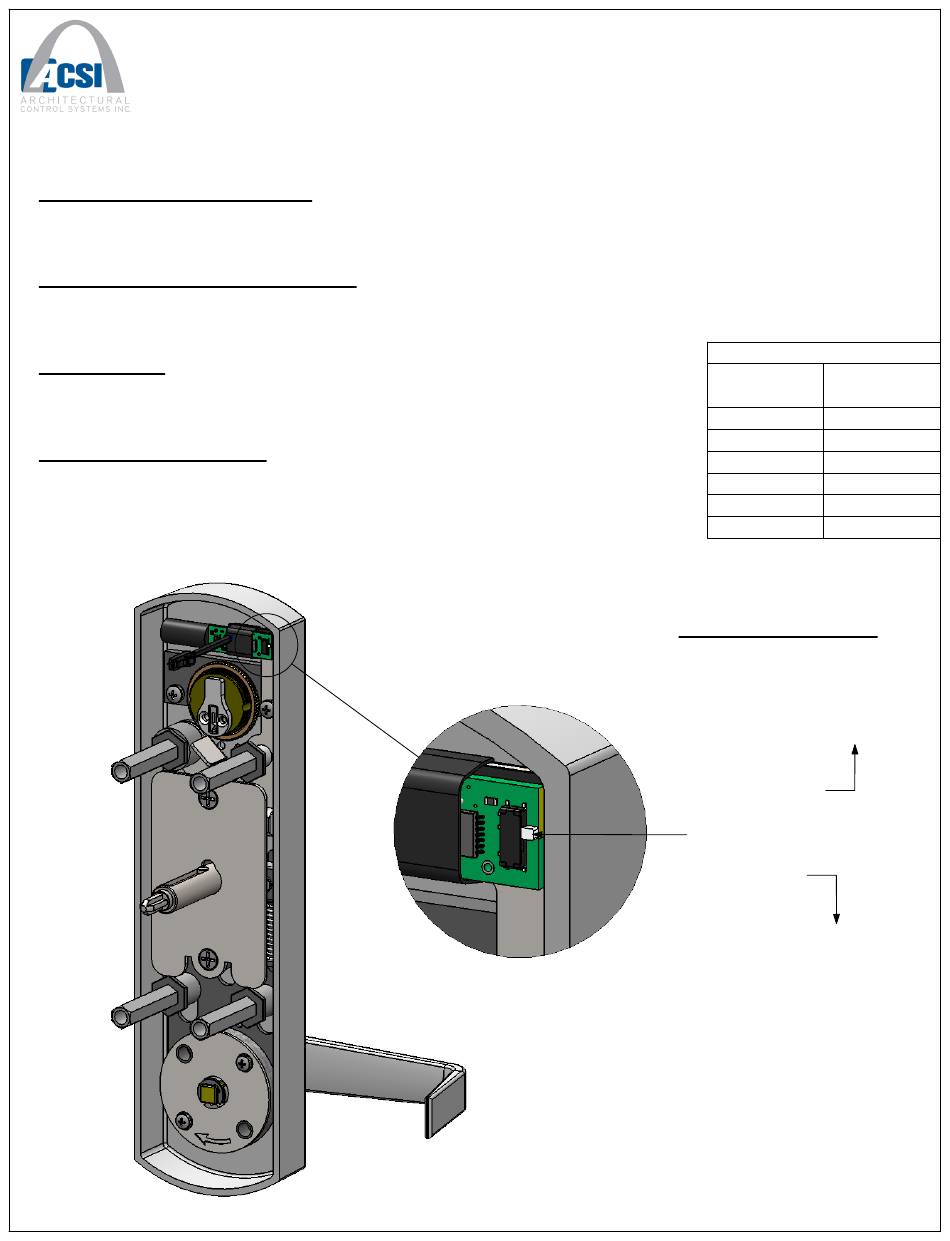

Switch Slider Settings:
Yellow: Fail Secure
Green: Fail Safe
FAIL SECURE
YELLOW
SWITCH SLIDER
GREEN
FAIL SAFE
Wire Gauge
22
20
18
16
14
12
II-E1500-45
REV. 01/2019
