Desert Spring DS-AF15 Installation And Operation Manual

DS-AF15 AutoFlush
Installation and
Operation Guide
Designed for Installation With
All Desert Spring Rotary Disc
Humidi er Models

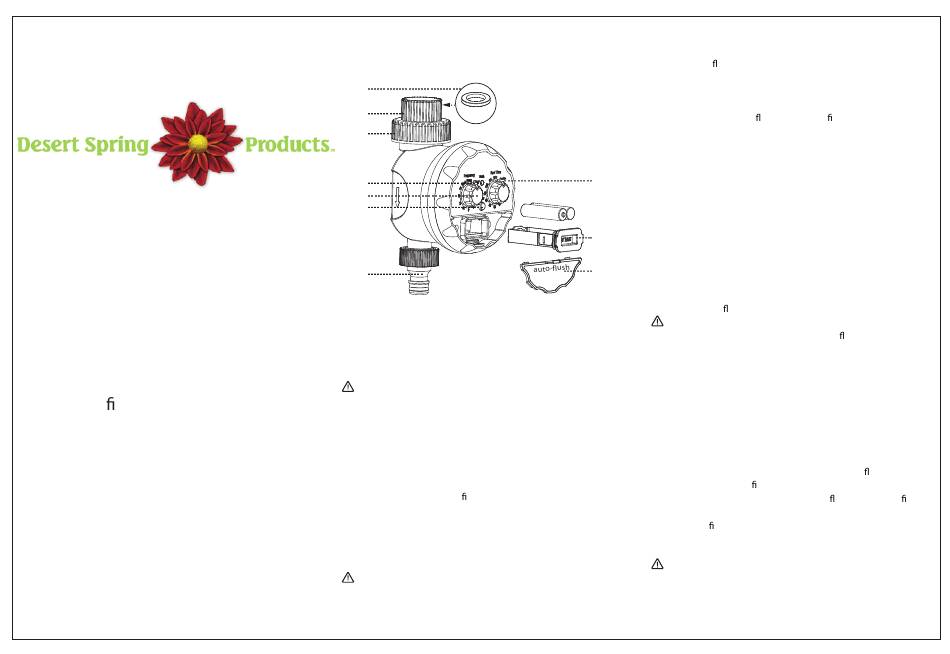

TIMER FEATURES

⑩
③
④
⑨
⑤
⑧
⑦
① B attery compartment & ② Battery compartment
cover
Slide out the battery compartment ①, and insert 2x
(LR03/AAA) 1.5V alkaline batteries.
WARNING
a. Use only fresh alkaline batteries at the beginning of
the season. DO NOT use rechargeable batteries.
b. Test the unit by turning the Run Time knob to ON
position. You should hear the sound of the motor
within 10 seconds. If you do not hear the sound,
check if the batteries are installed correctly.
c. Turn Run Time to OFF position before connecting
to the drain of the humidi er.
③ 3/4'' Drain adaptor & ④ Collar ring
Turn loose the collar ring ④ until the drain adaptor ③
is unlocked, screw the drain adaptor ③on to the drain
tight and then lock them tight with the collar ring ④.
WARNING
DO NOT use spanners or pliers to avoid damage to the
timer.
⑤Frequency knob
Determine ush interval, ranging from once per hour to
once per week.
⑥Run Time knob
Choose how long to ush the humidi er , ranging from one
minute to 120 minutes.
⑦Male snap-on connector
Connect hose attachment to the male snap-on
⑥
connector ⑦ at the bottom of the timer.
⑧ Delay button
To delay the start watering time， press Delay button
①
for more than 3 secs until led is constantly ON, then
each press of delay button means 1 hour delay of
the next start watering time.
②
⑨ Led indicator
Led indicator ashes once every 4 seconds.
WARNING
Replace with new batteries if led indicator ashes
quickly or on steady.
⑩ Washer
Ensure washer is in place for proper seal.

PROGRAM TIMER

1. Set Frequency: determine how often you will ush the
humidi er from once per hour to once per week.
2. Set Run Time: de termine how long to ush the humidi er ,
ranging from one minute to 120 minutes.
NOTE: The rst cycle will start X hours later, X is
the set Frequency hours.
WARNING
Frequency should always be longer than
(Example: Frequency=1H, Run Time=90 minutes, is
NOT a valid setting.)
（EXAMPLE 3)
Run Time .
