Summary of Contents for Iluv Aud 5

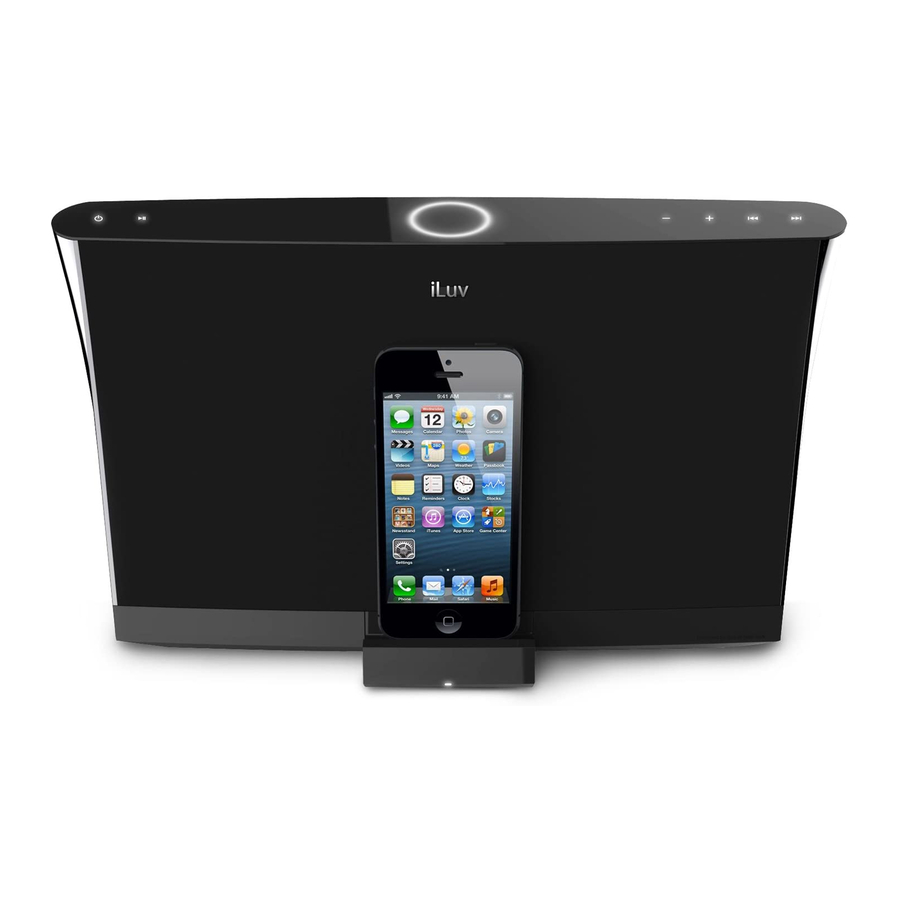

- Page 2 Aud 5 Apple Lightning Speaker Dock Model No: AUD5BLK Quick Start Guide...
- Page 3 Welcome. Thank you for your purchase. Visit our website at www.iLuv.com or support.iLuv.com for more information.
-
Page 4: Table Of Contents
CONTENTS | Apple Lightning Speaker Dock | Model No: AUD5BLK WHAT’S INCLUDED 3, 4 POWERING UP 5, 6 CHARGING/PLAYING 7, 8 CONTROLS 9, 10 CONNECTING OTHER DEVICES 11, 12 SPECIFICATIONS WARRANTY... -
Page 5: What's Included
WHAT’S INCLUDED Aud 5 Main Unit AC Adapter... - Page 6 | CE QUI EST INCLUS | TOIMITUKSEEN KUULUU Unité principale Päälaite Adaptateur secteur AC-adapteri | QUÉ SE INCLUYE | VAD INKLUDERAS Unidad principal Huvudenhet Adaptador Corriente AC-adapter | COSA È INCLUSO | 包装内包含 Unità principale 主机 Adattatore AC 电源 | WAS IST ENTHALTEN | 구성품...
-
Page 7: Powering Up
POWERING UP Connect AC adapter to an outlet. Connect other end of the adapter to the port behind the main unit. - Page 8 | METTEZ EN MARCHE | KÄYNNISTETÄÄN Branchez l'adaptateur secteur dans la prise. Liitä AC-adapteri pistorasiaan. Connectez l'autre extrémité de l'adaptateur au port derrière Liitä adapterin toinen pää päälaitteen takana olevaan porttiin. l'unité principale. | ENCENDERLO | STARTA Conecte el adaptador AC a la toma de corriente. Anslut AC-adaptern till uttaget.
-
Page 9: Charging/Playing
CHARGING/PLAYING Align your iPhone 5, iPod Touch (5th generation), or iPod Nano (7th generation) with the Lightning connector and connect. - Page 10 | CHARGEMENT / LECTURE | LADATAAN/TOISTETAAN Alignez votre iPhone 5, iPod touch (5e génération) ou iPod nano (7e génération) Kohdista iPhone 5, iPod touch (5. sukupolvi) tai iPod nano (7. sukupolvi) avec le connecteur Lightning, et connectez-vous. Lightning-liittimeen ja muodosta yhteys. | CARGAR/REPRODUCIR | LADDA / SPELA Alínea tu iPhone 5, iPod touch (de 5.ª...
-
Page 11: Controls
CONTROLS LED Power Indicator press to go to beginning or previous track, press and hold to rewind press for next track, Power Play/Pause Volume Track Change press and hold to fast forward... - Page 12 | COMMANDES | OHJAIMET DEL Indicateur d'alimentation LED Virtaosoitin Marche Virta Lecture / Pause Toista/tauko Volume Äänenvoimakkuus Changer les pistes Raidan vaihto | KONTROLLER | CONTROLES Indicador LED de energía LED-strömindikator Energía Ström Reproducir/pausar Spela / Pausa Volumen Volym Cambio de pista Byt låt | 控制按钮...
-
Page 13: Connecting Other Devices
CONNECTING OTHER DEVICES Plug AUX-IN cable into the back of the main unit Connect the other end of cable to (cable not included). your audio device. MP3 Player Smartphone Tablet (AUX-IN prior) - Page 14 | CONNEXION D'AUTRES APPAREILS | LIITETÄÄN MUITA LAITTEITA Branchez câble AUX-IN à l'arrière de l'unité principale (câble non fourni). Liitä AUX-IN -kaapeli päälaitteen taakse (kaapeli ei kuulu toimitukseen). Branchez l'autre extrémité du câble à votre périphérique audio. Liitä kaapelin toinen pää audiolaitteeseesi. | ANSLUT ANDRA ENHETER | CONECTAR OTROS DISPOSITIVOS Conecte el cable AUX-IN en la parte posterior de la unidad principal (cable no incluido).
-
Page 15: Specifications
SPECIFICATIONS Weight 1.4Kg / 3lb 1.38oz Dimensions 319mm x137mm x 172mm (W x H x D) 12.5in x 6.8in x 5.4in iPhone 5, iPod Touch (5th generation), Compatibility iPod Nano (7th generation) AUX-IN, Connectors Apple Lightning Connector Input Power 12V 2.5A Output Power 7.5W x 2 @1% THD... -
Page 16: Warranty
U.S. Patent and Trademark O ce, and may be registered or pending registration in other countries. All other iLuv® trademarks, service marks, and logos may be registered or pending registration in the U.S. or in other countries. All other trademarks or registered trademarks are the property of their respective owners. - Page 17 MEMO...
- Page 18 MEMO...
- Page 19 This product conforms to all applicable EU Directive requirements. When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC (WEEE). Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste.
