Matrox Monarch Device Setup Manual

Step 1 -- Powering up the Monarch and setting the IP mode
On initial power up, Monarch automatically boots in DHCP IP mode to connect to a DHCP-enabled network, but
you can force Monarch to boot in Static IP mode (169.254.1.11)* if there is no DHCP network available.
Power up the Monarch by connecting the external power supply to an AC outlet. The following will occur:
If you have a

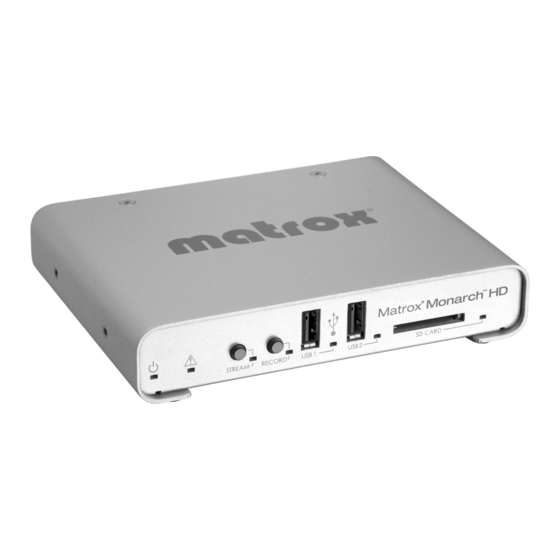

Monarch HD
Various LEDs, including
If you have a
the Warning (
Monarch HDX
Various LEDs, including
If you have a
the Warning (
Monarch LCS
Note When you power off the Monarch, the device maintains the previously-selected IP mode.
Step 2 -- Connecting to a network and finding the IP address
Option 1 -- Connecting to a network with a DHCP server
A DHCP-enabled network will assign the Monarch an IP address. Use one of these methods to find the address:
• HDMI Monitor Connect an HDMI monitor to the Monarch's HDMI output, and then power up the
device. The IP address is displayed on-screen for 30 seconds before the passthrough signal is displayed.
• USB device Connect a USB device to the Monarch's USB 2 port, and then reboot the device. The device's
current IP address and status will be automatically copied to the USB device as a .txt file.
• Matrox Monarch Utils Use the Monarch Utils application (available for HD, HDX, and LCS on both
Mac OS and Windows). This is useful when you are not physically near the device:
Connect an Ethernet cable from the Monarch's LAN port to a network port.
a
Download the appropriate Matrox Monarch Utils (HD, HDX, or LCS) from the Matrox website at
b
www.matrox.com/video/support, and then copy it to a computer on the same subnet as your Monarch device.
Run the Utils application file to open the application. If Universal Plug and Play (UPnP) is enabled on your
c
network, Utils will automatically scan for Monarch devices. To scan manually, click the Find All button.
• Matrox Monarch LCS Radar Matrox Monarch LCS users can download the Matrox Monarch LCS
Radar monitoring application and its accompanying documentation from www.matrox.com/video/support.
Matrox Monarch Device Setup
DHCP
(Default behavior)
All LEDs illuminate
)LED,
flash on and off
)LED,
flash on and off
*To set to Static IP
(Optional)
After the Record LED flashes
for three (3) seconds, press the
RECORD button on the device.
After the Encoder 2 LED flashes
for three (3) seconds, press the
ENCD 2 button on the device.
After the ENCD LED flashes
for three (3) seconds, press the
ENCD button on the device.
Monarch is ready
to use when...
All LEDs are off except for
Power ( ), Stream,
Record, and USB 1
The Warning ( ) LED
stops flashing. If the
Warning LED remains
on, consult the user
guide for your Monarch
device for information.
