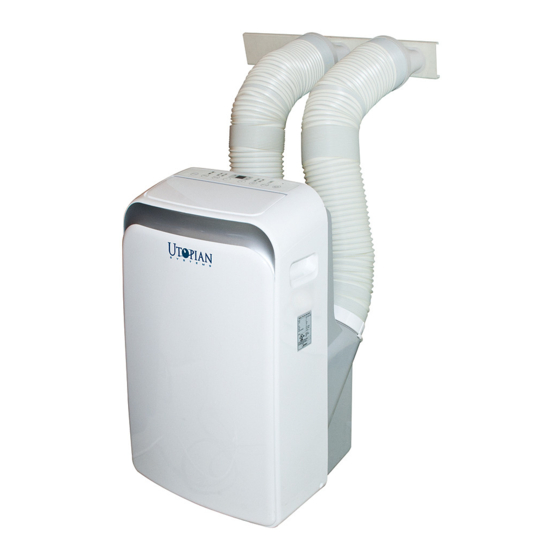

Utopian Systems Portable A/C Instructions Manual
  1. Manuals
  2. Brands
  3. Utopian Systems Manuals
  4. Air Conditioner
  5. Portable A/C
  6. Instructions manual

Utopian Systems Portable A/C Instructions Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
WARNING
To prevent electric shock, serious personal injury or damage to equipment or other property,
• Ensure the power source meets the requirements listed on the specification label.
• Do not modify the power cord or operate the unit with an extension cord.
• Do not operate the unit if the cord or plug becomes damaged.
• Do not operate without proper electrical ground.
• Do not operate near a heat source.
• Do not operate near gas appliances, open flame or combustible liquid.
• Do not operate where water may be spilled or sprayed on the unit.
• Operate, move and store the unit upright at all times.
• Allow at least 10" of space around the unit for proper ventilation.
• Ensure there are no obstructions around the openings of the intake and exhaust hoses.
• Do not climb or sit on the unit.
• The room temperature where the unit is operating must be between 62ºF and 95ºF.
• Operate the unit indoors only.
• Disconnect the unit from the power source if not in use for a prolonged period of time.
• Disconnect the unit from the power source before cleaning or servicing.
• Do not use solvent on plastic parts or pour water directly on the unit.
• Do not attempt to repair the unit. Any unauthorized attempt to repair the unit will void the warranty.
• Do not operate this device beyond the usage indicated in this manual. The manufacturer is not responsible for
damage caused by inappropriate operation of this device.
Portable A/C
READ AND SAVE THESE INSTRUCTIONS
Specifications
BTU: 12,000
Volts: 115
Watts: 1,355
Amps: 11.8
Hertz: 60
Moisture Removal: 7.6 gal./day
CFM (Low/Med/High): 233/253/282
Operating Temperature: 62ºF to 95ºF
Noise Level (Low/Med/High): 52.9/53.7/55.5 dB
Refrigerant: R410A
Net Weight: 70.5 lbs.
Dimensions: 18.39" x 18.54" 30.12"
REV 042016

Advertisement

loading
Need help?

Need help?

Do you have a question about the Portable A/C and is the answer not in the manual?

Questions and answers

Kecia
June 18, 2025

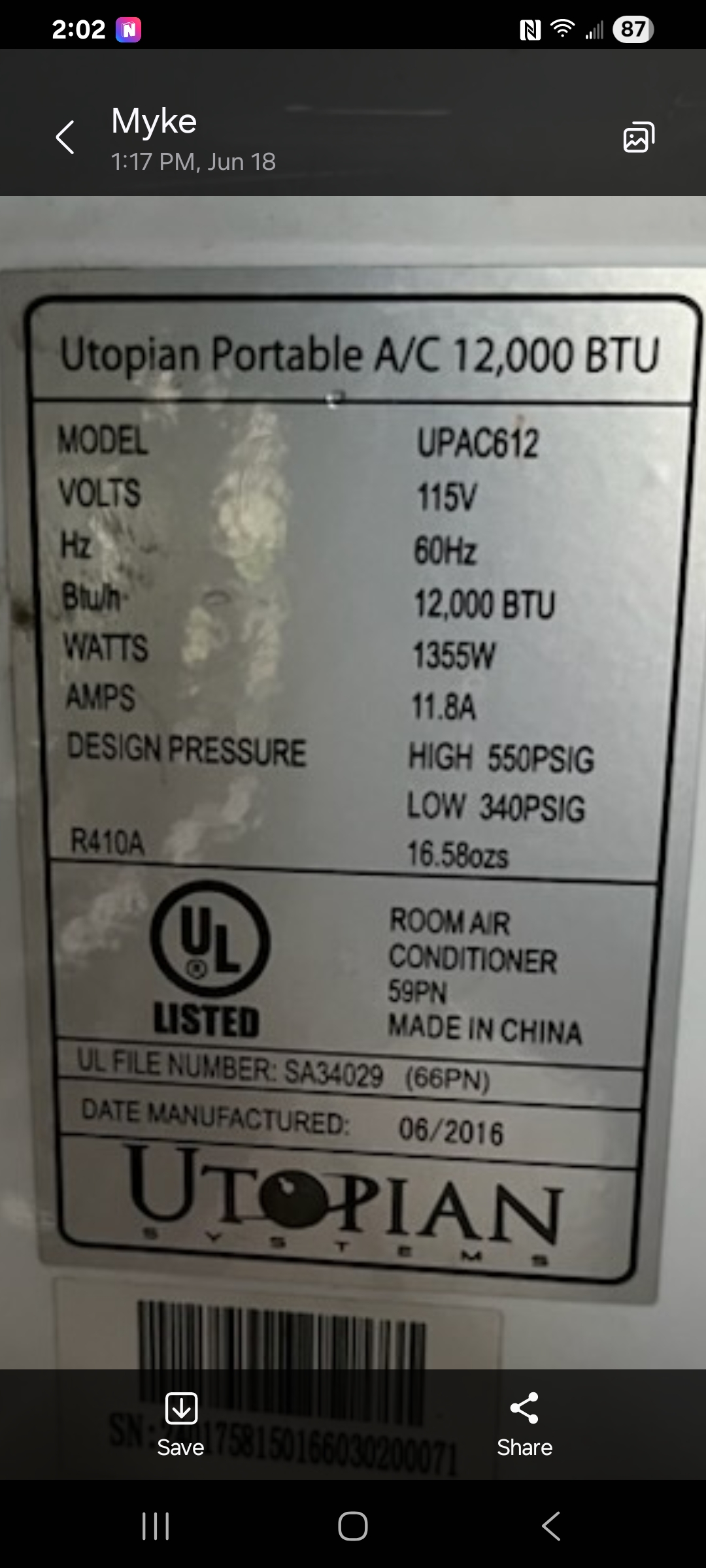

Need replacement hoses for model #UPAC612

User image 6852ff97cb584
0

Related Manuals for Utopian Systems Portable A/C

Summary of Contents for Utopian Systems Portable A/C

  • Page 1 Portable A/C READ AND SAVE THESE INSTRUCTIONS Specifications BTU: 12,000 Volts: 115 Watts: 1,355 Amps: 11.8 Hertz: 60 Moisture Removal: 7.6 gal./day CFM (Low/Med/High): 233/253/282 Operating Temperature: 62ºF to 95ºF Noise Level (Low/Med/High): 52.9/53.7/55.5 dB Refrigerant: R410A Net Weight: 70.5 lbs.

  • Page 2: Parts List

    Parts List 1 Portable A/C unit 1 Remote controller with batteries 3 Foam seals SET TEMPERATURE( F) AUTO COOL HIGH HEAT TEMP MODE ON/OFF FAN SPEED SWING ECONOMY TIMER ON TIMER OFF RESET LOCK DISPLAY 2 Exhaust/intake hoses and adapters...

  • Page 3: Window Kit Installation

    Window Kit Installation Double-hung sash window Foam seal Foam seal Window slider kit Cut the foam seal to the width of Insert the window slider kit into the Cut the foam seal to the width of the the window and attach it to the window frame.
  • Page 4 Hose and Adapter Installation 1. Place the unit upright on a stable surface to minimize Hose seat Hose seat noise and vibration. 2. Install the hoses by twisting Hook them counterclockwise into the adapters until secure. 3. Slide the hose adapters onto the Hook hose seats on the back of the unit.
  • Page 5 Unit and Remote Functions Remote Controller Only 9. Reset button: SET TEMPERATURE( F) Press to cancel all current settings and return the controller AUTO to factory settings. HIGH COOL 10. Lock button: Press to lock all current settings and temporarily disable all HEAT buttons except the Lock button.
  • Page 6 Operating Instructions Timer Operation 1. While the unit is ON, press the Timer button until the Timer-OFF light illuminates. To set the auto-OFF time, a. Use the Up and Down buttons to adjust the timer settings in half-hour increments up to 10 hours and one-hour increments up to 24 hours.

  • Page 7: Warranty

    The original proof of purchase MUST accompany the Utopian Systems product for this warranty to be valid. This warranty is given in lieu of all other warranties, express or implied, including without limitation merchantability and fitness for a particular purpose.
