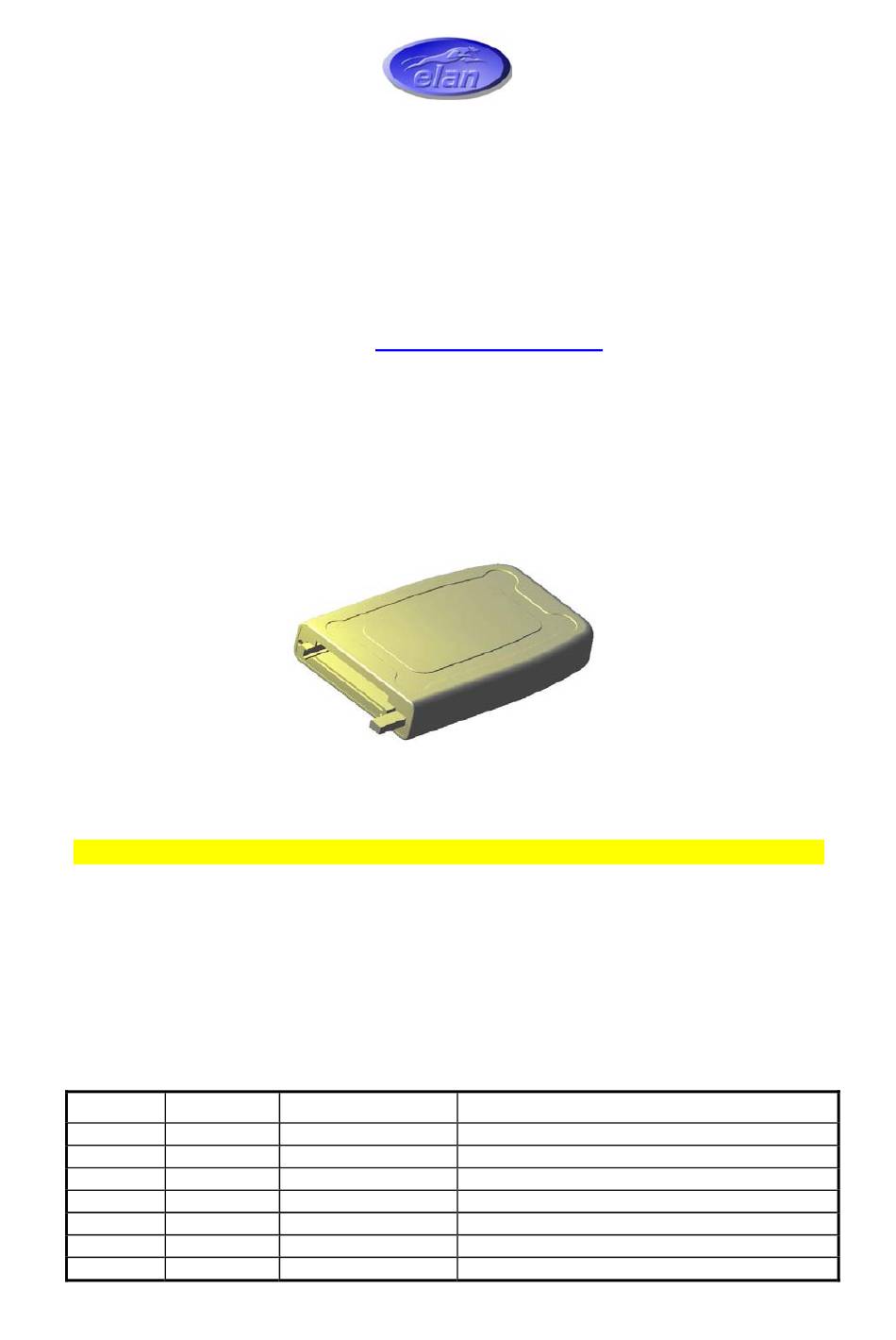

U132 USB Cardbus Card Adapter
User's Guide
ES385
Important Notice: Please refer to Safety Data 4.4, before using this equipment
All Trademarks are duly acknowledged.
REVISION HISTORY
ISSUE
PAGES
DATE
NOTES
1
12
14/03/2006
FIRST ISSUE
1
Elan Digital Systems Ltd.
U132 USER'S GUIDE ES385 Iss1

Advertisement

loading
Need help?

Need help?

Do you have a question about the U132 and is the answer not in the manual?

Questions and answers

Summary of Contents for ELAN DIGITAL SYSTEMS U132

  • Page 1 HANTS. PO15 5SJ. TEL: (44) (0)1489 579799 FAX: (44) (0)1489 577516 e-mail: support@pccard.co.uk website: http://www.pccard.co.uk U132 USB Cardbus Card Adapter User’s Guide ES385 Important Notice: Please refer to Safety Data 4.4, before using this equipment All Trademarks are duly acknowledged. REVISION HISTORY...

  • Page 2: Table Of Contents

    CONTENTS OVERVIEW....................4 USB PC CARD ADAPTER PACK CONTENTS ........5 INSTALLATION..................6 HARDWARE SPECIFICATION ............... 11 POWER REQUIREMENTS ............... 11 MECHANICAL .................... 11 ENVIRONMENTAL..................11 SAFETY DATA .................... 12 Elan Digital Systems Ltd. U132 USER’S GUIDE ES385 Iss1...
  • Page 3 Elan assumes no liability for any direct or indirect losses arising from use of the supplied code. Copyright © 2006 Elan Digital Systems Ltd. Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 4: Overview

    1 OVERVIEW The U132 USB Cardbus Card Adapters are designed to provide a method of using a range of Cardbus cards via the USB port on a standard computer. The U132 specifically supports Wireless Modem 3G cards. These cards are offered by many mobile phone operators world-wide.

  • Page 5: Usb Pc Card Adapter Pack Contents

    2 USB PC CARD ADAPTER PACK CONTENTS The USB Cardbus Card Reader is shipped with the following items: • 1 * U132 USB Cardbus Card Adapter. • 1 * USB 2.0 cable. 1m long, fitted with type A and type B moulded connectors.

  • Page 6: Installation

    3 INSTALLATION Connect the supplied USB cable to the U132 adapter as shown below: Connect the other end of the USB cable to a spare USB port on your computer. Windows will detect the U132 and launch the ‘Found New Hardware Wizard’.
  • Page 7 'No, not this time'. Insert the USB Cardbus Card Adapter Installation CD-ROM into your CD-ROM drive. Now select 'Install the software automatically'. Click 'Next' and wait for the software to install. Elan Digital Systems Ltd. U132 USER’S GUIDE ES385 Iss1...
  • Page 8 When it has finished click 'Finish'. Because the U132 is a USB Composite Device, the “Found New Hardware” process will need to be performed twice. Again, when asked, do not allow connection to the Internet. Elan Digital Systems Ltd. U132 USER’S GUIDE ES385 Iss1...
  • Page 9 Now select 'Install the software automatically'. Click 'Next' and wait for the software to install. When it has finished click 'Finish'. Elan Digital Systems Ltd. U132 USER’S GUIDE ES385 Iss1...
  • Page 10 The U132 USB Cardbus Adapter installation is now complete. The adapter can now be used with the appropriate Cardbus cards. Refer to the documentation for these cards for the appropriate installation instructions. Elan Digital Systems Ltd. U132 USER’S GUIDE ES385 Iss1...

  • Page 11: Hardware Specification

    If more current is required, the optional external power connection must be used. However, the total current drawn through the external power input must not exceed 1A. Hence, the PCMCIA card cannot consume more than 940mA. Note: A mains adapter is not supplied with the U132 adapter. 4.2 MECHANICAL Mass: 130g typ.

  • Page 12: Safety Data

    This includes situations were condensation has formed on the unit due to sudden temperature or humidity changes. Never use a USB cable that is damaged or has insufficient or incomplete insulation. Only use USB 2.0 cables. Elan Digital Systems Ltd. U132 USER’S GUIDE ES385 Iss1...
