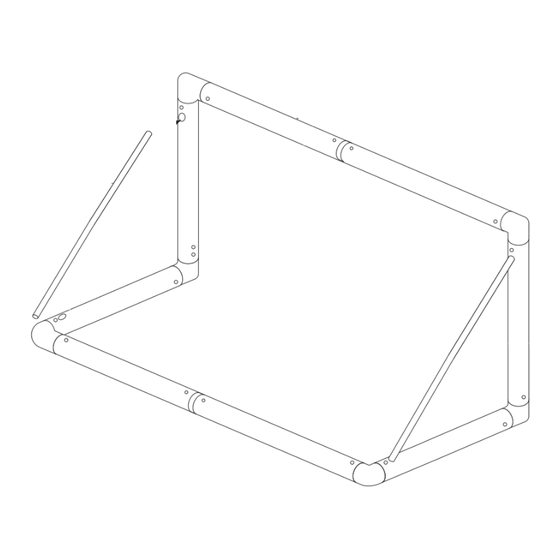

8' x 4' MATCH GOAL
8' x 4' (244cm x 122cm)
COMPONENT LIST
A
B
C
D
E

IMPORTANT SAFETY INSTRUCTIONS

1. Always inspect the goal post and net for defects before use and replace damaged parts in accordance with
BS 8461:2005 code of practice.
2. Do not use goal with faulty parts.
3. The goal must always be secured to the ground. Weights to be used on hard surface, ground anchors on grass.
4. Never climb on the net or the goal frame.
5. The goal must never be used without the net fitted.
Please adhere to the safety instructions at all times
Please refer to the Football Association web site (www.thefa.com) and British Standards for the
recommended safety procedures.
WARNING
1.When the goal is not being used, follow the storage instructions, fold the goals to be stored in a secure area.
2.Use caution when folding the goals and keep fingers away from moving components.
3.This goal has been independently tested and complies with BS 8462:2005+A2:2012.
4.Not suitable for children under 3 years old due to small parts i.e. quick clips and length of cord.
5.Never allow children to fold or store the goals.
6.It is recommended that the goal is assembled by an adult.

ASSEMBLY INSTRUCTIONS

USING THE CONNECTORS
Use the tube and connector together as illustrated.
ALSO CONTAINS:
1x NET + 1x GOAL BAG
2x
2x
6x
4x
F
2x
G
5x GROUND ANCHORS
2x
H
1x BAG - NET CLIPS
STEP 1 - BASE & CROSS BAR
BASE BAR
CROSS BAR
c
D

STEP 2 - BASE FRAME

B
F

STEP 3 - CORNER JOINTS

F
c
D
c
c
F
B
F
1
