STC 881-03X Installation Instructions

INSTALLATION INSTRUCTIONS
SAMURAI REPLACEMENT TOP
PART #881-03X
Thank you for purchasing Specialty's Convertible Top for your vehicle. It has been designed
for great fit and long wear. Please read and follow, precisely, all installation instructions pro-
vided when installing top. Failure to do so may result in a poor fitting top and could place
occupants in a potentially hazardous situation.

TOOLS REQUIRED:

1/8" DRILL BIT
ELECTRIC DRILL

INSTALLATION TIPS

Before you begin installing this top, here are a few tips to
make installation easier.
This top should be installed where the temperature
is above 72 degrees Fahrenheit. Below this temperature,
the top may contract making it difficult to install.
It is normal for a top to contract and wrinkle when
stored in the shipping carton. The top will relax and
wrinkles will disappear within a few days of installation as
fabric adjusts to shape of mounting hardware.
Step 1. Slip front edge of top into channel on top of
windshield frame. See figure 1. Flip top over vehicle and
rear support bow.
Step 2. With top in position over rear bow, mark and drill
1/8" hole centered on rear support bow. Install sheet metal
screw stud (Item 1) into hole drilled. Snap rear bow flap to
rear support bow. Using rear bow flap as a guide mark and
drill holes for remaining snaps . Install sheet metal screw
studs into holes drilled. Snap flap to rear support bow. See
figure 2. Slide sewn in plastic at front of side panels into
channels at rear of targa bar. Snap top to studs on body of
vehicle and to corners of windshield frame. Wrap flaps at
door opening around door pilar and press hook and loop
together. Wrap flaps at door openings around upper door
pilar and press hook and loop together.
Step 3. Place footman loops (Item 2) at rear corners of
vehicle. Mark and drill 1/8" holes using footman loops as
templates. Secure footman loops to body with # 8 x 1/2"
sheet metal screws (Item 3). See figure 3.
#2 PHILLIPS SCREWDRIVER
Step 4. For tops with zippered side panels, you will need to
install additional sheet metal screw studs (Item 1) to your
vehicle. Using bottom front of side panels as a guide, mark
and drill 1/8" holes. Install sheet metal screw studs and
snap top to studs.

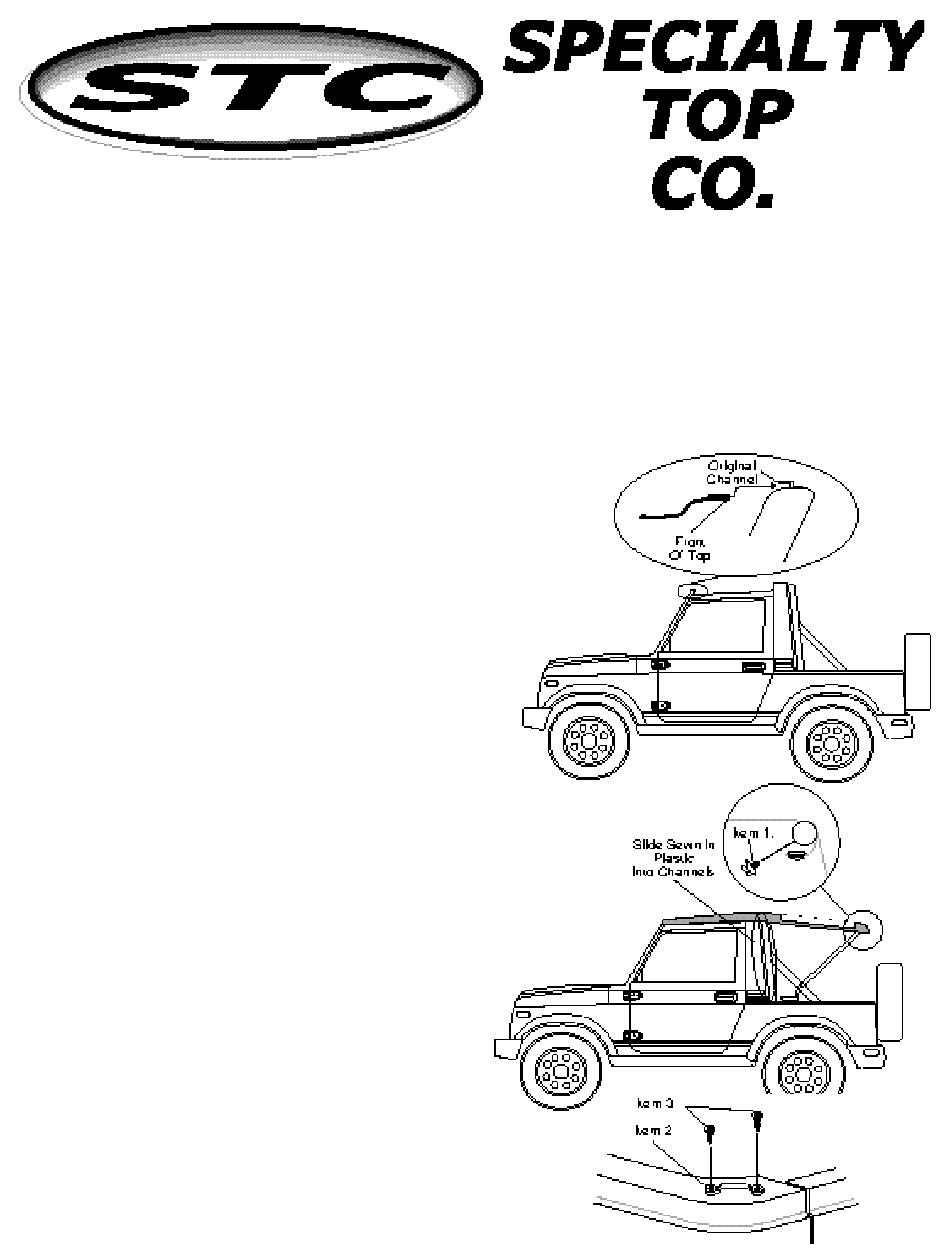

Figure 1
Figure 2
Figure 3
