An instructional video of the Operation of the Ottoman Lift Up system is available via YouTube using
the following address:
IMPORTANT: BEFORE STARTING TO ASSEMBLE THE BED - PLEASE READ THESE INSTRUCTIONS CAREFULLY.

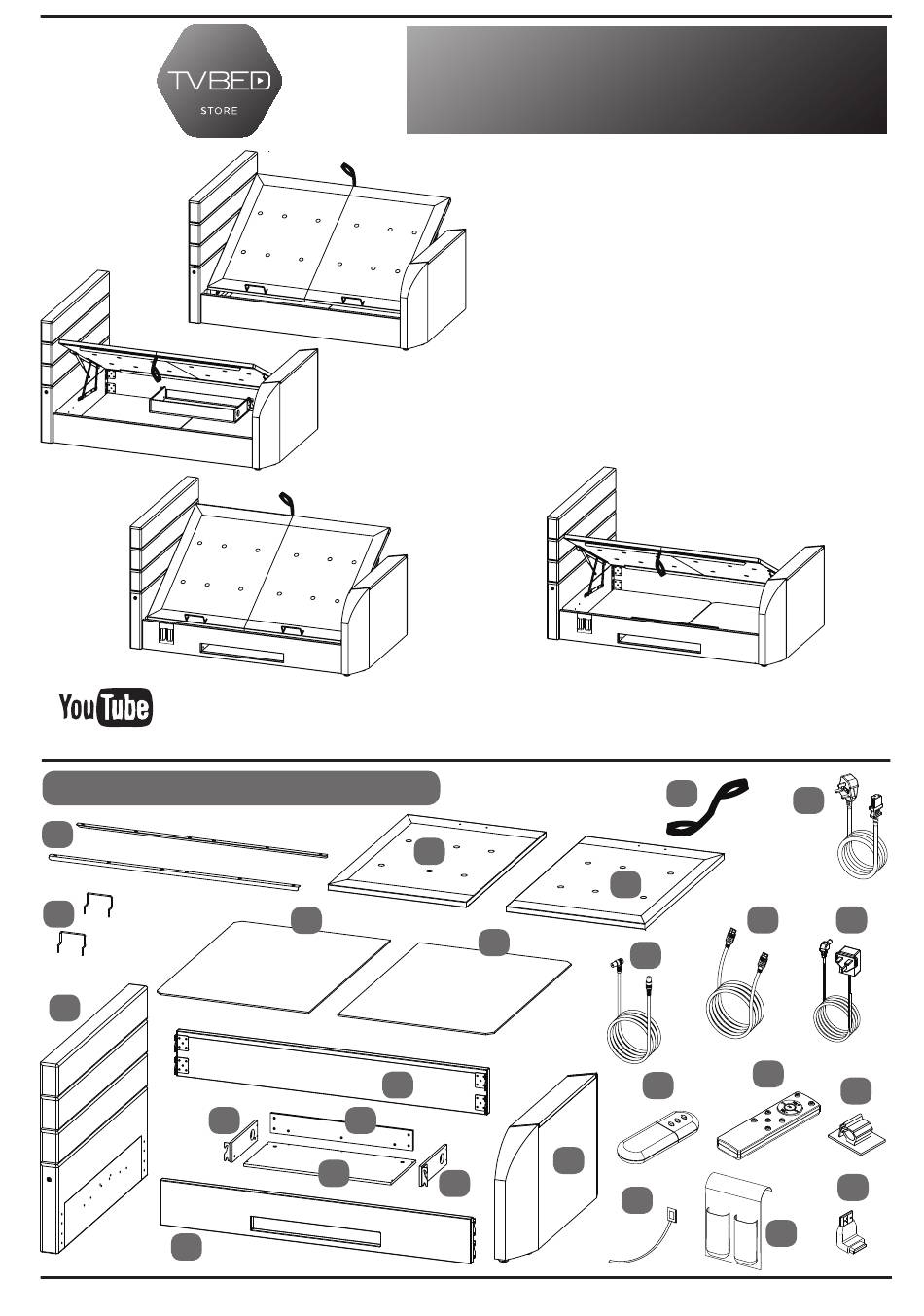

Parts Identification
7
8
1
9
3
190507
ANNECY OTTOMAN TV BED
5
13
4
11
12
10
Page 1 of 18
PLEASE READ this sheet prior to assembly to familiarise
yourself with the various stages of construction. Carefully
open the pack supplied and check the contents against the
parts and fittings check list.
Do not destroy any of the packaging until you are certain
that you have all the necessary parts for the assembly.
Please ensure that the packaging is disposed of in
a safe environmentally friendly way.
CAUTION: There are small components used in the
construction of this unit. These loose items should be
e k
t p
a
w
a
f y
o r
m
o y
u
n
g
h c
the danger of choking.
https://youtu.be/hyq4zm7h_yU
6
13
16
19
2
22
d l i
e r
n
d
r u
n i
g
s a
e s
m
b
, y l
o t
14
15
17
20
23
a
o v
d i
18
21
24
Advertisement
Summary of Contents for Annecy OTTOMAN TV BED
- Page 1 ANNECY OTTOMAN TV BED PLEASE READ this sheet prior to assembly to familiarise yourself with the various stages of construction. Carefully open the pack supplied and check the contents against the parts and fittings check list. Do not destroy any of the packaging until you are certain that you have all the necessary parts for the assembly.
-
Page 2: Parts Checklist
Parts Checklist Ref. Description Ref. Description Storage Base Boards Headboard Footboard Hand Strap Side Rail - With Media Tray Mains Power Lead - 3 mt Side Rail - Without Media Tray Aerial Lead - 4 mt HDMI Leads - 2.8 Mt Mattress Base Board - Headend USB Power Supply Mattress Base Board - Footend... -
Page 3: Additional Tools Required
Fittings Checklist HARDWARE FOR FITTING METAL SLAT FRA ME (PACK D) Ref. Description Ref. Description Bolts (M8x30mm) for Flange Lock-Nuts fitting metal support rails (7) (M8) for gas-lift pistons and gas-lift mechanisms (E) to mattress base boards (5&6). Spanner (for M8 nut) Spring Washers (for M8 bolts) Nut for fitting mattress stoppers (8) Flat Washers (for M8 bolts) - Page 4 Bed Assembly - Use Pack 'A&B' CHOOSE WHICH SIDE YOU WANT TO LIFT UP Stage LEFT E (a) E (b) CHECK THIS DIAGRAM AND IF ACCESS IS NEEDED FROM LEFT SIDE OF BED, FIT BOTH LIFT MECHANISMS TO RIGHT SIDE OF THE BED. BOLT INTO THE HOLES MARKED (R) WITH RED LABELS.
- Page 5 Bed Assembly - Use Pack 'A&B' Stage RIGHT E (a) E (b) CHECK THIS DIAGRAM AND IF ACCESS IS NEEDED FROM RIGHT SIDE OF BED, FIT BOTH LIFT MECHANISMS TO LEFT SIDE OF THE BED. BOLT INTO THE HOLES MARKED (L) WITH RED LABELS. THE MECHANISMS ARE LABELED E (a) &...
- Page 6 Bed Assembly - Use Pack 'B' Stage & Electrical & Cable Connections Stage Connect Main Power Lead (15) to your wall socket - for safety there must be an earthed power supply. Page 6 of 18...
- Page 7 Electrical & Cable Connections Stage Press the “UP” button to raise the TV lift. Note: For illustration purposes Stage only, TV connections may vary. TIP: TV Power Lead supplied with your TV BEFORE FITTING THE TV, PUSH CABLES THROUGH EACH DUCT FROM THE TOP. CHOOSE THE BEST SIDE TO USE DEPENDING ON WHERE THE CONNECTION PORTS...
- Page 8 TV Installation - Normal Vesa Fixing IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE Stage Screw-Washer sets Counter-Sunk Counter-Sunk Screws a x2 (M8x25mm). Use Screws (M4x12mm) (M6x12mm) 5mm Allen Key (D) b x2 Allen Key (4mm) Allen Key (2.5mm) Loosen Tighten Page 8 of 18...
- Page 9 TV Installation - Vesa 100 x100 Stage REMOVE CROSS-BRACKET 100mm AND FIX DIRECTLY TO BACK OF TV IF SCREWS ARE SUPPLIED WITH TV, PLEASE USE THOSE IN PREFERENCE Stage Screw-Washer Counter-Sunk Counter-Sunk Screws a x2 sets (M8x25mm) (M6x12mm) Screws (M4x12mm) Use 5mm Allen Key (D) b x2...
- Page 10 TV Installation Kit - Vesa 100x100 Stage Loosen Tighten Page 10 of 18...
- Page 11 Electrical & Cable Connections Note: For illustration purposes Stage only, TV connections may vary. REMOVE DUST-CAP OPTICAL TV Power Lead supplied with your TV 90º HDMI ADAPTER IF REQUIRED PLUG IN - KEEP ALL CABLES TIGHT - USE CLIPS & TIES PROVIDED. Keep wires tight - peel off cover from cable clips &...
-
Page 12: Bed Assembly
Electrical & Cable Connections Stage TV Power Lead supplied with your TV Press the “DOWN” button to lower the TV lift. Bed Assembly Stage IMPORTANT: Be careful to keep the two 2.8 mt HDMI Leads (17) on top of the Base Boards． Main power lead (15) and Aerial lead (16) should be kept under the base boards &... - Page 13 Bed Assembly - Use Pack 'B' Stage & 100% Media Tray Assembly- Use Pack 'C' Stage Page 13 of 18...
- Page 14 Media Tray Assembly - Use Pack 'C' Stage Stage Page 14 of 18...
- Page 15 Mattress Base Board Assembly - Use Pack 'D' Stage Stage & & Page 15 of 18...
- Page 16 Mattress Base Board Assembly - Use Pack 'D' Stage Stage SMALL GAP Page 16 of 18...
- Page 17 Mattress Base Board Assembly - Use Pack 'D' Stage Stage Note: Be very careful what you store under the bed - the top of an item, like a suitcase or a box, must not touch the slats or they shall be damaged.
- Page 18 TV BED SAFETY INFORMATION GENERAL INFORMATION It is very important not to place any vessel containing liquids, e.g. drinks or vase of flowers, on top of the TV footboard which may accidentally spill and enter the TV compartment as this could cause damage to the TV and/or the TV lifting equipment.
Need help?
Do you have a question about the OTTOMAN TV BED and is the answer not in the manual?
Questions and answers

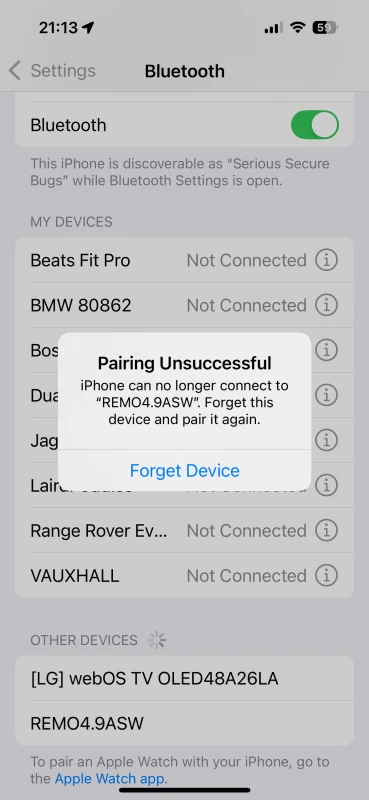

Hello, do you have an instruction manual for the speakers on the Annecy TV Bed? All I can get it to do is “Power On” & “Power Off” but I can’t get it to connect to my tv or music (pressing BT or OPT doesn’t do anything). When I try to connect my phone to it via Bluetooth I get a pairing unsuccessful message (attached). I’m stumped. Thanks Robert
